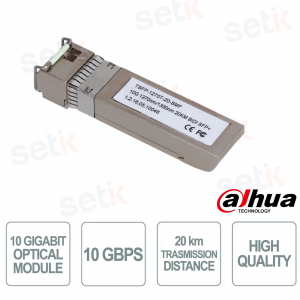

TSFP-1270T-20-SMF | 10 GIGABIT OPTICAL MODULE


Dahua

The Dahua TSFP-1270T-20-SMF is a single-fiber, single-mode 10 Gigabit optical module designed to ensure fast and stable data transmission over distances of up to 20 km. Thanks to plug-and-play technology, it is easy to install with no configuration required, making it perfect for telecommunications, security, and industrial infrastructure applications. Its rugged design and wide operating temperature range of –40°C to +85°C ensure maximum reliability even in extreme environments.

Main specifications:

- Speed: 10 Gbps

- Transmission: up to 20 km (1270 nm send / 1330 nm receive)

- Fiber: dual single-mode fiber

- Connector: LC

- Operating temperature: –40 °C / +85 °C

- Plug and Play installation

Further details

✅ Wide Operating Temperature:
 Designed to withstand the most extreme conditions, the module operates in a temperature range of –40°C to +85°C , maintaining high performance in harsh environments such as industrial sites, outdoor plants, or areas with significant temperature fluctuations. This feature ensures operational continuity and long life even in highly critical contexts.
✅ Plug and Play :
Thanks to Plug and Play technology, the module is easy to install without requiring complex configurations or additional software. Simply connect it to a compatible device to start transmitting immediately, simplifying the work of professionals and reducing setup times in corporate or industrial networks.

✅ Hardware:
 Featuring an LC port and single-mode fiber , the TSFP-1270T-20-SMF supports transfer rates of up to 10 Gbps . Its compact size ( 57.5 × 13.9 × 8.5 mm ) ensures optimal integration even in the smallest spaces, offering compatibility with the latest generation of switches and network devices.

 ✅ Performance :
 With a wavelength of 1270 nm for transmission and 1330 nm for reception , the module ensures stable and high-quality data transmission up to 20 km , with an operating humidity of 5% to 95% . Thanks to its optical precision and 10 Gbps speed, it ensures reliable and continuous communications even in high-traffic networks.

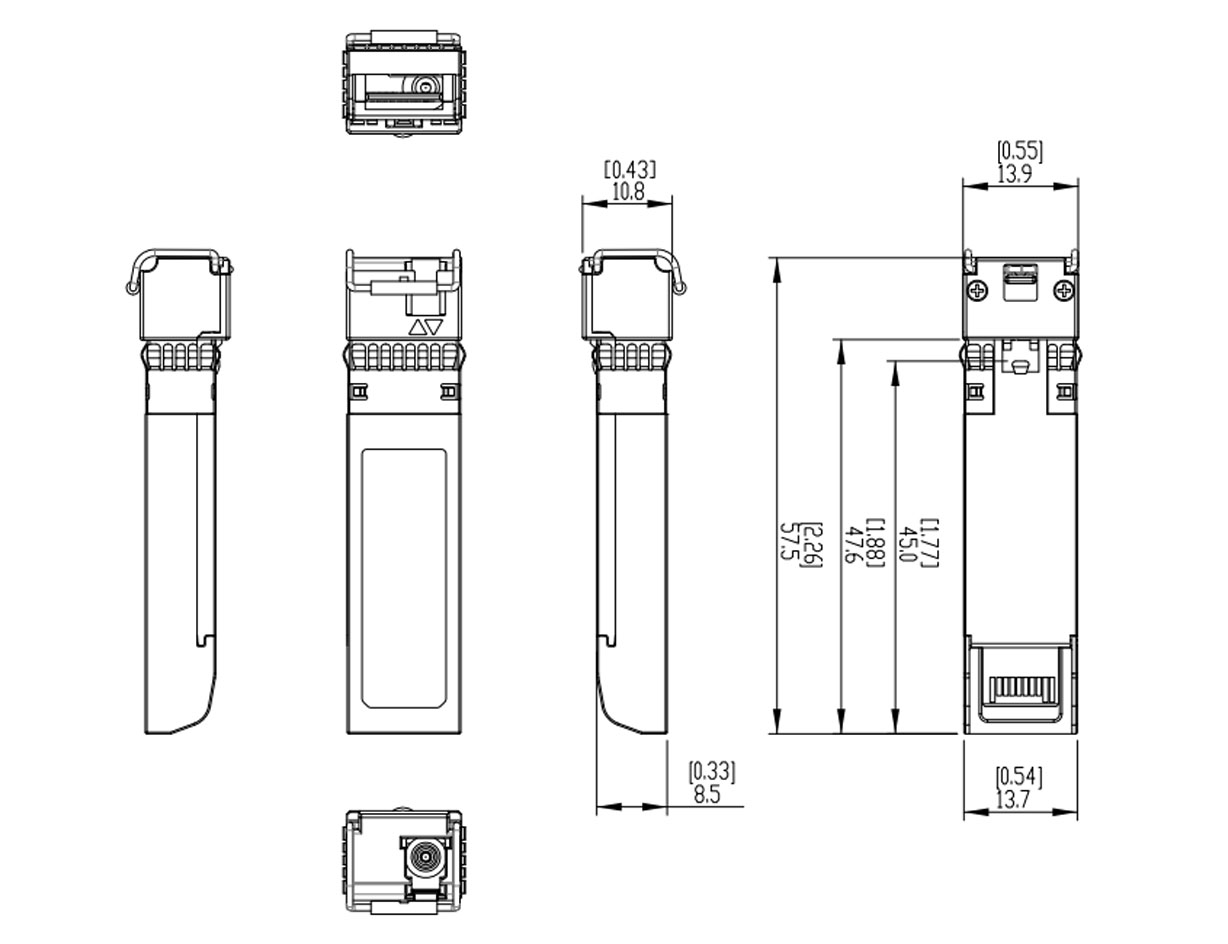

TSFP-1270T-20-SMF dimensions

Technical data sheet

Model TSFP-1270T-20-SMF
Hardware
Optical Fiber Type Single mode single fiber
Optical Port Type LC
Speed 10 Gbps

Performance
Wavelength 1270 nm sending; 1330 nm receiving
Transmission Distance 20 km
Operating Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Max. Speed of Optical Port 10 Gbps
Product Dimensions 57.5 mm × 13.9 mm × 8.5 mm (2.2" × 0.5" × 0.3")
