QSFP-850-MMF | SFP OPTICAL MODULE


Dahua

The Dahua QSFP-850-MMF is a high-performance 40 Gigabit optical module with dual multimode fiber and MPO connector, ideal for enterprise networks and high-density data applications. It provides transmission distances of up to 150 meters with OM4 fiber and supports a wavelength of 850 nm, ensuring stable and fast communication. Its rugged design and plug-and-play technology simplify installation, offering efficiency and reliability in industrial and professional environments.

Main specifications:

- Speed: 40 Gbps

- Transmission: up to 150 m (OM4)

- Fiber: dual multimode

- Connector: MPO

- Operating temperature: –0 °C / +55 °C

- Plug and Play installation

Further details

✅ Hardware:
 The module uses dual-mode optical fiber with an MPO connector , ensuring compatibility with high-density switches and network equipment. It supports transmission speeds of up to 40 Gbps and features a compact design ( 127 × 18.3 × 8.3 mm ) for easy installation even in small spaces. The hot-pluggable industrial architecture allows for quick replacement without interrupting network operation.

 ✅ Performance :
 Designed for sustained high performance, the QSFP-850-MMF operates at a wavelength of 850 nm and offers a transmission distance of up to 150 meters over OM4 cable (100 meters over OM3). It operates over a temperature range of 0°C to +55°C , with an operating humidity of 0% to 85% , maintaining signal stability and quality even in challenging environments. Its efficiency makes it ideal for data center, security, and telecommunications applications where speed and precision are essential.

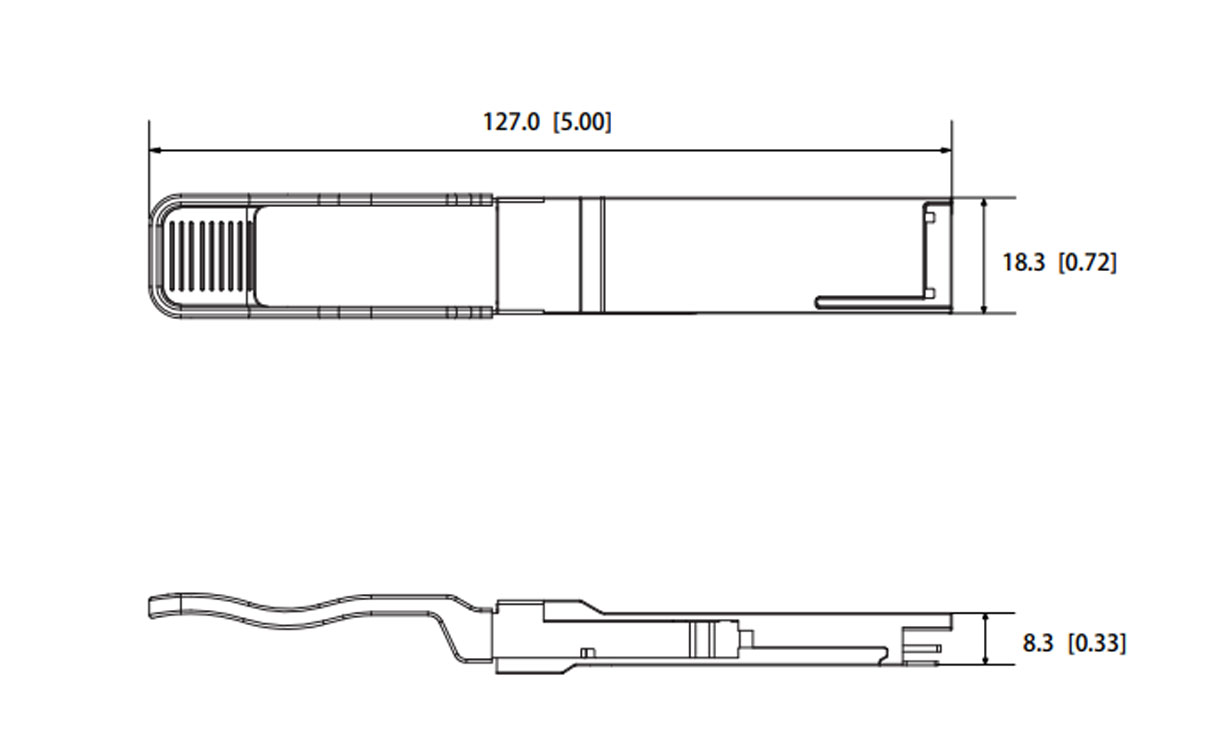

QSFP-850-MMF dimensions

Technical data sheet

Model QSFP-850-MMF
Hardware
Optical Fiber Type Multiple-mode double fiber
Optical Port Type MPO
Speed 40 Gbps

Performance
Wavelength 850 nm
Transmission Distance 100 m (328.08 ft)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 0%–85% (RH), non-condensing
Operating Temperature 0 °C to +55 °C (32 °F to +131 °F)
Storage Humidity 0%–85% (RH), non-condensing
Product Dimensions 127 mm × 18.3 mm × 8.3 mm (5.00" × 0.72" × 0.33")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
