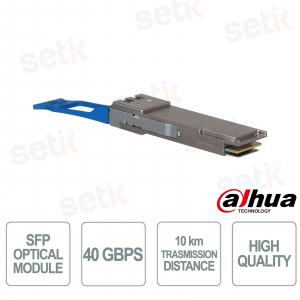

Dahua QSFP-1310-10-SMF Optical Module – 40Gbps Transmission Up to 10km, Professional Performance and Reliability

Dahua QSFP-1310-10-SMF Optical Module – 40Gbps Transmission Up to 10km, Professional Performance and Reliability

-57% nuevo

QSFP-1310-10-SMF - is a high-performance 40 Gigabit optical module, designed to ensure reliable and stable connections over single-mode and dual-mode fiber . Thanks to the LC connector and Plug and Play technology, it offers quick and easy installation, reducing configuration time. It supports data transmission up to 10 km at a wavelength of 1310 nm , ensuring efficiency and consistent quality. Its compact and rugged design, combined with a wide operating temperature range of –40 °C to +85 °C , makes it ideal for telecommunications, security and industrial network applications . Dahua

Technical Data Sheet

referencia : QSFP-1310-10-SMF

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

QSFP-1310-10-SMF | SFP OPTICAL MODULE


Dahua

The Dahua QSFP-1310-10-SMF is a high-performance 40 Gigabit optical module designed for reliable connections over single-mode and dual-mode fiber with an LC connector. Thanks to plug-and-play technology, it ensures quick installation and compatibility with professional network equipment. It supports transmission distances of up to 10 km at 1310 nm, offering stability and consistent performance even in challenging environments. Perfect for telecommunications, security networks, data centers, and industrial automation.

Main specifications:

- Speed: 40 Gbps

- Transmission: up to 10 km at 1310 nm

- Fiber: dual single-mode

- Connector: LC

- Operating temperature: –40 °C / +85 °C

- Plug and Play installation

Further details

Hardware:
The module uses dual-mode single-mode optical fiber with an LC connector , supporting speeds of up to 40 Gbps . Its hot-pluggable industrial design allows for quick and secure integration into existing network systems. Its compact size ( 120 × 18.35 × 8.5 mm ) facilitates installation in high-density connection environments, ensuring compatibility with latest-generation switches and network equipment.

Performance :
With a wavelength of 1310 nm , the QSFP-1310-10-SMF ensures stable transmissions up to 10 km with optimized power consumption. It is designed to operate over a wide temperature range of –40°C to +85°C , maintaining high performance even in extreme conditions. Its efficiency and low latency make it ideal for backbone connections, enterprise networks, and high-availability systems.

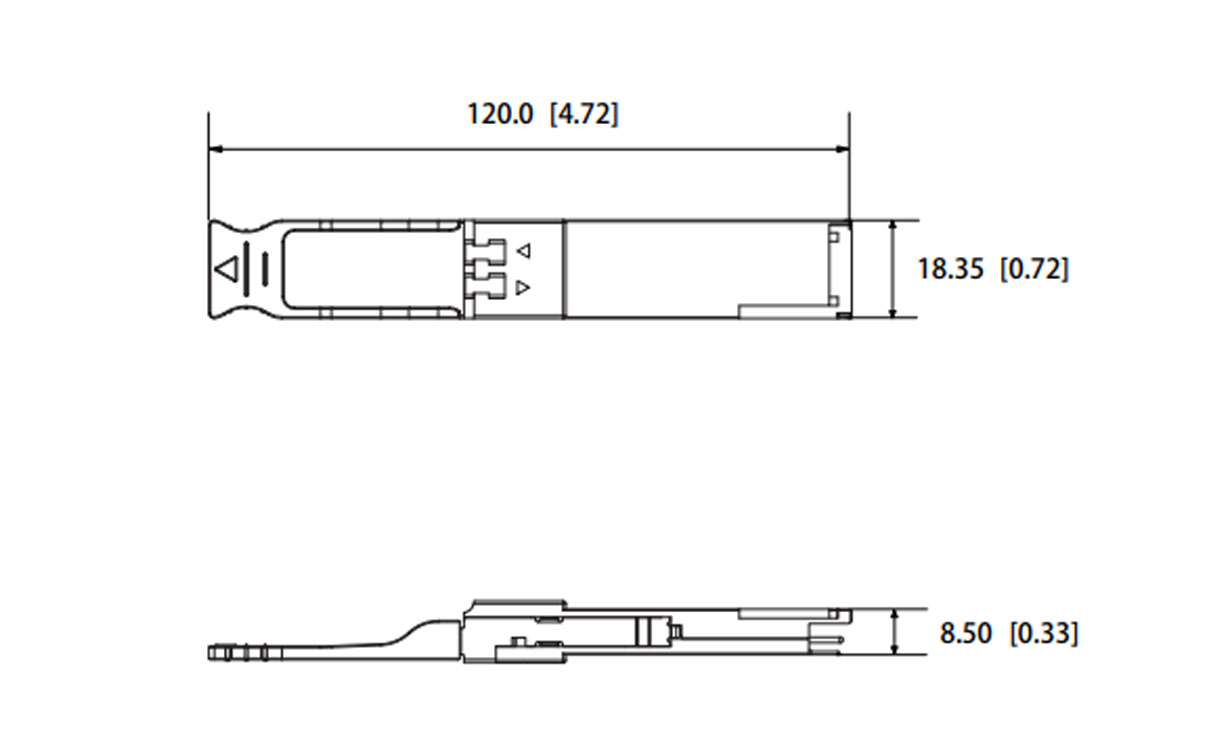

QSFP-1310-10-SMF dimensions

Technical data sheet

Model QSFP-1310-10-SMF
Hardware
Optical Fiber Type Single mode double fiber
Optical Port Type LC
Speed 40 Gbps

Performance

Wavelength 1310 nm
Transmission Distance 10 km (6.21 mi)
Storage Temperature –40 °C to +85 °C (–40 °F to +185 °F)
Operating Humidity 0%–85% (RH), non-condensing
Operating Temperature 0 °C to +55 °C (32 °F to +131 °F)
Storage Humidity 0%–85% (RH), non-condensing
Product Dimensions 120 mm × 18.35 mm × 8.5 mm (4.72" × 0.72" × 0.33")
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
