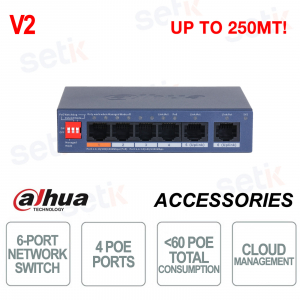

CS4006-4GT-60-V2 | 6 PORT CLOUD MANAGED NETWORK SWITCH WITH 4 POE PORTS - DAHUA


Dahua

The Dahua CS4006-4GT-60-V2 is a next-generation Gigabit PoE switch designed to ensure professional network management both locally and via the cloud, thanks to integration with the DoLynk Care platform. Equipped with 4 Gigabit PoE ports and 2 uplink ports, it offers a total power budget of 60 W with support for 802.3af/at and Hi-PoE standards, allowing stable power supply even to high-power devices. Intelligent management includes functions such as PoE Watchdog , loop protection , VLAN and extended mode up to 250 meters, while the metal body ensures durability, heat dissipation and surge protection up to 6 kV. Designed for professional environments and CCTV systems, the switch can quickly switch between managed and unmanaged mode, offering maximum operational flexibility.

Main specifications:

- 6 Gigabit ports, including 4 PoE with a total budget of 60 W

- Supports IEEE 802.3af/at and Hi-PoE, with port 1 up to 60W

- DoLynk cloud management and EasyConfig quick setup

- Smart functions: PoE Watchdog, loop protection, VLAN, LLDP

- Extended mode up to 250m over 10Mbps PoE

- Metal body with 6 kV surge protection

- Wide operating range: –10 °C / +55 °C

- Managed / Unmanaged mode selectable by DIP switch

Further details

✅ Number of doors:
Equipped with 6 Gigabit RJ-45 ports , including 4 PoE ports to power cameras and network devices and 2 uplink ports , ensuring efficient traffic management and stable connection to the higher nodes of the network.
✅ Cloud Management:
Fully manageable via the DoLynk Care platform, it allows real-time monitoring, remote configuration, immediate notifications of faults or anomalies and viewing of the device status, offering centralized control even from a distance.
✅ Network Topology Management:
With LLDP support, the switch automatically generates a topology map of the network, making it easy to quickly and intuitively troubleshoot, maintain, and manage connected devices.
✅ Long Distance PoE :
Each PoE port can reach up to 250 meters of transmission (at 10 Mbps), exceeding standard limits to power remote cameras or devices without the use of extenders, ideal for large CCTV installations.
✅ PoE Watchdog :
It includes an intelligent system that constantly monitors the status of PoE ports and automatically reboots the port in the event of an IPC failure, reducing manual intervention and increasing system reliability.
✅ Performance :
With a switching capacity of 12 Gbps , 8.9 Mpps of packet forwarding, 9216 byte Jumbo Frame support and MTBF greater than 232 years , it guarantees high performance and stability even in complex and highly trafficked networks.

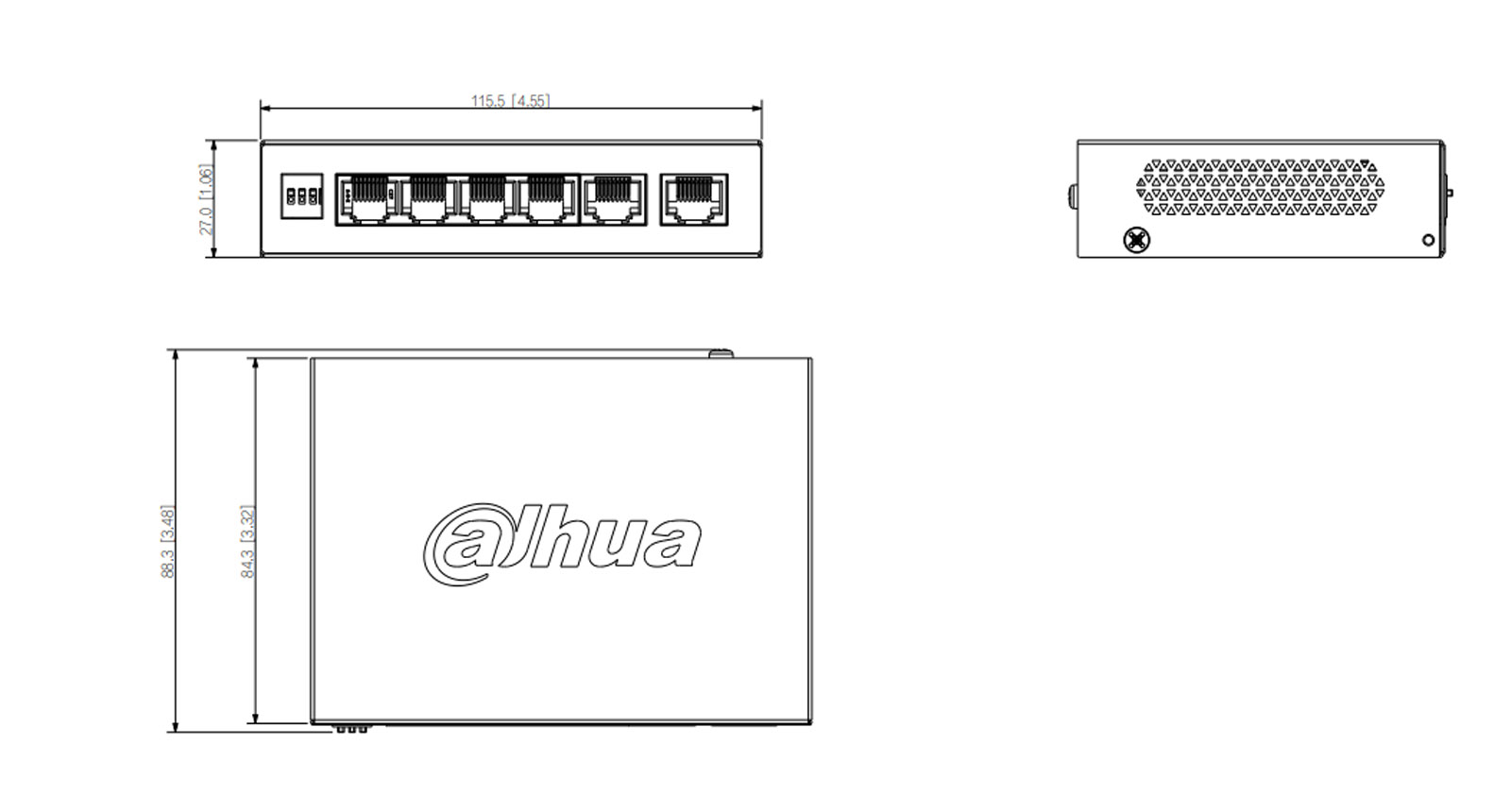

CS4006-4GT-60-V2 dimensions

Technical data sheet

PRODUCT CS4006-4GT-60-V2
Basic
Layer Layer 2
Switching Capacity 12 Gbps
Packet Forwarding Rate 8.9 Mpps
Description of Function Slots Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE);
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 0.8 A
Power Consumption Idling: ≤3 W
Full load: 65 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Net Weight 0.2 kg (0.44 lb)
Gross Weight 0.76 kg (1.68 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Packaging Dimensions 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
PoE
PoE Yes
PoE Power Port 2-4≤30W, port 1≤60W, total≤60W
PoE Protocol IEEE802.3af ; IEEE802.3at ; Hi-PoE
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected
PoE Pin Assignment 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode. PoE Watchdog: Monitors ports 1-4 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-4; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 232.62 years
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 2K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror N:1 Mirroring;
Local Port Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Adapter
1 × Power Cord
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
