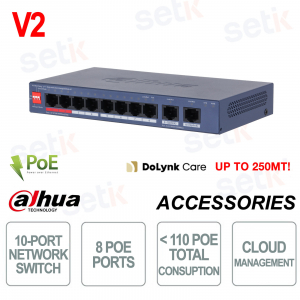

Cloud Managed PoE Switch CS4010-8GT-110 10 Gigabit Ports with 8 PoE 110W for Professional Networks - Dahua

Cloud Managed PoE Switch CS4010-8GT-110 10 Gigabit Ports with 8 PoE 110W for Professional Networks - Dahua

 
BEST PRICE -57% nuevo

CS4010-8GT-110-V2 The cloud-managed switch is an ideal professional solution for CCTV and IT networks thanks to its 10 total channels, including 8 Gigabit PoE and 2 Gigabit uplinks , designed to ensure stability, control and high performance. It features a total PoE power of 110W with 802.3af/at and 802.3bt support up to 90W on the high-power ports , making it perfect for high-power devices. Cloud and web management, combined with advanced features such as PoE Watchdog, VLAN, STP and Long Distance PoE up to 250m , ensures reliability and ease of configuration. The metal design and wide operating temperature range make it suitable for professional and industrial contexts. Dahua

Technical Data Sheet

referencia : CS4010-8GT-110-V2

brand : Dahua

EAN: 6937552480322

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4010-8GT-110-V2 | 10 PORT CLOUD MANAGED NETWORK SWITCH WITH 8 POE PORTS - DAHUA


Dahua

The Dahua CS4010-8GT-110-V2 switch is a 10-channel Gigabit PoE cloud-managed switch, designed for professional networks, video surveillance systems and IT infrastructures that require reliability and advanced control. It integrates 8 Gigabit PoE ports and 2 Gigabit uplink ports with a total PoE power of 110W , capable of powering high-power devices thanks to 802.3af/at and 802.3bt support up to 90W per port . Web and cloud management via the DoLynk platform , combined with intelligent functions such as PoE Watchdog, VLAN and Long Distance PoE up to 250m, ensures high performance, simplified maintenance and maximum operational stability even in complex professional environments.

Main specifications:

- 10 total channels with 8 Gigabit PoE ports and 2 Gigabit uplinks

- Total PoE power 110W with 802.3af/at and 802.3bt support

- Centralized cloud and web management with real-time monitoring

- PoE Watchdog for automatic reboot of connected devices

- Support for VLAN, STP, RSTP and link aggregation

- Long Distance PoE up to 250 meters for large installations

Further details

✅ Number of doors:
The switch features 10 total Gigabit channels , including 8 Gigabit PoE ports for direct powering of network devices and 2 Gigabit uplink ports , ensuring efficient data traffic management in professional networks and advanced video surveillance systems.
✅ Cloud Management:
Centralized cloud management via the DoLynk platform enables real-time monitoring , remote configuration, and complete control of device status, improving security and reducing operational intervention times.
✅ Network Topology Management:
With LLDP support, the switch can visualize the network topology , allowing for quick identification of anomalies and intelligent remote maintenance of the infrastructure.
✅ BT 90W (Red Port):
The high-power red ports support IEEE 802.3af/at, 802.3bt and Hi-PoE standards , providing up to 90W per port , ideal for powering PTZ cameras, access points and high-power devices .
✅ Long Distance PoE :
The Long Distance PoE function allows transmission up to 250 meters , making the switch perfect for large installations while maintaining reliability and continuity of power supply.
✅ PoE Watchdog :
The intelligent PoE Watchdog system constantly monitors port status and automatically reboots unresponsive devices , reducing downtime and manual maintenance costs.
✅ Performance :
 With 20Gbps switching capacity , 14.88Mpps packet forwarding and Layer 2 architecture, the switch ensures high performance, network stability and continuous reliability even in highly loaded professional environments.
CS4010-8GT-110-V2 dimensions

Technical data sheet

PRODUCT CS4010-8GT-110-V2
Basic
Layer Layer 2
Switching Capacity 20 Gbps
Packet Forwarding Rate 14.88 Mpps
Description of Function Slots Port 1-8: 8 × RJ45 10/100/1000 Mbps (PoE))
Port 9-10: 2 × RJ45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (–40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External Power Adapter（54V, 2.22A）
Power Consumption Idling: 5.7 W
Full load: 115 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 1.13 kg (2.49 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; rack mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-8≤30W, port 1-2≤90W, total≤110W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-)
Port 3-8：1,2,（V+）,3,6,（V-）
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 2,482,955 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 15360 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
