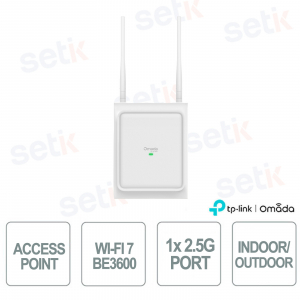

Omada EAP725-Outdoor Wi-Fi 7 BE3600 AP, Dual Band, 2.5G PoE+, IP66, antenne direz./omni, Mesh Cloud SDN

Omada EAP725-Outdoor Wi-Fi 7 BE3600 AP, Dual Band, 2.5G PoE+, IP66, antenne direz./omni, Mesh Cloud SDN

nuevo

The EAP725-Outdoor is a Wi-Fi 7 Access Point , a professional solution designed for indoor and outdoor environments, ideal for companies and installations in open spaces such as parking lots, swimming pools, or industrial areas. Thanks to dual-band 4-stream Wi-Fi 7 up to 3.6 Gbps (EU), it guarantees fast and stable connections even with many connected devices. It integrates interchangeable internal directional and external omnidirectional antennas with automatic detection to optimize signal coverage. The device has a 2.5G PoE+ port for power and data via a single cable, simplifying installation. The IP66 certification with 6 kV lightning protection and operation from -30°C to 70°C makes it perfect for extreme outdoor environments. It also supports Omada SDN cloud management, mesh networking, and seamless roaming for scalable and professional wireless networks. Omada

Technical Data Sheet

referencia : EAP725-Outdoor

brand : OMADA

EAN: 1210002610995

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


EAP725-Outdoor | ACCESS POINT WI-FI 7 BE3600 OUTDOOR/INDOOR


Made Omada

The TP-Link Omada EAP725-Outdoor Wi-Fi 7 Access Point is a professional solution designed to ensure high-performance wireless connectivity in indoor and outdoor environments such as companies, industrial areas, car parks and hospitality facilities. Thanks to dual-band 4-stream Wi-Fi 7 technology up to 3.6 Gbps , it offers high speeds, greater connection capacity and stability even with many connected devices. It integrates internal directional and external omnidirectional antennas with automatic detection , allowing you to optimize signal coverage based on the installation scenario. The 2.5G PoE+ port allows power and data via a single Ethernet cable, simplifying installation. The IP66 weatherproof design with 6 kV lightning protection ensures reliability even in extreme environmental conditions. It also supports Omada SDN, Mesh and Seamless Roaming cloud management for a scalable and centralized network.

Main specifications:

- Wi-Fi 7 Dual Band 4-Stream up to 3.6 Gbps

- Interchangeable internal directional and external omnidirectional antennas

- 2.5G Ethernet port with PoE+ support

- IP66 certified for water, dust and 6kV lightning protection

- Centralized management via Omada SDN Cloud

- Support Mesh networking and Seamless Roaming

Further details

Interchangeable directional and omnidirectional antennas:
The device integrates high-gain directional internal antennas and removable omnidirectional external antennas , allowing you to choose the most suitable mode to optimize Wi-Fi coverage, signal stability and network distribution based on the indoor or outdoor installation scenario.
Plug & Play antennas with automatic detection:
Thanks to Auto-Sensing Antennas technology , the access point automatically recognizes the presence of internal or external antennas and automatically switches the configuration , ensuring immediate installation and always optimized wireless performance without manual configurations .
High-performance 4-stream Wi-Fi 7:
Dual-band 4-stream Wi-Fi 7 (802.11be) technology offers increased throughput, reduced latency and efficient management of connected devices , enabling speeds of up to 3.6 Gbps in Europe and ensuring stable connections even in environments with high wireless traffic density.
Advanced Dual-Band Wireless Coverage:
Simultaneous support for 2.4 GHz and 5 GHz frequencies enables increased network capacity, improved device management, and wider Wi-Fi coverage , optimizing performance for both high-speed applications and legacy or IoT devices.
1 2.5G Ethernet port with PoE+:
The presence of a 2.5 Gigabit PoE+ (802.3at) port allows power and data to be transmitted via a single Ethernet cable , reducing cabling costs and facilitating installation even in outdoor environments or hard-to-reach places.
Weather resistance for outdoor installations:
The IP66 waterproof design with lightning protection up to 6 kV ensures reliability and continuous operation even in extreme environmental conditions , with operating temperatures from -30°C to +70°C .
Easy setup and quick installation:
The access point supports wall or pole mounting and integration with Omada SDN platform , enabling quick setup, automatic device discovery and centralized network management in just a few steps.
Advanced network and management features:
The system supports centralized cloud management, mesh networking, seamless roaming, WPA3 security and automatic network optimization , making it ideal for scalable, high-performance enterprise Wi-Fi infrastructures .

Technical data sheet

Model EAP725-Outdoor
HARDWARE FEATURES
Interface 1 x 10M/100M/1000M/2.5Gbps Ethernet Port (RJ45)
Key Reset
Diet 802.3bt/at PoE
Energy consumption 18.4W (for PoE+)
Dimensions (L x W x H) 8.19 x 6.3 x 2.17 in (208 × 160 × 55 mm)
Antenna 2.4 GHz:
2 × 4.5 dBi, external omnidirectional antennas
2 × 8.3 dBi, internal directional antennas (90° beamwidth antenna)
5 GHz:
2 × 5.3 dBi, external omnidirectional antennas
2 × 13.2 dBi, internal directional antennas (45° beamwidth antenna)
Note: The gains above are the single-antenna peak gains.
Bluetooth BLE 5.2
Weatherproof Enclosure IP66
Mounting type Pole/Wall Mounting (Kits included)
WIRELESS FEATURES
Wireless standards IEEE 802.11 a/b/g/n/ac/ax/be
Frequency 2.4 GHz, 5 GHz
Signal rate 688 Mbps (2.4 GHz) + 4324 Mbps (5 GHz)
Wireless functionality 4K-QAM‡
OFDMA
Multiple SSIDs: 16 (8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MLO
Omada Mesh§
Seamless Roaming(802.11k/v/r)§
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Static IP/Dynamic IP

Wireless Security Captive Portal Authentication△
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE
Transmission power EC: (EIRP)
2.4 GHz: 20 dBm
5 GHz: 23 dBm in U-NII-1, 23 dBm in U-NII-2A, 30 dBm in U-NII-2C
FCC: (Conducted Power)
2.4 GHz: 25 dBm
5 GHz: 26 dBm in U-NII-1, 24 dBm in U-NII-2A, 24 dBm in U-NII-2C, 26 dBm in U-NII-3
MANAGEMENT
Omada App Yes
Centralized Management Omada Central (Cloud-Based)
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requires the use of an Omada controller.
Email alerts Yes
MAC Access Control Management Yes
SNMP v1, v2c, v3
Local and remote system logs Yes
SSH Yes
Web-based management Yes
L3 Management Yes
Multi-site Management Yes
VLAN Management Yes
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
OTHER
Certification

CE, FCC, RoHS, IC, NCC, VCCI, JRF, BSMI

Package Contents

Access Point EAP725-Outdoor
Waterproof Kit
Installation Guide
Mounting Kits

System requirements

Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux

Environment

Operating Temperature: -30 to 70 ℃ (-22 to 158 ℉)
Storage Temperature: -40–70℃ (-40–158℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing

Weight

Main Unit: 1.33 kg
