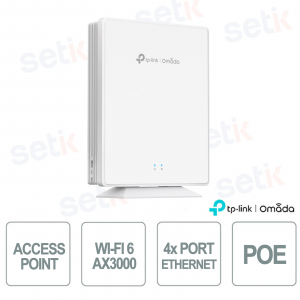

Omada EAP650-Desktop AX3000 Wi-Fi 6 Access Point, Dual Band 3.0Gbps, 4 Gigabit Ports, PoE, FXS VoIP, Cloud SDN Mesh Roaming
The EAP650-Desktop is an AX3000 Wi-Fi 6 Access Point designed to offer high-performance wireless connectivity in indoor environments such as offices, hotels and shops. Thanks to dual-band Wi-Fi 6 technology up to 3.0 Gbps, it guarantees high speeds, low latency and efficient management of numerous connected devices. It integrates advanced technologies such as OFDMA, MU-MIMO, 160 MHz and 1024-QAM for a stable and high-performance network even in high-density environments. It has 4 Gigabit Ethernet ports and 1 FXS port for VoIP , offering wired connectivity and telephone support. It supports 802.3af/at/bt or DC PoE power supply for flexible installations on a desktop or wall. It also integrates Omada SDN, Mesh and Seamless Roaming cloud management for a scalable and centralized business network. Omada
EAP650-Desktop | ACCESS POINT DESKTOP WI-FI 6 AX3000

The TP-Link Omada EAP650-Desktop AX3000 Wi-Fi 6 Access Point is a professional solution designed to offer reliable wireless coverage in indoor environments such as offices, hotels and shops. Thanks to dual-band Wi-Fi 6 technology up to 3.0 Gbps (2402 Mbps on 5 GHz and 574 Mbps on 2.4 GHz) it guarantees fast and stable connections even with many connected devices. OFDMA, MU-MIMO, 160 MHz and 1024-QAM technologies improve efficiency, capacity and reduce network latency. It integrates 4 Gigabit Ethernet ports and 1 FXS port for VoIP , allowing wired connections and IP telephony. It supports PoE 802.3af/at/bt or DC power for flexible installations on a desktop or wall. It also offers centralized management Omada SDN, Mesh and Seamless Roaming for scalable and high-performance business Wi-Fi infrastructures.
Main specifications:
- Wi-Fi 6 AX3000 Dual Band up to 3.0 Gbps
- Advanced OFDMA, MU-MIMO, 160 MHz and 1024-QAM technologies
- 4 Gigabit Ethernet ports with PoE In/Out support
- 1 FXS port for VoIP phones or analog faxes
- Support PoE 802.3af/at/bt or DC 12V power supply
- Omada SDN Cloud Management with Mesh and Seamless Roaming
- Supports up to 250+ devices with coverage up to 140m²
Further details
Technical data sheet
| Model | EAP650-Desktop |
| HARDWARE FEATURES | |
| Interface | 4× 1Gbps Ethernet Ports + 1× FXS Port (One Ethernet port supports PoE Out: 802.3at/af output at 802.3bt input, 802.3af class 2 output at 802.3at input) |
| Key | Reset LED |
| Diet | 802.3 af/at/bt PoE or 12V/1.5A DC PoE Out requires 802.3at/bt PoE power supply |
| Energy consumption | 17.3W (PoE Out Off) |
| Weight | 452g (excluding mounting base) |
| Dimensions (L x W x H) | 6.9 × 5.5 × 1.3 in (175 × 140 × 33 mm) |
| Antenna | Internal Omni 2.4 GHz: 2× 5 dBi 5 GHz: 3× 4.7 dBi |
| Coverage | 140㎡(1500 ft²)* |
| Mounting type | Desktop / Wall mouting (Kits included) |
| WIRELESS FEATURES | |
| Concurrent Clients | 250+* |
| Wireless standards | IEEE 802.11 a/b/g/n/ac/ax |
| Frequency | 2.4 GHz, 5 GHz |
| Signal rate | 5 GHz: 2402 Mbps† 2.4 GHz: 574 Mbps |
| Wireless functionality | 2×2 (2.4G & 5G) MU-MIMO‡ HE160 (160 MHz Bandwidth)‡ OFDMA Omada Mesh§ Seamless Roaming Multiple SSIDs (16 SSIDs, 8 on each band) Enable/Disable SSID Broadcast Enable/Disable Wireless Radio Guest Network Automatic Channel Assignment Beamforming Rate Limit (Based on SSID/Client) Band Steering Load Balance Airtime Fairness Transmit Power Control (Adjust Transmit Power on dBm) QoS (WMM) RADIUS Accounting MAC Authentication Reboot Schedule Wireless Schedule and Statistics Static IP/Dynamic IP |
| Wireless security | Captive Portal Authentication△ Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients VLAN Rogue AP Detection 802.1X Support WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise, OWE |
| Transmission power | THERE IS: <20 dbm="" 2="" 4="" ghz="" eirp="" br=""> <23 dbm="" 5="" ghz="" band1="" band2="" eirp="" br=""> <29 dbm="" 5="" ghz="" band3="" eirp="" br=""> FCC: <26 dbm="" 2="" 4="" ghz="" br=""> <27 dbm="" 5="" ghz="" td=""> |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | Omada Central (Cloud-Based) Omada Hardware Controller Omada Software Controller |
| Cloud Access | Yes. Requires the use of an Omada controller. |
| Email alerts | Yes |
| LED ON/OFF | Yes |
| MAC Access Control Management | Yes |
| SNMP | v1, v2c, v3 |
| Local and remote system logs | System Log |
| SSH | Yes |
| Web-based management | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHER | |
| Certification |
CE, FCC, RoHS, IC |
| Package Contents |
EAP650-Desktop |
| System requirements |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows11, Linux |
| Environment |
Operating Temperature: 0–40℃ (32–104℉) |
