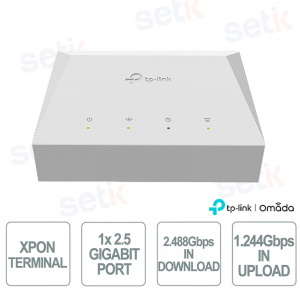

XZ005-G6 XPON Terminal with 2.5GE LAN Port, 2.488Gbps GPON, OMCI Management for High Performance FTTH Fiber

XZ005-G6 XPON Terminal with 2.5GE LAN Port, 2.488Gbps GPON, OMCI Management for High Performance FTTH Fiber

nuevo

The XZ005-G6 is an XPON terminal with a 2.5 Gigabit LAN port designed for high-performance FTTH (Fiber-to-the-Home) solutions, ideal for making the most of fiber optic connectivity. Thanks to GPON support with speeds of up to 2,488 Gbps download and 1,244 Gbps upload , it guarantees fast and stable data transfers for high-bandwidth services. The presence of the 2.5GE Ethernet port allows ultra-fast wired connections to routers or network devices. It also integrates remote management via OMCI and advanced protocols , facilitating configuration and monitoring by operators. Compatibility with ITU-T G.984 standards, AES security and IPv4/IPv6 support make it a reliable and scalable solution for modern fiber network infrastructures. Omada

Technical Data Sheet

referencia : XZ005-G6

brand : OMADA

EAN: 4895252500042

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


XZ005-G6 | XPON TERMINAL WITH A 2.5GE LAN PORT


Made Omada

The TP-Link XZ005-G6 is an XPON terminal with 2.5GE LAN port designed for high-performance Fiber-to-the-Home (FTTH) networks, ideal for ensuring fast and stable fiber optic connections. It supports GPON/EPON technology with speeds of up to 2.488 Gbps download and 1.244 Gbps upload , meeting the needs of high-bandwidth services. The presence of the 2.5 Gigabit Ethernet port enables ultra-fast data transfers to routers or network devices. It also integrates remote management via OMCI and Telnet , security functions with AES encryption and IPv4/IPv6 support, offering a reliable and scalable solution for modern network infrastructures.

Main specifications:

- XPON Terminal for FTTH networks designed for high-speed GPON/EPON fiber optic connections

- Speeds up to 2.488 Gbps downstream and 1.244 Gbps upstream for advanced broadband services

- 1 x 2.5GE (10/100/1000/2500 Mbps) LAN port for ultra-fast wired Ethernet connections

- Remote management via OMCI, Telnet and local management for configuration and monitoring by operators

- Advanced security with AES encryption and 802.1Q VLAN management for a more secure network

- Support IPv4 and IPv6 protocols with advanced features such as DBA, FEC and optical power detection for stable and reliable performance.

Further details

High-speed GPON access:
The terminal supports GPON technology with speeds of up to 2.488 Gbps download and 1.244 Gbps upload , ensuring extremely fast and stable fiber optic connections ideal for high-bandwidth services such as streaming, cloud and professional applications.
XPON Support:
Thanks to the compatibility with XPON standards (GPON and EPON) , the device can easily integrate with various fiber network infrastructures, offering greater flexibility for ISPs and operators and enabling use in multiple Fiber-to-the-Home (FTTH) scenarios.
2.5G wired connections:
The presence of the 2.5 Gigabit Ethernet LAN port (10/100/1000/2500 Mbps) allows for very high-speed wired connections to routers, PCs or switches , taking full advantage of the performance of the fibre network and reducing bottlenecks in data transmission.
Easy to use and quick installation:
Designed for quick activation in FTTH networks , the terminal integrates VLAN automatic detection and authentication functions via SN and password , facilitating configuration and integration into the network without complex procedures.
Advanced remote management:
Support for OMCI, Telnet, and local management allows operators to remotely activate, configure, and monitor the device , simplifying network maintenance and reducing operating time and costs.

Technical data sheet

Model XZ005-G6
HARDWARE FEATURES
Interface 1 PON Port
1× 2.5 Gigabit RJ45 LAN Port
Key 1× Power On/Off Button
1× Reset Button
External power supply 9VDC/0.6A
IEEE Standard IEEE 802.3, 802.3u, 802.1p, 802.1Q
Data transfer speed Downstream Speeds: 2.488 Gbps (GPON), 1.25 Gbps (EPON)*
Upstream Speeds: 1.244 Gbps (GPON), 1.25 Gbps (EPON)*
Wave Length Upstream: 1310 nm
Downstream: 1490 nm
Dimensions (L x W x H) 3.7 x 3.0 x 1.2 in. (95.0 x 75.0 x 29.3 mm)
Distance 0–20 km max
GPON Standard ITU-T G.988, G.984.1, G.984.2, G.984.3, G.984.4
Optical module Class B+
Receiver Super-TIA
Transmitter DFB Laser
SOFTWARE FEATURES
Advanced Features Upstream and Downstream FEC,
Dynamic Bandwidth Allocation(DBA) supports NSR/SR,
Up to 16 T-CONTs and 256 GEM Ports,
Optical power detection,
Dying Gasp,
Terminal Silent mechanism
VLAN 802.1Q tag VLAN, VLAN transparent mode/VLAN translation mode/VLAN trunk mode,
Authentication based on SN and Password, VLAN Auto Detect
Safety AES Encryption, Packet Filter based on VLAN
Management Local management: WebGUI, Telnet
Remote management: OMCI
IGMP IGMP v1/v2/v3
OTHER
Package Contents

1-Port 2.5GE LAN XPON Terminal XZ005-G6
Power Adapter
Quick Installation Guide

System requirements

Microsoft Windows 98SE/NT/2000/XP/Vista™/7/8/8.1/10, MAC OS, NetWare, UNIX or Linux
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
Subscription with an internet service provider (for internet access)

Certifications

CE, RoHS

Environment

Operating Temperature: 0℃–40℃ (32℉–104℉)
Storage Temperature:-40℃–60℃ (-40℉–140℉)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
