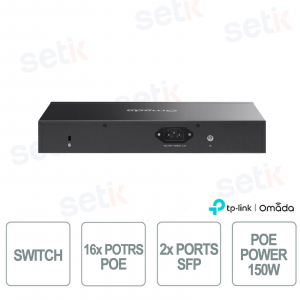

ES220GP 20-Port Gigabit Switch with 16 PoE+, 2 SFP Slots, SDN Cloud Management and 150W PoE Budget - Omada

ES220GP 20-Port Gigabit Switch with 16 PoE+, 2 SFP Slots, SDN Cloud Management and 150W PoE Budget - Omada

nuevo

The ES220GP is a 20-port Easy Managed Gigabit switch with 16 PoE+ ports designed for professional networks, video surveillance systems, and high-performance business infrastructure. It features 18 Gigabit RJ45 ports and 2 Gigabit SFP slots , offering flexible connectivity between Ethernet and fiber optic networks. With a total PoE budget of 150W with up to 30W per port , it can power access points, IP cameras, and VoIP phones directly via the network cable. It supports centralized cloud management via the Omada SDN platform , as well as advanced features such as VLAN, QoS, IGMP Snooping, and automatic loop prevention for a stable and secure network. The fanless metal design with desktop or rack installation ensures quiet operation, reliability, and easy installation. Omada

Technical Data Sheet

referencia : ES220GP

brand : OMADA

EAN: 1210002609746

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ES220GP | 20 PORT EASY MANAGED GIGABIT SWITCH WITH 16 POE+ PORTS


Made Omada

The TP-Link Omada ES220GP is a 20-port Easy Managed Gigabit switch with 16 PoE+ ports designed for business networks, IT infrastructures and professional video surveillance systems. It integrates 18 Gigabit RJ45 ports and 2 Gigabit SFP slots , offering flexible connectivity between Ethernet and fiber optic networks. Thanks to the total PoE budget of 150W with up to 30W per port , it can power access points, IP cameras and VoIP phones directly via network cable. It supports centralized cloud management via the Omada SDN platform with monitoring and configuration via web or app. The fanless metal design with desktop or rack installation ensures quiet operation, reliability and easy integration into modern network infrastructures.

Main specifications:

- 20 total Gigabit ports with 18 RJ45 ports (16 PoE+) and 2 Gigabit SFP slots for Ethernet and fiber optic connections

- 150W PoE budget with up to 30W per PoE+ port to power access points, IP cameras and VoIP phones

- Centralized cloud management via Omada SDN platform with configuration and monitoring via web or Omada app

- Advanced network features such as VLAN, QoS, IGMP Snooping and Port Isolation to optimize security and data traffic

- Extended PoE up to 250 m (820 ft) ideal for video surveillance systems and professional installations

- Fanless design with metal frame and desktop or rack installation for quiet operation and long-lasting reliability.

Further details

20 Gigabit ports for professional networks :
The switch offers 20 total network ports , including 18 Gigabit RJ45 ports and 16 PoE+ ports , designed to deliver fast and stable Ethernet connections up to 1 Gbps and allow simultaneous connection of access points, IP cameras, VoIP phones and business network devices.
2 Gigabit SFP Slot ports for fiber connections:
Thanks to the 2 dedicated Gigabit SFP slots , the switch allows for high-speed connections via fiber optics , improving integration with existing network infrastructures and ensuring greater scalability in corporate networks.
150W PoE power budget:
The device integrates a total PoE budget of 150W with up to 30W per PoE+ port , allowing you to directly power compatible devices via Ethernet cable and simplifying the installation of access points, video surveillance systems and network devices without additional power supplies.
Centralized Omada Cloud Management:
The switch supports centralized cloud management via Omada platform , allowing administrators to monitor, configure and control the entire network from a single web interface or app , with multi-site management and intelligent monitoring.
Extended PoE up to 250 meters:
With Extended PoE mode up to 250 m (820 ft), the switch allows you to power and connect IP cameras or network devices over long distances , making it particularly suitable for video surveillance systems and professional installations .
Automatic network loop prevention:
The Automatic Loop Prevention feature automatically detects and blocks potential Ethernet network loops , ensuring network stability, data traffic continuity, and IT infrastructure protection in professional environments.

Technical data sheet

Model ES220GP
HARDWARE FEATURES
Interface 18× 10/100/1000 Mbps PoE+ RJ45 Ports (16× 802.3af/at-compliant PoE+)
2× Gigabit SFP Slots
Auto-Negotiation/Auto MDI/MDIX
Number of fans Fanless
Installation Desktop/Rackmount
Physical security lock
Diet 100–240V AC, 50/60Hz 2.5A
PoE ports Standard: 802.3af PoE and 802.3at PoE+ compliant
PoE+ Ports: 16 Ports
PoE Budget: 150W available for all PoE+ ports, 30W max per port
Fast PoE & Perpetual PoE
PoE Auto Recovery‡
Up to 250m PoE transmission distance*
Dimensions (L x W x H) 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)
Surge Protection ±6kV
PERFORMANCES
Switching capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
ARP Table 8 K
Buffer (packets) 4 Mbit
Jumbo frame 15 KB
SOFTWARE FEATURES
QoS (Quality of Service) Port-based/802.1p/DSCP QoS
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow-based Rating Limiting
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control
L2 functionality

Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP

L2 Multicast

IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave

VLAN VLAN MTU
Port-Based VLAN
802.1Q VLAN Tag
Max 32 VLAN Groups
4K VID
Transmission method Store-And-Forward
MANAGEMENT
Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Unified Configuration†
OTHER
Certification CE, FCC, RoHS
Package Contents

ES220GP
Power Cord
Mounting Brackets
Installation Guide
Rubber Feet
Screws

Environment Operating Temperature: -5℃~40℃ (23°F~104°F)
Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
