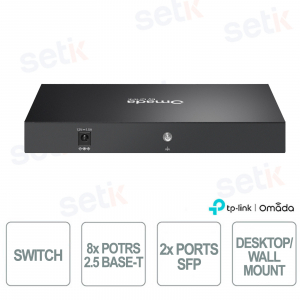

ES210X-M2 is a multi-gigabit switch with 8 2.5GBASE-T ports and 2 10Gbps SFP+ slots designed for high-performance networks in professional and enterprise environments. It offers connectivity up to 2.5 Gbps on RJ45 ports and ultra-fast fiber uplinks via 10G SFP+ ports , ensuring high data transfer capacity and scalability. It supports centralized cloud management via the Omada SDN platform , allowing network monitoring and configuration from the web or app. It integrates advanced features such as VLAN, QoS, Port Isolation, IGMP Snooping and automatic loop prevention , ensuring network stability and security. The fanless design with metal frame and desktop or wall-mounted installation ensures silent operation, reliability and integration into modern network infrastructures. Omada

Technical Data Sheet

referencia : ES210X-M2

brand : OMADA

EAN: 1210002600743

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ES210X-M2 | 8-PORT 2.5G BASE-T GIGABIT EASY MANAGED SWITCH WITH 2 SLOTS 10 GE SFP+


Made Omada

The TP-Link Omada ES210X-M2 is a multi-gigabit switch with 8 2.5GBASE-T RJ45 ports and 2 10Gbps SFP+ slots , designed for high-performance business networks and modern IT infrastructures. It offers connectivity up to 2.5 Gbps over Ethernet and ultra-fast fiber uplinks via 10G SFP+ ports , ensuring high data transfer capacity and scalability. Thanks to centralized cloud management via the Omada SDN platform , it allows network configuration, monitoring and control via web or app. It integrates advanced functions such as VLAN, QoS, Port Isolation, IGMP Snooping and automatic loop prevention , ensuring a stable and secure network. The fanless design with metal frame and desktop or wall-mounted installation ensures silent operation, reliability and integration into professional infrastructures.

Main specifications:

- 8 Multi-Gigabit 2.5GBASE-T RJ45 ports for high-speed Ethernet connections up to 2.5 Gbps

- 2 x 10 Gigabit SFP+ slots for high-performance fiber optic uplinks

- Centralized cloud management via Omada SDN platform with monitoring and configuration via web or app

- Advanced network features such as VLAN, QoS, Port Isolation, IGMP Snooping and Cable Test for network performance and security

- Automatic network loop prevention to maintain data traffic stability and continuity

- Fanless design with metal frame and desktop or wall-mount installation for quiet and reliable operation in professional environments.

Further details

8 x 2.5Gbps Multi-Gigabit Ports :
The switch integrates 8 RJ45 2.5GBASE-T ports , designed to offer Ethernet connections up to 2.5 Gbps , ideal for corporate environments with high-performance Wi-Fi access points, servers or workstations that require more bandwidth than traditional Gigabit networking.
2 Gigabit SFP Slot ports for fiber connections:
The presence of 2 SFP+ 10 Gigabit slots enables very high-speed uplink connections via optical fiber , ensuring greater network scalability and fast connections to core switches, NAS or high-performance network infrastructures.
Easy to use with plug-and-play setup:
Designed for easy, out-of-the-box installation , the switch supports plug-and-play for instant connectivity , allowing you to quickly get your network up and running and easily access advanced features through an intuitive management interface.
Centralized Omada Cloud Management:
With centralized cloud management via the Omada SDN platform , you can configure, monitor and manage your entire network infrastructure from a single interface , using a web browser or Omada app for efficient management even across multiple locations.

Technical data sheet

Model ES210X-M2
HARDWARE FEATURES
Interface 8× 2.5 Gbps RJ45 Ports
2× Gigabit SFP Slots
Auto-Negotiation/Auto MDI/MDIX
Number of fans Fanless
Installation Desktop/Wall Mount
Physical security lock
Diet DC Power Adapter (Output: 12 VDC / 1.5 A)
Dimensions (L x W x H) 8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)
Surge Protection ±6kV
PERFORMANCES
Switching capacity 80 Gbps
Packet Forwarding Rate 59.52 Mpps
ARP Table 8 K
Buffer (packets) 640 KB
Jumbo frame 10 KB
SOFTWARE FEATURES
QoS (Quality of Service) Port-based/802.1p/DSCP QoS
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow-based Rating Limiting
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control
L2 functionality

Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP

L2 Multicast

IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave

VLAN VLAN MTU
Port-Based VLAN
802.1Q VLAN Tag
Max 32 VLAN Groups
4K VID
Transmission method Store-And-Forward
MANAGEMENT
Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Unified Configuration†
OTHER
Certification CE, FCC, RoHS
Package Contents

ES210X-M2
Power Cord
Mounting Brackets
Installation Guide
Rubber Feet
Screws

Environment Operating Temperature: -5℃~40℃ (23°F~104°F)
Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
