ES206X-M2 | EASY MANAGED SWITCH 5 PORTS 2.5G BASE-T AND 1 PORT 10 GE SFP+

Made Omada

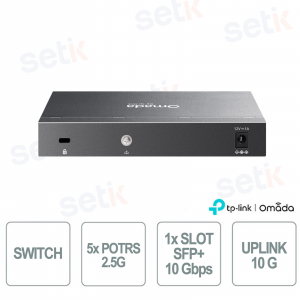

The TP-Link Omada ES206X-M2 is an Easy Managed multi-gigabit switch with 5 2.5Gbps RJ45 ports and 1 10Gbps SFP+ slot , designed for enterprise networks and high-performance infrastructures. It offers Ethernet connectivity up to 2.5GBASE-T for high-speed devices and 10G fiber uplinks for fast and scalable backbone connections. It supports centralized cloud management via the Omada SDN platform , allowing configuration and monitoring via web or app. It integrates advanced functions such as VLAN, QoS, Port Isolation, Cable Test and IGMP Snooping , improving stability, security and network traffic management. The fanless design with metal frame and desktop or wall-mounted installation ensures reliability, silent operation and integration into professional infrastructures.

Main specifications:

- 5 Multi-Gigabit 2.5 Gbps RJ45 ports for high-speed Ethernet connections up to 2.5GBASE-T

- 1 x 10Gbps SFP+ slot for high-performance fiber optic uplinks

- Centralized cloud management via Omada SDN platform with monitoring and configuration via web or Omada app

- Advanced network features such as VLAN, QoS, Port Isolation and IGMP Snooping to optimize traffic, security and stability

- Automatic network loop prevention to ensure data traffic continuity

- Fanless design with metal frame and desktop or wall-mounted installation for quiet operation and reliability in professional networks.

Further details

5 x 2.5Gbps Multi-Gigabit RJ45 Ports :
The switch integrates 5 2.5GBASE-T Ethernet ports designed to offer wired connections up to 2.5 Gbps , ideal for connecting high-performance Wi-Fi access points, servers, NAS and workstations that require more bandwidth than traditional Gigabit networking.
1 x 10Gbps SFP+ port for fiber uplink :
The presence of a 10 Gigabit SFP+ slot enables the creation of very high-speed uplink connections via optical fiber , improving network scalability and ensuring rapid connections to network backbones, core switches or high-performance corporate infrastructures.
Easy to use with plug-and-play setup:
Designed for easy and quick installation , the switch supports plug-and-play for instant connectivity and intuitive configuration of advanced features, allowing you to quickly get your network up and running without complex procedures.
Centralized Omada SDN Cloud Management:
With centralized cloud management via the Omada platform , administrators can configure, monitor and control the entire network infrastructure from a single interface , using web browsers or the Omada app for efficient management even across multiple locations.

Technical data sheet

Model ES206X-M2
HARDWARE FEATURES
Interface 5× 2.5 Gbps RJ45 Ports
1× 10 Gbps SFP+ Slot
Auto-Negotiation/Auto MDI/MDIX
Number of fans Fanless
Installation Desktop/Wall Mount
Physical security lock
Diet DC Power Adapter Output: 12 VDC / 1 A)
Dimensions (L x W x H) 6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)
Surge Protection ±6 kV for Ethernet ports
PERFORMANCES
Switching capacity 45 Gbps
Packet Forwarding Rate 33.48 Mpps
ARP Table 8 K
Buffer (packets) 640 KB
Jumbo frame 10 KB
SOFTWARE FEATURES
QoS (Quality of Service) Port-based/802.1p/DSCP QoS
8 priority queues
Priority Schedule Mode
SP (Strict Priority)
WRR (Weighted Round Robin)
Queue Weight Config
Bandwidth Control
Port/Flow-based Rating Limiting
Storm Control
Multiple Control Modes(kbps/ratio)
Broadcast/Multicast/Unknown-Unicast Control
L2 functionality

Static Link Aggregation
Loop Prevention / Loopback Detection
Flow Control
802.3x Flow Control
Mirroring
Port Mirroring
One-to-One
Many-to-One
Ingress/Egress/Both
Port Statistics
Port Mirror Status
Traffic Statistics
802.1ab LLDP

L2 Multicast

IGMP Snooping
IGMP v1/v2/v3 Snooping
Fast Leave

VLAN VLAN MTU
Port-Based VLAN
802.1Q VLAN Tag
Max 32 VLAN Groups
4K VID
Transmission method Store-And-Forward
MANAGEMENT
Omada App

Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features Web-based GUI
DHCP Client
Cable Diagnostics
Automatic Device Discovery†
Batch Configuration†
Batch Firmware Upgrading†
Unified Configuration†
OTHER
Certification CE, FCC, RoHS
Package Contents

ES206X-M2
Power Adapter
Power Cord
Mounting Feet
Installation Guide

Environment Operating Temperature: -5℃~40℃ (23℉~104℉)
Storage Temperature: -40 °C to 70 ℃ (-40 ℉ to 158 ℉)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
