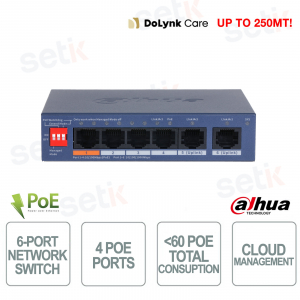

Dahua 6-Port Cloud PoE Switch with 4 PoE, Remote Management, 60W, and Gigabit Uplink

Dahua 6-Port Cloud PoE Switch with 4 PoE, Remote Management, 60W, and Gigabit Uplink

 
-56%

CS4006-4ET2GT-60 It is a cloud-managed PoE switch designed for professional networks, ideal for video surveillance and IT infrastructures, thanks to the presence of 4 10/100 Mbps PoE ports and 2 Gigabit uplink ports with intelligent bandwidth management. It supports cloud management via the DoLynk platform with real-time monitoring and network topology, ensuring simple and effective remote control. It integrates advanced features such as automatic PoE Watchdog , transmission up to 250 meters Long Distance PoE and loop protection for network stability. The robust structure with surge protection up to 6 kV and a wide operating range makes it reliable even in complex environments. Thanks to the total PoE budget of 60W and support for the IEEE 802.3af/at/Hi-PoE standard, it ensures efficient power supply to connected devices. Dahua

Technical Data Sheet

referencia : CS4006-4ET2GT-60

brand : Dahua

EAN: 6939554921773

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4006-4ET2GT-60 | 6 PORT CLOUD MANAGED NETWORK SWITCH WITH 4 POE PORTS - DAHUA


Dahua

The Dahua CS4006-4ET2GT-60 is a cloud-managed PoE switch designed for professional networks and video surveillance systems, equipped with 4 Fast Ethernet PoE ports and 2 Gigabit uplink ports for stable and high-performance connections. Thanks to cloud management via DoLynk, it allows real-time monitoring and simplified configuration, improving operational efficiency. It integrates advanced technologies such as automatic PoE Watchdog , transmission up to 250 m Long Distance PoE and loop protection to ensure network continuity. The robust design with surge protection up to 6 kV and a wide operating range ensures reliability even in critical environments. It supports IEEE 802.3af/at/Hi-PoE standards with a total budget of 60W to efficiently power IP devices.

Main specifications:

- 4 PoE 10/100 Mbps ports + 2 Gigabit uplink ports

- DoLynk cloud management with real-time monitoring

- PoE Watchdog for automatic port reboot

- Long Distance PoE up to 250 meters

- Surge protection up to 6 kV

- Supports IEEE 802.3af/at/Hi-PoE (60W) standard

Further details

✅ Number of doors:
The switch has a total of 6 ports , including 4 10/100 Mbps RJ-45 PoE ports for directly powering devices such as IP cameras and 2 Gigabit uplink ports , ensuring fast and stable connections for connecting to the main network.
✅ Cloud Management:
Thanks to cloud management via the DoLynk platform , it allows real-time monitoring , remote configuration and automatic notifications, improving network control and maintenance even remotely.
✅ Network Topology Management:
It supports LLDP to visualize the complete network topology , allowing you to quickly identify problems and efficiently manage connected devices and infrastructure.
✅ PoE Watchdog :
It integrates the intelligent PoE Watchdog function that monitors the port status and automatically reboots the connected devices in case of malfunctions, reducing manual interventions and downtime.
✅ Loop Protection :
The automatic loop protection system detects network anomalies and activates blocking mechanisms to avoid broadcast storms , ensuring stability and business continuity.
✅ Performance :
 It offers high performance with switching capacity up to 4.8 Gbps , forwarding rate of 3.57 Mpps and support for IEEE standards, ensuring smooth and reliable data transmission even in complex networks.

Technical data sheet

PRODUCT CS4006-4ET2GT-60
Basic
Layer Layer 2
Switching Capacity 4.8 Gbps
Packet Forwarding Rate 3.57 Mpps
Description of Function Slots Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (–40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 1.22 A
Power Consumption Idling: 3 W
Full load: 65 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV;
Net Weight 0.2 kg (0.44 lb)
Gross Weight 0.76 kg (1.68 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Packaging Dimensions 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
PoE
PoE Yes
PoE Power Port 2-4≤30W, port 1≤60W, total≤60W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 232.62 years
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 2K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
