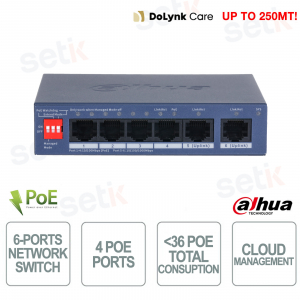

PoE Switch CS4006-4ET2GT-36 6 Ports Cloud Managed 4 PoE 36W Gigabit VLAN 250m Watchdog - Dahua

PoE Switch CS4006-4ET2GT-36 6 Ports Cloud Managed 4 PoE 36W Gigabit VLAN 250m Watchdog - Dahua

 
-56%

CS4006-4ET2GT-36 - The switch is a professional solution for advanced networks that integrates DoLynk cloud management with real-time monitoring and topology control , ideal for CCTV systems and business environments. Equipped with 6 total ports with 4 PoE ports and 2 Gigabit uplink ports , it guarantees stable power supply up to 36W and transmission up to 250 meters with Long Distance PoE technology . Thanks to the automatic PoE Watchdog , the device ensures operational continuity by restarting the ports in the event of an error, while surge protection up to 6kV increases reliability. The metal design and support for VLAN and loop protection make it ideal for professional installations with high requirements for stability and security. Dahua

Technical Data Sheet

referencia : CS4006-4ET2GT-36

brand : Dahua

EAN: 6939554912986

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4006-4ET2GT-36 | 6 PORT CLOUD MANAGED NETWORK SWITCH WITH 4 POE PORTS - DAHUA


Dahua

The Dahua CS4006-4ET2GT-36 switch is an advanced solution for professional networks that integrates DoLynk cloud management with real-time monitoring and network topology visualization , ideal for CCTV systems and IT infrastructures. With a total of 6 ports including 4 PoE ports and 2 Gigabit uplink ports , it offers efficient power supply up to 36W and supports transmission up to 250 meters with Long Distance PoE . PoE Watchdog technology ensures business continuity with automatic port restart, while surge protection up to 6kV ensures high reliability. The metal design and support for VLAN and loop protection make this switch ideal for demanding business environments.

Main specifications:

- DoLynk cloud management with real-time monitoring

- 6 total ports: 4 PoE + 2 Gigabit uplink with 36W budget

- PoE Watchdog for automatic port reboot

- PoE transmission up to 250 meters (Long Distance)

- Surge protection up to 6kV for added safety

- VLAN and loop protection support for network stability

Further details

✅ Number of doors:
The switch features 6 total ports , including 4 10/100 Mbps PoE ports for direct powering of devices and 2 Gigabit uplink ports , offering connection flexibility and optimal network traffic management in professional environments.
✅ Cloud Management:
T hus the DoLynk Care platform , it enables centralized cloud management , with real-time monitoring, error notifications and full remote control , improving operational efficiency and maintenance.
✅ Network Topology Management:
It supports LLDP to visualize the complete network topology , allowing you to quickly identify problems and efficiently manage connected devices and infrastructure.
✅ PoE Watchdog :
Integrates intelligent PoE Watchdog function that monitors port status and automatically reboots connected devices in case of malfunctions, reducing manual intervention and downtime.
✅ Loop Protection :
The automatic loop protection system detects network anomalies and activates blocking mechanisms to avoid broadcast storms , ensuring stability and business continuity.
✅ Performance :
 High performance thanks to switching capacity up to 4.8 Gbps and forwarding rate of 3.57 Mpps , VLAN support up to 32 groups and advanced traffic management, for a stable, fast and scalable network.

Technical data sheet

PRODUCT CS4006-4ET2GT-36
Basic
Layer Layer 2
Switching Capacity 4.8 Gbps
Packet Forwarding Rate 3.57 Mpps
Description of Function Slots Port 1-4: 4 × RJ-45 10/100 Mbps (PoE)
Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 0.8 A
Power Consumption Idling: 3 W
Full load: 42.4 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Net Weight 0.2 kg (0.44 lb)
Gross Weight 0.72 kg (1.59 lb)
Product Dimensions 115 mm × 84 mm × 27 mm (4.53" × 3.33" × 1.06") (L × W × H)
Packaging Dimensions 195 mm × 114 mm × 83 mm (7.68" × 4.49" × 3.27") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
PoE
PoE Yes
PoE Power Port 1-4 ≤ 30W, total ≤ 36W
PoE Protocol IEEE 802.3af; IEEE 802.3at
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1, 2, 4, 5（V+）, 3, 6, 7, 8（V-）
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 232.62 years
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 2K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
