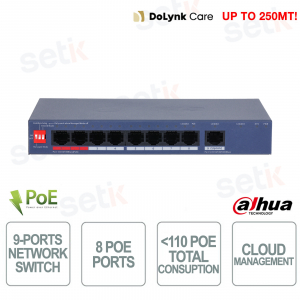

PoE Switch CS4009-8ET1GT-110 9 Ports 8 PoE 110W BT 90W Cloud Gigabit VLAN 250m Watchdog - Dahua

PoE Switch CS4009-8ET1GT-110 9 Ports 8 PoE 110W BT 90W Cloud Gigabit VLAN 250m Watchdog - Dahua

 
-56%

CS4009-8ET1GT-110 - The switch is a professional solution for advanced networks that integrates DoLynk cloud management with real-time monitoring and topology visualization , ideal for video surveillance systems and business environments. With a total of 9 ports with 8 PoE ports and 1 Gigabit uplink port , it offers a high PoE budget of 110W with IEEE 802.3bt support up to 90W per port , perfect for high-power devices. It supports transmission up to 250 meters with Long Distance PoE and integrates PoE Watchdog for automatic port restart , ensuring business continuity. The robust design with surge protection and VLAN support and loop protection ensures maximum reliability in professional installations. Dahua

Technical Data Sheet

referencia : CS4009-8ET1GT-110

brand : Dahua

EAN: 6937552421448

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4009-8ET1GT-110 | 9-Port Cloud-Managed Network Switch with 8 PoE Ports - Dahua


Dahua

The Dahua CS4009-8ET1GT-110 switch is a professional solution for advanced networks that integrates DoLynk cloud management with real-time monitoring and topology visualization , ideal for video surveillance systems and IT infrastructures. Equipped with 9 total ports with 8 PoE ports and 1 Gigabit uplink port , it offers a PoE budget of up to 110W with support for IEEE 802.3bt up to 90W per port , perfect for high-power devices. It supports transmission up to 250 meters with Long Distance PoE and includes PoE Watchdog for automatic port restart , ensuring business continuity. The metal design with surge protection, VLAN and loop protection ensures maximum reliability in professional contexts.

Main specifications:

- DoLynk cloud management with real-time monitoring and remote control

- 9 total ports: 8 PoE + 1 Gigabit uplink with 110W budget

- Supports IEEE 802.3bt up to 90W per port for high-power devices

- PoE transmission up to 250 meters (Long Distance)

- PoE Watchdog for automatic port reboot

- VLAN and loop protection support for network stability and security

Further details

✅ Number of doors:
The switch offers 9 total ports , with 8 10/100 Mbps PoE ports for direct powering of devices and 1 Gigabit uplink port , ensuring flexible connectivity and efficient management of network traffic even in complex professional contexts.
✅ Cloud Management:
Thanks to the DoLynk Care platform , it enables centralized cloud management , with real-time monitoring, automatic notifications and complete remote control , improving operational efficiency and maintenance.
✅ Network Topology Management:
It supports LLDP protocol for detailed network topology visualization , enabling advanced diagnostics, rapid problem identification and intelligent remote management.
✅ PoE Watchdog :
It integrates the intelligent PoE Watchdog function , which allows the automatic restart of PoE ports in case of malfunctions or lack of traffic , ensuring operational continuity and reducing manual interventions.
✅ Hi-PoE 90W :
The dedicated ports support IEEE 802.3bt standards up to 90W per port , ideal for powering high-power devices such as PTZ cameras or advanced systems , increasing the versatility of the infrastructure.
✅ Loop Protection :
Advanced loop protection system that automatically detects anomalies and activates safety mechanisms to prevent broadcast storms and ensure LAN network stability.
✅ Performance :
 High performance with switching capacity up to 3.6 Gbps and forwarding rate of 2.68 Mpps , VLAN support up to 32 groups and advanced traffic management, ensuring stable, fast and reliable network.

Technical data sheet

PRODUCT CS4009-8ET1GT-110
Basic
Layer Layer 2
Switching Capacity 3.6 Gbps
Packet Forwarding Rate 2.68 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +70 °C (–40 °F to +158 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: 53 VDC, 2.22 A
Power Consumption Idling: 5.7 W
Full load: 115 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 1.09 kg (2.03 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-8≤30W, port 1-2≤90W, total≤110W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1,2,4,5(V+),3,6,7,8(V-)
Port 3-8: 1,2,(V+),3,6,(V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 2,566,539 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
VLAN Number 32
Feature
VLAN Function IEEE 802.1Q VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
