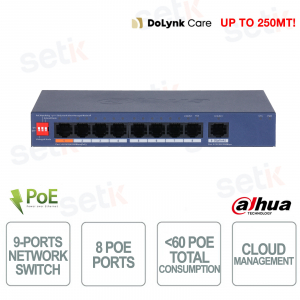

CS4009-8GT-60 9-Port Gigabit PoE Cloud Managed Switch with Hi-PoE 60W and AI Ready VLAN - Dahua

CS4009-8GT-60 9-Port Gigabit PoE Cloud Managed Switch with Hi-PoE 60W and AI Ready VLAN - Dahua

 
-56%

CS4009-8GT-60 - The managed cloud switch is the ideal solution for professional networks and video surveillance systems thanks to 8 Gigabit PoE ports and 1 Gigabit uplink port , with Hi-PoE support up to 60W on the dedicated port. It offers advanced management via DoLynk Care cloud and a web interface with real-time monitoring, supporting VLAN, STP, RSTP and Link Aggregation for a stable and secure network. The PoE Watchdog function automatically reboots ports in the event of an error, while the Long Distance PoE mode of up to 250 meters guarantees maximum installation flexibility. The metal design with surge protection up to 6 kV ensures reliability even in industrial and corporate environments. Dahua

Technical Data Sheet

referencia : CS4009-8GT-60

brand : Dahua

EAN: 6937552480148

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4009-8GT-60 | 9-Port Cloud-Managed Network Switch with 8 PoE Ports - Dahua


Dahua

The Dahua CS4009-8GT-60 is a cloud-managed Gigabit PoE switch designed for professional networks, IP video surveillance, and high-performance enterprise infrastructures. Featuring centralized management via DoLynk Care , it ensures real-time monitoring, quick configuration, and maximum stability thanks to VLAN, STP, RSTP, and Link Aggregation support. 60W Hi-PoE technology can power high-power devices, while the Long Distance PoE function of up to 250 meters offers great installation flexibility. The rugged metal chassis with surge protection up to 6 kV ensures continuous reliability in commercial and industrial environments.

Main specifications:

- 8 RJ45 Gigabit PoE ports + 1 Gigabit uplink port

- Total PoE power 60W with Hi-PoE support

- Cloud and Web Management via DoLynk Care

- PoE Watchdog with automatic port reboot

- PoE transmission up to 250 meters

- Supports VLAN, STP, RSTP and Link Aggregation

- Surge protection up to 6 kV

- Operating temperature from -10°C to +55°C

Further details

✅ Number of doors:
The Dahua switch features 8 RJ45 Gigabit PoE ports dedicated to powering and transmitting data to IP cameras, access points and network devices, as well as 1 Gigabit uplink port for high-speed connections to routers, NVRs or corporate infrastructures, ensuring high performance and maximum network stability.
✅ Cloud Management:
Thanks to the DoLynk Care platform , the switch supports centralized cloud management with real-time remote monitoring, alarm notifications, device status check and quick configuration via web interface or dedicated app, ideal for professional networks and advanced video surveillance systems.
✅ Network Topology Management:
It supports LLDP protocol for detailed network topology visualization , enabling quick diagnostics, problem identification and intelligent device management.
✅ PoE Watchdog :
The intelligent PoE Watchdog function constantly monitors the status of PoE ports and automatically reboots unreachable or blocked devices, reducing manual intervention and ensuring business continuity in IP video surveillance systems.
✅ Hi-PoE 60W :
The dedicated port with Hi-PoE technology up to 60W allows you to power high-power devices such as PTZ speed domes, advanced cameras and professional equipment, maintaining stable and secure data transmission via a single Ethernet cable.
✅ Loop Protection :
The Loop Protection system automatically detects any network loops and activates protection mechanisms to prevent broadcast storms, slowdowns and network interruptions, improving the reliability and security of the LAN infrastructure.
✅ Spanning Tree Protocol :
Support for STP and RSTP protocols optimizes data traffic by creating loop-free network paths and ensuring intelligent redundancy, thus increasing network stability and service continuity even in complex environments.
✅ Performance :
 With 18 Gbps switching capacity, 13.392 Mpps forwarding rate, 9216 Byte Jumbo Frame support and 8K MAC table, the switch ensures high data transmission performance for enterprise networks, CCTV systems and high-traffic applications.

Technical data sheet

PRODUCT CS4009-8GT-60
Basic
Layer Layer 2
Switching Capacity 18 Gbps
Packet Forwarding Rate 13.392 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (-40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: (53V, 1.22A)
Power Consumption Idling: ≤ 3.2 W
Full load: 61 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 0.95 kg (2.09 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 2-8≤30W, port 1≤60W, total≤60W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1,2, (V+), 3,6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 2,482,955 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
