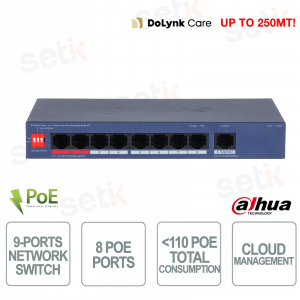

CS4009-8GT-110 Cloud Managed Gigabit PoE Switch 110W with 8 Ports and IEEE 802.3bt 90W - Dahua

CS4009-8GT-110 Cloud Managed Gigabit PoE Switch 110W with 8 Ports and IEEE 802.3bt 90W - Dahua

 
-56%

The CS4009-8GT- 110 is a cloud-managed Gigabit PoE switch designed for professional networks, CCTV systems, and high-performance enterprise infrastructure. Equipped with 8 Gigabit PoE ports and 1 Gigabit uplink port , it offers a total power of up to 110W with IEEE 802.3bt support up to 90W on dedicated ports for high-power devices. Centralized management via DoLynk Care Cloud allows remote monitoring, quick configuration, and real-time control of the network. It supports advanced functions such as VLAN, STP, RSTP, Link Aggregation, and PoE Watchdog , ensuring stability, security, and business continuity. The rugged metal design with surge protection up to 6 kV ensures reliability even in industrial and commercial environments. Dahua

Technical Data Sheet

referencia : CS4009-8GT-110

brand : Dahua

EAN: 6937552480155

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4009-8GT-110 | 9-Port Cloud-Managed Network Switch with 8 PoE Ports - Dahua


Dahua

The Dahua CS4009-8GT-110 is a cloud-managed Gigabit PoE switch ideal for professional networks, IP video surveillance systems and high-performance business infrastructures. Thanks to its 8 Gigabit PoE ports and the Gigabit uplink port , it offers advanced power supply with IEEE 802.3bt support up to 90W and a total PoE power of 110W . Centralized management via DoLynk Care Cloud allows remote monitoring, quick configuration and intelligent real-time network control. PoE Watchdog , Long Distance PoE up to 250 meters , VLAN , STP/RSTP and Link Aggregation technologies ensure stability, security and business continuity even in industrial and commercial environments.

Main specifications:

- 8 RJ45 Gigabit PoE ports + 1 Gigabit uplink port

- Total PoE power up to 110W

- IEEE 802.3bt support up to 90W on dedicated ports

- Cloud and Web Management via DoLynk Care

- PoE Watchdog with automatic port reboot

- Long Distance PoE transmission up to 250 meters

- Supports VLAN, STP, RSTP and Link Aggregation

- Surge protection up to 6 kV

- Durable metal construction for professional environments

- Real-time remote monitoring and management

Further details

✅ Number of doors:
The Dahua switch integrates 8 RJ45 Gigabit PoE ports for connecting IP cameras, access points and network devices, as well as 1 Gigabit uplink port dedicated to connection to routers, NVRs or network backbones, offering high data transmission performance and maximum efficiency in professional infrastructures.
✅ Cloud Management:
Centralized management via DoLynk Care Cloud enables real-time remote control of the switch, with device status monitoring, alarm notifications, simplified configuration, and intelligent maintenance via a web platform and dedicated application.
✅ Network Topology Management:
Thanks to the support for the LLDP protocol, the device is able to generate and display the complete network topology , facilitating the quick identification of problems, bad connections and offline devices, improving remote maintenance and management operations.
✅ PoE Watchdog :
Intelligent PoE Watchdog technology continuously monitors PoE ports and automatically reboots devices that stop transmitting data, ensuring operational continuity in CCTV systems and dramatically reducing manual technician intervention.
✅ Hi-PoE 60W :
The dedicated ports support the IEEE 802.3bt standard up to 90W , ideal for powering high-power devices such as PTZ cameras, speed domes, professional access points and advanced equipment via a single Ethernet cable.
✅ Loop Protection :
The Loop Protection system automatically detects any network loops and activates protection mechanisms to prevent broadcast storms, slowdowns and network interruptions, improving the reliability and security of the LAN infrastructure.
✅ Spanning Tree Protocol :
Support for STP and RSTP protocols optimizes data traffic by creating loop-free network paths and ensuring intelligent redundancy, thus increasing network stability and service continuity even in complex environments.
✅ Performance :
 With 18 Gbps switching capacity , 13.392 Mpps forwarding rate , Jumbo Frame support up to 15360 Bytes and 8K MAC table , the switch ensures high performance for professional applications, IP video surveillance and high data traffic networks.

Technical data sheet

PRODUCT CS4009-8GT-110
Basic
Layer Layer 2
Switching Capacity 18 Gbps
Packet Forwarding Rate 13.392 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (-40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External power supply: (53V, 1.22A)
Power Consumption Idling: 4.7 W
Full load: 112 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Differential mode: 1 kV
Net Weight 0.36 kg (0.79 lb)
Gross Weight 1.13 kg (2.49 lb)
Product Dimensions 184.6 mm × 103.3 mm × 27 mm (7.27" × 4.07" × 1.06") (L × W × H)
Packaging Dimensions 252 mm × 137 mm × 113 mm (9.92" × 5.39" × 4.45") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-8 ≤30W, port 1-2 ≤90W, total ≤110W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment 1,2, (V+), 3,6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-8 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-8; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 2,482,955 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
