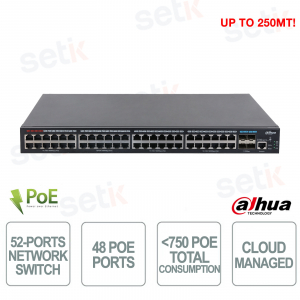

S5452-48GT4XF-750 L2+ PoE Switch 10G 750W with 48 Gigabit Ports and 4 SFP+ - Dahua

S5452-48GT4XF-750 L2+ PoE Switch 10G 750W with 48 Gigabit Ports and 4 SFP+ - Dahua

 
-56%

S5452-48GT4XF-750 - is a L2+ Managed PoE switch designed for enterprise networks, CCTV systems and high-performance professional infrastructures. Equipped with 48 Gigabit PoE ports and 4 SFP+ 10Gbps uplink ports , it ensures fast and stable data transmission even in high-traffic environments. It supports a total PoE power of up to 750W with IEEE 802.3bt technology and Hi-PoE up to 90W on the dedicated ports for high-power devices. The advanced PoE Watchdog , Long Distance PoE up to 250 meters , STP/RSTP/ERPS , Link Aggregation and Web and SNMP management functions ensure maximum reliability, security and business continuity in complex professional infrastructures. Dahua

Technical Data Sheet

referencia : S5452-48GT4XF-750

brand : Dahua

EAN: 6923172574015

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

S5452-48GT4XF-750 | 52-PORT MANAGED NETWORK SWITCH WITH 48 POE PORTS - DAHUA


Dahua

The Dahua S5452-48GT4XF-750 is an L2+ Managed PoE switch ideal for professional networks, IP video surveillance systems and high-performance business infrastructures. Thanks to its 48 Gigabit PoE ports and 4 SFP+ 10Gbps uplink ports , it offers fast, stable data transmissions that are perfect for high-traffic environments. It supports a total PoE power of up to 750W with IEEE 802.3bt technology and Hi-PoE up to 90W on dedicated ports, ideal for PTZ cameras, access points and high-power consumption devices. The advanced PoE Watchdog , Long Distance PoE up to 250 meters , STP/RSTP/ERPS , Link Aggregation , Web and SNMP management and surge protection functions ensure maximum reliability, security and business continuity in the most complex professional networks.

Main specifications:

- 48 RJ45 Gigabit PoE ports

- 4 SFP+ 1/10Gbps uplink ports

- Total PoE power up to 750W

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Layer 2+ Managed Switch

- PoE Watchdog with automatic reboot of IP cameras

- Long Distance PoE up to 250 meters

- STP, RSTP and ERPS support

- LACP static and dynamic link aggregation

- Web and SNMP management

- Switching capacity up to 176 Gbps

- Loop, surge and broadcast storm protection

Further details

✅ Number of doors:
The Dahua switch integrates 48 RJ45 Gigabit PoE ports for simultaneously connecting IP cameras, access points and professional network devices, as well as 4 SFP+ 10Gbps uplink ports ideal for fiber optic backbones and high-speed data transmission in enterprise environments.
✅ Long Distance PoE:
Long Distance PoE technology enables data and power transmission up to 250 meters via Ethernet cable, making the switch perfect for large IP video surveillance installations, parking lots, warehouses and industrial infrastructures without the need for additional equipment.
✅ Intelligent PoE:
The advanced Intelligent PoE system monitors port power consumption in real time, prioritizes the most important devices, and protects the network from overloads or power variations, ensuring greater reliability and business continuity.
✅ BT 90W :
The red ports support IEEE 802.3bt and Hi-PoE standards up to 90W , allowing you to power high-power devices such as PTZ cameras, professional speed domes, and advanced Wi-Fi access points over a single Ethernet cable.
✅ Minimal WEB :
The Minimal WEB interface offers simple, intuitive and fast management of the switch, improving the efficiency of network configurations thanks to a graphical panel optimized for IT administrators and professional installers.
✅ Performance :
 With a switching capacity of up to 176 Gbps , forwarding rate of 130.944 Mpps , 16 Mbit buffer , Jumbo Frame support up to 12288 Bytes and 32K MAC table , the switch ensures high performance and stable transmission even in professional networks with very high data traffic.

Technical data sheet

PRODUCT S5452-48GT4XF-750
Basic
Layer Layer 2
Switching Capacity 176 Gbps
Packet Forwarding Rate 130.944 Mpps
Description of Function Slots Port 1-48: 48 × RJ-45 10/100/1000 Mbps;
Port 49-52: 4 × SFP+ 1/10 Gbps
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 5%–95% (RH), non-condensing
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 50/60 Hz, 12 A Max
Power Consumption Idling: 31.4 W
Full load: ≤ 800 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 5.7 kg (12.57 lb)
Gross Weight 7 kg (15.43 lb)
Product Dimensions 440 mm × 391 mm × 44.0 mm (17.32" × 15.39" × 1.73") (L × W × H)
Packaging Dimensions 561 mm × 513 mm × 146 mm (22.09" × 20.20" × 5.75") (L × W × H)
Installation Rack mount; desktop mount
PoE
PoE Yes
PoE Power Port 1-4 ≤ 90W, Port 5-48 ≤ 30W, total ≤ 750W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management Yes
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
Debugging 1 × Console port
Reset Button 1
Performance
Packet Buffer Size 16 Mbit
Jumbo Frame 12288 Bytes
MAC Table Size 32K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3ad
VLAN Number 494
VLAN Interface 10
Feature
Ethernet Loop Protection STP/RSTP/ERPS
VLAN Function Port-based VLAN
Link Aggregation LACP
Static Link Aggregation
Dynamic link aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
IEEE 802.3x Flow Control Yes
Multicast IGMP Snooping
Reliability LLDP
Routing Static routing
DHCP Function DHCP Client
Security 802.1X
Port Isolation
Radius
HTTPS
QoS/ACL SP/WRR queue scheduling
802.1p and DSCP priority mapping
Port speed limit
Equipment Management Cloud Management
Web
SNMP V1/V2C/V3
NTP
Logs
Ping
General
Packing List 1 × User Manual;
1 × Legal and Regulatory Information
1 × Warranty Card
1 × List of Hazardous Substances
1 × Power Cord
1 × Rack-mounting Kit
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
