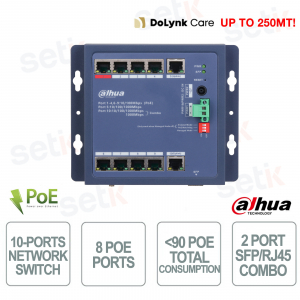

CHS4110-8ET-90-F Industrial Cloud PoE Switch BT 90W with Uplink Gigabit Combo - Dahua

CHS4110-8ET-90-F Industrial Cloud PoE Switch BT 90W with Uplink Gigabit Combo - Dahua

 
-56%

CHS4110-8ET-90-F - is a Hardened Cloud Managed switch designed for industrial networks, IP video surveillance systems and professional installations in critical environments. Equipped with 8 Fast Ethernet PoE ports , 2 Gigabit RJ45/SFP Combo uplink ports and IEEE 802.3bt support with BT 90W , it guarantees stable power and reliable transmissions even for high-power devices. The advanced Cloud Management , Network Topology Management , PoE Watchdog and Long Distance PoE functions up to 250 meters ensure intelligent monitoring, business continuity and simplified maintenance. Thanks to the fanless IP30 industrial design with protection against surges, lightning and EMC interference, it represents an ideal solution for industrial, outdoor environments and high-reliability professional infrastructures. Dahua

Technical Data Sheet

referencia : CHS4110-8ET-90-F

brand : Dahua

EAN: 6939554903496

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CHS4110-8ET-90-F | 10-Port Industrial Managed Network Switch with 8 POE Ports - Dahua


Dahua

The Dahua CHS4110-8ET-90-F is a Hardened Cloud Managed switch ideal for industrial networks, IP video surveillance systems and professional installations in critical environments. Thanks to the 8 Fast Ethernet PoE ports and the 2 Gigabit RJ45/SFP Combo uplink ports , it guarantees stable connections and reliable transmissions even in high-intensity scenarios. It supports IEEE 802.3bt technology and Hi-PoE up to 90W on the dedicated port to power PTZ cameras and high-power devices via a single Ethernet cable. The advanced Cloud Management , Network Topology Management , PoE Watchdog , Long Distance PoE up to 250 meters and Loop Protection functions, combined with the fanless IP30 industrial design with lightning and surge protection, ensure operational continuity and maximum reliability in industrial and outdoor environments.

Main specifications:

- 8 Fast Ethernet PoE ports

- 2 Gigabit RJ45/SFP Combo uplink ports

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Cloud Management via DoLynk Care

- Network Topology Management support with LLDP

- PoE Watchdog with automatic port reboot

- Long Distance PoE up to 250 meters

- Loop Protection against broadcast storm

- Layer 2 Managed Switch

- Switching capacity up to 5.6 Gbps

- Hardened IP30 fanless industrial design

- Protection against surges, lightning and EMC

Further details

✅ Number of doors:
The Dahua switch integrates 8 Fast Ethernet PoE ports for connecting IP cameras and professional network devices, as well as 2 Gigabit RJ45/SFP Combo uplink ports that provide greater flexibility for highly reliable copper or fiber optic connections.
✅ Cloud Management:
Thanks to the DoLynk Care Cloud platform , the device offers intelligent remote management with real-time network monitoring, automatic error notifications, device status monitoring and centralized maintenance via app or web interface.
✅ Network Topology Management:
L LDP support enables real-time network topology visualization , making it easy to immediately identify problems, offline devices, and connection anomalies for more efficient IP infrastructure management.
✅ BT 90W :
The red port supports IEEE 802.3bt and Hi-PoE standards up to 90W , allowing you to power PTZ cameras, speed domes and high-power devices via a single Ethernet cable, reducing installation time and costs.
✅ Long Distance PoE :
The Long Distance PoE function enables data and power transmission up to 250 meters with adaptive speed of 10 Mbps, making it ideal for large installations in factories, parking lots, corridors and outdoor environments.
✅ PoE Watchdog :
The intelligent PoE Watchdog system continuously monitors data traffic on PoE ports and automatically reboots blocked or unreachable devices, ensuring business continuity and reducing the need for manual technical intervention.
✅ Performance :
 With a switching capacity of up to 5.6 Gbps , forwarding rate of 4.17 Mpps , Jumbo Frame support of up to 9216 Bytes , 8K MAC table and operational operation from -30°C to +65°C , the switch guarantees high performance and maximum reliability even in critical industrial environments.

Technical data sheet

PRODUCT CHS4110-8ET-90-F
Basic
Layer Layer 2
Switching Capacity 5.6 Gbps
Packet Forwarding Rate 4.17 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps (PoE)
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
Port 10: 1 × RJ-45 10/100/1000 Mbps (uplink) (combo)
Port 10: 1 × SFP 1000Mbps (uplink) (combo)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Protection IP30;IK06
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External dual power supply (terminal block and DC): 48–57 VDC, 2–1.69A
Power Consumption Idling: 3.1 W
Full load: 957 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.56 kg (1.23 lb)
Gross Weight 1.3 kg (2.87 lb)
Product Dimensions 154.3 mm × 110.4 mm × 30 mm (6.07" × 4.35" × 1.18") (L × W × H)
Packaging Dimensions 266 mm × 239 mm × 77 mm (10.47" × 9.41" × 3.03") (L × W × H)
Casing Material Iron
Installation DIN rail mount; desktop mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 2-8≤30W, port 1≤90W, total≤90W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.
Reset Button 1
Performance
MTBF 1,014,663.76 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z
VLAN Number 32
Feature
VLAN Function Port-based VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
Port Self-loop Detection
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
