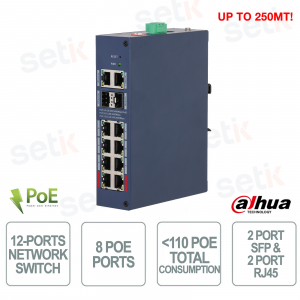

CHS4212-8GT-110 Gigabit PoE Cloud Managed Switch 12 Ports with Hi-PoE 90W - Dahua

CHS4212-8GT-110 Gigabit PoE Cloud Managed Switch 12 Ports with Hi-PoE 90W - Dahua

 
-56%

CHS4212-8GT-110 - is an industrial Cloud Managed Gigabit PoE switch designed for professional networks, IP video surveillance and high-performance industrial environments. Equipped with 12 Gigabit ports , including 8 PoE ports , 2 SFP uplink ports and 2 RJ45 uplink ports , it supports IEEE 802.3bt technology and Hi-PoE up to 90W to power high-power devices. Intelligent management via Cloud and Web Management , LLDP support, PoE Watchdog system and PoE transmission up to 250 meters ensure reliability, remote control and business continuity. The full metal fanless IP30 design ensures high resistance in harsh environments with stable operation from -30°C to +65°C . Dahua

Technical Data Sheet

referencia : CHS4212-8GT-110

brand : Dahua

EAN: 6939554981906

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CHS4212-8GT-110 | 12-Port Industrial Managed Network Switch with 8 POE Ports & 2 SFP Ports & 2 RJ45 Ports - Dahua


Dahua

The Dahua CHS4212-8GT-110 is an industrial Cloud Managed Gigabit PoE switch designed for professional networks, IP video surveillance and advanced industrial applications. Equipped with 12 Gigabit ports , including 8 PoE ports , 2 SFP uplink ports and 2 RJ45 uplink ports , it supports IEEE 802.3bt technology and Hi-PoE up to 90W to power high-power devices. Intelligent management via Cloud and Web Management , LLDP support, automatic PoE Watchdog system and PoE transmission up to 250 meters ensure reliability, remote monitoring and business continuity. The full metal fanless IP30 design ensures high resistance to dust, temperature changes and harsh environments with stable operation from -30°C to +65°C .

Main specifications:

- 12 Gigabit ports with 8 PoE ports, 2 SFP uplink and 2 RJ45 uplink

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Integrated Cloud and Web Management

- PoE transmission up to 250 meters

- Intelligent PoE Watchdog function

- LLDP support for network topology

- STP/RSTP and VLAN protection

- Fanless full metal design with IP30 protection

- Operating temperature from -30°C to +65°C

Further details

✅ Number of doors:
The Dahua switch features 12 Gigabit ports , including 8 RJ45 PoE ports , 2 SFP uplink ports for fiber optic connections and 2 RJ45 uplink ports , providing maximum flexibility for enterprise networks, IP video surveillance systems and high-performance industrial infrastructure.
✅ Local and Cloud Management:
Local Web and Cloud Management enables centralized network configuration, remote monitoring, and maintenance, improving operational control and reducing IT management time and costs.
✅ Network Topology Management:
Thanks to the support of the LLDP protocol , the switch automatically generates the network topology allowing you to quickly identify connected devices, connections and anomalies for more efficient infrastructure management.
✅ Link Aggregation:
Link Aggregation technology combines multiple physical links into a single high-speed virtual channel, increasing available bandwidth and ensuring greater stability, redundancy, and data traffic balancing.
✅ Spanning Tree Protocol:
Support for STP and RSTP protocols automatically prevents network loops and broadcast storms, improving reliability, security and business continuity in professional Ethernet networks.
✅ BT 90W :
The dedicated ports support IEEE 802.3bt standards and Hi-PoE up to 90W , ideal for powering high-power consumption devices such as PTZ cameras, professional access points and advanced IP security systems.
✅ Long Distance PoE :
The Long Distance PoE function allows data and power transmission up to 250 meters , an ideal solution for video surveillance installations and industrial networks over long distances without the need for additional devices.
✅ PoE Watchdog :
The intelligent PoE Watchdog system continuously monitors the status of PoE ports and automatically reboots unreachable or blocked devices, ensuring service continuity and reducing manual maintenance interventions.
✅ Loop Protection :
Loop Protection technology automatically detects any network loops and activates protection mechanisms that avoid congestion, slowdowns and interruptions in data traffic.
✅ Performance :
 With switching capacity up to 24 Gbps , forwarding rate of 17.856 Mpps , 8.4 Mbit buffer and 12288 Byte Jumbo Frame support , the switch ensures high performance, smooth video stream transmission and maximum stability in professional networks.

Technical data sheet

PRODUCT CHS4212-8GT-110
Basic
Layer Layer 2
Switching Capacity 24 Gbps
Packet Forwarding Rate 17,856 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-10: 2 × SFP 100/1000 Mbps (uplink)
Port 11-12: 2 × RJ-45 10/100/1000 Mbps (uplink)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Protection IP30;IK06
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External dual power supply (terminal block and DC): 48–57 VDC, 2.5–2.1 A
Power Consumption Idling: 2 W
Full load: 117.2 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.66 kg (1.46 lb)
Gross Weight 1.6 kg (3.53 lb)
Product Dimensions 171.8 mm × 139.4 mm × 42 mm (6.76" × 5.49" × 1.65") (L × W × H)
Packaging Dimensions 314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)
Casing Material Iron
Installation DIN rail mount; desktop mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-8≤30W, port 1–2≤90W, total≤110W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE
PoE Pin Assignment 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V–)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.
Reset Button 1
Performance
MTBF 810,020 hours
Packet Buffer Size 8.4 Mbit
Jumbo Frame 12288 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Dynamic ARP 10
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function Port-based VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+PORT Binding
Port Self-loop Detection
Ports Self-loop Detection
Mirror Local Port Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
IP/Port/MAC Binding
Equipment Management Web Management
Cloud Management
Logs
System Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
