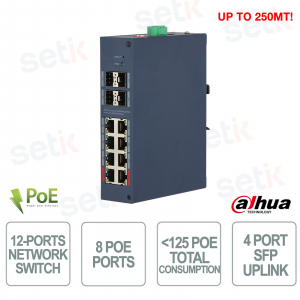

CHS4412-8GT-125 12 Port Gigabit Cloud PoE Switch with BT 90W and 4 SFP - Dahua

CHS4412-8GT-125 12 Port Gigabit Cloud PoE Switch with BT 90W and 4 SFP - Dahua

 
-56%

CHS4412-8GT-125 - is an industrial Cloud Managed Gigabit PoE switch designed for professional networks, IP video surveillance and advanced industrial applications. Equipped with 12 Gigabit ports , including 8 RJ45 PoE ports and 4 SFP uplink ports , it supports IEEE 802.3bt and Hi-PoE technology up to 90W with a total PoE budget of 125W to power high-power devices. Intelligent management via Cloud and Web Management , LLDP support, PoE Watchdog function and PoE transmission up to 250 meters ensure reliability, remote monitoring and business continuity. The full metal fanless IP30 design ensures high performance and resistance in harsh environments with stable operation from -30°C to +65°C . Dahua

Technical Data Sheet

referencia : CHS4412-8GT-125

brand : Dahua

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CHS4412-8GT-125 | 12-Port Industrial Managed Network Switch with 8 POE Ports & 4 SFP Ports - Dahua


Dahua

The Dahua CHS4412-8GT-125 is an industrial Cloud Managed Gigabit PoE switch designed for professional networks, IP video surveillance systems and high-performance industrial environments. Equipped with 12 Gigabit ports , including 8 RJ45 PoE ports and 4 SFP uplink ports , it supports IEEE 802.3bt technology and Hi-PoE up to 90W with a total PoE budget of 125W , ideal for high-power devices. Cloud and Web Management , LLDP support, intelligent PoE Watchdog function and PoE transmission up to 250 meters ensure reliability, remote monitoring and business continuity. The full metal fanless IP30 design ensures maximum resistance in harsh environments with stable operation from -30°C to +65°C .

Main specifications:

- 12 Gigabit ports with 8 PoE ports and 4 SFP uplink ports

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Total PoE budget up to 125W

- Integrated Cloud and Web Management

- PoE transmission up to 250 meters

- Intelligent PoE Watchdog function

- LLDP support for network topology

- STP/RSTP Protection and Link Aggregation

- IP30 fanless full metal industrial design

- Operating temperature from -30°C to +65°C

Further details

✅ Number of doors:
The Dahua switch features 12 Gigabit ports , including 8 RJ45 PoE ports for simultaneous power and data transmission and 4 SFP uplink ports dedicated to high-speed fiber optic connections, ideal for enterprise networks, IP video surveillance and advanced industrial infrastructure.
✅ Local and Cloud Management:
Local web management and centralized cloud management enable remote monitoring, simplified configuration, and intelligent network maintenance, improving operational efficiency and reducing IT management costs.
✅ Network Topology Management:
Thanks to the support for the LLDP protocol , the switch is able to automatically generate the network topology, facilitating the quick identification of connected devices, connections and any network anomalies.
✅ BT 90W :
The red ports support IEEE 802.3bt and Hi-PoE standards up to 90W , allowing you to power high-power devices such as PTZ cameras, professional access points and advanced security systems without external power supplies.
✅ Long Distance PoE :
The Long Distance PoE function allows data and power transmission up to 250 meters , an ideal solution for video surveillance installations and industrial networks over long distances while maintaining high connection reliability.
✅ PoE Watchdog :
The intelligent PoE Watchdog system continuously monitors the status of PoE ports and automatically reboots unreachable or blocked devices, ensuring business continuity and reducing manual maintenance.
✅ Loop Protection :
Loop Protection technology automatically detects network loops and activates protection systems to avoid congestion, broadcast storms and data traffic slowdowns.
✅ Performance :
 With switching capacity up to 24 Gbps , forwarding rate of 17.856 Mpps , 8.4 Mbit buffer , support for 12288 Byte Jumbo Frame and MTBF exceeding 1,179,412 hours , the switch ensures high performance, smooth video stream transmission and maximum stability in professional networks.

Technical data sheet

PRODUCT CHS4412-8GT-125
Basic
Layer Layer 2
Switching Capacity 24 Gbps
Packet Forwarding Rate 17.856 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100/1000 Mbps (PoE)
Port 9-12: 4 × SFP 100/1000 Mbps (uplink)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Protection IP30;IK06
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External dual power supply (terminal block and DC): 50–57 VDC, 2.7–2.37 A
Power Consumption Idling: 3 W
Full load: 134.5 W
Statics Protection Air discharge: 15 kV;
Contact discharge: 8 kV
Lighting Protection Power Port: Common mode/Differential mode 6 kV
Network Port: Common mode 10kV, Differential mode 2kV
Net Weight 0.72 kg (1.59 lb)
Gross Weight 1.73 kg (3.81 lb)
Product Dimensions 171.8 mm × 133.4 mm × 42 mm (6.76" × 5.25" × 1.65") (L × W × H)
Packaging Dimensions 314.5 mm × 253.5 mm × 130.5 mm (12.38" × 9.98" × 5.14") (L × W × H)
Casing Material Sheet metal
Installation DIN rail mount; desktop mount
PoE
PoE Yes
PoE Power Port 3-8≤30W, port 1–2≤90W, total≤125W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management; PoE power on/off; turns off PoE if overload is detected; Green PoE
PoE Pin Assignment Port 1-2: 1,2,4,5（V+）,3,6,7,8（V-）
Port 3-8: 1,2,（V+）,3,6,（V-
Long Distance PoE Transmission Yes
Perpetual PoE Yes
Hardware
DIP Switch Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Extend mode: The transmission distance of ports 1–8 can reach up to 250 meters. The negotiation speed can be reduced to 10 Mbps.
PoE Watchdog: Monitors the flow of data traffic for ports 1–8. If PoE fails for any of the ports and there is no traffic for 2 minutes, the failed ports will be restarted.
Reset Button 1
Performance
MTBF 1,179,412h
Packet Buffer Size 8.4 Mbit
Jumbo Frame 12288 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Dynamic ARP 10
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function Port-based VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+PORT Binding
Port Self-loop Detection
Ports Self-loop Detection
Mirror Local Port Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
IP/Port/MAC Binding
Equipment Management Web Management
Cloud Management
Logs
System Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
