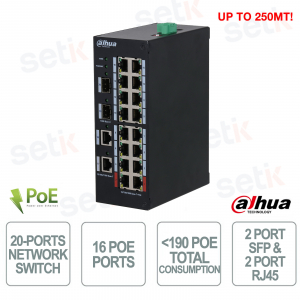

HS3220-16GT-190 20 Port Gigabit PoE Switch with Hi-PoE 90W and SFP Uplink - Dahua

HS3220-16GT-190 20 Port Gigabit PoE Switch with Hi-PoE 90W and SFP Uplink - Dahua

 
-56%

HS3220-16GT-190 - is an industrial Unmanaged Gigabit PoE switch designed for professional networks, IP video surveillance and high-performance industrial environments. Equipped with 20 total ports , including 16 Gigabit PoE ports , 2 RJ45 uplink ports and 2 SFP uplink ports , it supports IEEE 802.3bt technology and Hi-PoE up to 90W with a total PoE budget of 190W to power high-power devices. Long Distance PoE up to 250 meters , PoE Watchdog and Intelligent PoE functions ensure business continuity, intelligent monitoring and maximum network reliability. The full metal fanless design with surge protection and operation from -30°C to +65°C ensures stability even in the most harsh environments. Dahua

Technical Data Sheet

referencia : HS3220-16GT-190

brand : Dahua

EAN: 6923172573865

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

HS3220-16GT-190 | 20-Port Industrial Unmanaged Hardened Switch with 16 PoE Ports & 4 SFP Ports & 2 RJ45 Ports - Dahua


Dahua

The Dahua HS3220-16GT-190 is an industrial Gigabit PoE Unmanaged switch designed for professional networks, IP video surveillance systems and high-performance industrial applications. Equipped with a total of 20 ports , including 16 Gigabit PoE ports , 2 RJ45 uplink ports and 2 SFP uplink ports , it supports IEEE 802.3bt technology and Hi-PoE up to 90W with a total PoE budget of 190W to power high-power devices. Intelligent PoE Watchdog , Long Distance PoE up to 250 meters and Eight-pin PoE functions ensure stable transmission, continuous monitoring and greater energy efficiency. The full metal fanless design with surge protection and operating temperature from -30°C to +65°C ensures maximum reliability even in the harshest industrial environments.

Main specifications:

- 20 total ports with 16 Gigabit PoE ports

- 2 uplink RJ45 ports and 2 uplink SFP ports

- Supports IEEE 802.3bt and Hi-PoE up to 90W

- Total PoE budget up to 190W

- PoE transmission up to 250 meters

- Intelligent PoE Watchdog System

- Eight-pin PoE technology for greater stability

- Switching capacity up to 40 Gbps

- Fanless full metal industrial design

- Operating temperature from -30°C to +65°C

Further details

✅ Number of doors:
The Dahua switch integrates a total of 20 ports , including 16 Gigabit PoE ports , 2 RJ45 uplink ports and 2 SFP uplink ports , providing high flexibility for professional networks, IP video surveillance systems and high-performance industrial infrastructure.
✅ Intelligent PoE:
Intelligent PoE technology monitors port power consumption in real time and automatically prioritizes power to the most important devices, preventing overloads and ensuring network continuity.
✅ BT 90W :
The red ports support IEEE 802.3bt standards and Hi-PoE up to 90W , ideal for powering high-power devices such as PTZ cameras, professional Wi-Fi access points and advanced security terminals.
✅ Eight-pin PoE:
Eight-pin PoE technology uses all 8 pins of the Ethernet cable simultaneously for power and data transmission, improving stability, reducing power loss and increasing the load capacity of connected devices.
✅ Long Distance PoE :
The Long Distance PoE function allows data and power transmission up to 250 meters , an ideal solution for video surveillance installations and industrial networks over long distances without the need for additional devices.
✅ All-Gigabit Ports :
All ports are Gigabit 10/100/1000 Mbps and combined with a large buffer memory, ensuring smooth transmission of high-definition video streams and high performance even in high-traffic data networks.
✅ Performance :
 With switching capacity up to 40 Gbps , forwarding rate of 29.76 Mpps , Layer 2 support and total PoE power supply up to 190W , the switch ensures high performance, network stability and efficient management of connected devices.

Technical data sheet

PRODUCT HS3220-16GT-190
Hardware
Power Adapter Included Yes
PoE Yes
Ethernet Port 16
Ethernet Port Speed 10/100/1000 Mbps
Ethernet Port Uplink Speed 10/100/1000 Mbps
Optical Port Uplink Speed 1 Gbps
Description of Function Slots Port 1-16: 16× RJ-45 10/100/1000 Mbps (PoE） Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink) Port 19-20: 2 × SFP 1000 Mbps (uplink)
Power Supply External power supply: 48–57 VDC
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 5%–95% (RH), non-condensing
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Consumption Idling: 7.06 W Full load: 199 W
Performance
Layer Layer 2
Management Type No
Jumbo Frame 40 Gbps
Packet Forwarding Rate 29.76 Mbps
Packet Buffer Size 1 Mbit
MAC Table Size 4K
Communication Standard IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
Feature
PoE Protocol IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
PoE Power Port 1–2 ≤ 90W, Port 3-16 ≤ 30W, total ≤ 190W
PoE Power Consumption Management Yes
PoE Pin Assignment 1,2,4,5（V+）,3,6,7,8（V-）
Long Distance PoE Transmission Yes
General
Statics Protection Air discharge: 8 kV Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV Differential mode: 2 kV
Product Dimensions 64.8 mm × 121.8 mm × 171.0 mm (2.55" × 4.80" × 6.73") (L × W × H)
Packaging Dimensions 311.5 mm × 251.5 mm × 128.5 mm (12.26" × 9.90" × 5.06") (L × W × H)
Casing Material Iron
Installation DIN rail mount; desktop mount
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
