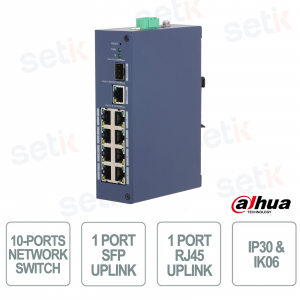

CHS4110-8ET | 10-PORT INDUSTRIAL MANAGED NETWORK SWITCH - DAHUA


Dahua

The Dahua CHS4110-8ET is an industrial Cloud Managed Layer 2 switch designed for professional networks, security systems and industrial environments that require intelligent management and high reliability. Equipped with a total of 10 ports , including 8 RJ45 Fast Ethernet ports , 1 Gigabit RJ45 uplink port and 1 SFP uplink port , it supports Cloud and Web Management with remote monitoring and network topology visualization thanks to the LLDP protocol. Advanced Loop Protection , Port Isolation , Storm Control and VLAN functions improve security, business continuity and data traffic stability. The full metal fanless IP30 design ensures high performance and resistance in harsh environments with operating temperatures from -30°C to +65°C .

Main specifications:

- 10 ports total with 8 RJ45 ports and Gigabit/SFP uplink

- Integrated Cloud and Web Management

- LLDP support for network topology

- Loop Protection and Port Isolation functions

- VLAN and Storm Control support

- Switching capacity up to 5.6 Gbps

- 9216 Byte Jumbo Frame Support

- IP30 fanless full metal industrial design

- Desktop and DIN rail mounting

- Operating temperature from -30°C to +65°C

Further details

✅ Number of doors:
The Dahua switch features a total of 10 ports , including 8 10/100 Mbps Fast Ethernet RJ45 ports , 1 RJ45 Gigabit uplink port , and 1 1000 Mbps SFP uplink port , providing a reliable solution for industrial networks, video surveillance systems, and high-speed fiber optic backbone connections.
✅ Cloud Management:
Cloud Management and the DoLynk Care platform enable real-time remote monitoring, centralized device management, automatic error notifications, and intelligent network maintenance directly from the app or web interface.
✅ Network Topology Management:
Thanks to the support for the LLDP protocol, the switch automatically generates the network topology allowing for the quick identification of connected devices, links and anomalies, facilitating troubleshooting and remote management of the infrastructure.
✅ Loop Protection :
The Loop Protection feature automatically detects any network loops and activates elimination and protection systems that prevent broadcast storms, congestion and data traffic slowdowns, improving network stability and security.
✅ Performance :
 With switching capacity up to 5.6 Gbps , forwarding rate of 4.17 Mpps , support for 9216 Byte Jumbo Frame , 4 Mbit buffer and MTBF exceeding 1.9 million hours , the switch guarantees high performance, stable data transmission and maximum reliability even in complex industrial environments.

Technical data sheet

PRODUCT CHS4110-8ET
Basic
Layer Layer 2
Switching Capacity 5.6 Gbps
Packet Forwarding Rate 4.17 Mpps
Description of Function Slots Port 1-8: 8 × RJ-45 10/100 Mbps
Port 9: 1 × RJ-45 10/100/1000 Mbps (uplink)
Port 10: 1 × SFP 1000Mbps (uplink)
Operating Temperature –30 °C to +65 °C (–22 °F to +149 °F)
Operating Humidity 10%–90% (RH), non-condensing
Protection IP30;IK06
Storage Temperature -40 °C to +85 °C (-40 °F to +185 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply External dual power supply (terminal block and DC): 12 VDC, 1 A
Power Consumption Idling: 1.2 W
Full load: 2.9 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 4 kV
Differential mode: 2 kV
Net Weight 0.4 kg (0.88 lb)
Gross Weight 0.67 kg (1.48 lb)
Product Dimensions 154.4 mm × 110.4 mm × 42 mm (6.08" × 4.35" × 1.65") (L × W × H)
Packaging Dimensions 299 mm × 164 mm × 72 mm (11.77" × 6.46" × 2.83") (L × W × H)
Casing Material Iron
Installation DIN rail mount; desktop mount
Certifications THERE IS
PoE
PoE No
Hardware
DIP Switch Managed mode: Switches between managed and unmanaged mode. Managed mode includes local web management and cloud management. It is on by default.
Port isolation: Prevents traffic from being sent between ports 1-8, but allows ports 1-8 to send its traffic to the uplink ports 9–10. These uplink ports can also send their traffic to 1-8.
Storm control: Limits the speed of all the ports to 5 Mbps.
Reset Button 1
Performance
MTBF 1998124.96 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 9216 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z
VLAN Number 32
Feature
VLAN Function Port-based VLAN
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
Port Self-loop Detection
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × User Manual
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
1 × Terminal Block
