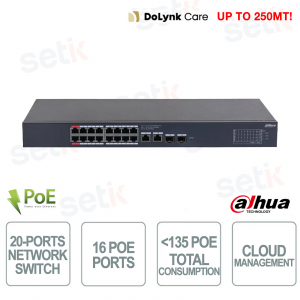

CS4220-16GT-135 V2 Cloud Managed Switch 20 Ports Gigabit PoE 135W with VLAN and SFP - Dahua

CS4220-16GT-135 V2 Cloud Managed Switch 20 Ports Gigabit PoE 135W with VLAN and SFP - Dahua

 
-56%

CS4220-16GT-135-V2 - The cloud managed switch is the ideal solution for professional networks thanks to 16 Gigabit PoE ports , 2 Gigabit RJ45 uplinks and 2 Gigabit SFP ports , with a total PoE budget of 135W and IEEE 802.3af/at/bt support up to 90W on the red ports. It offers advanced management via DoLynk Cloud , real-time monitoring, VLAN, STP, RSTP and Link Aggregation support to ensure network stability and security. The Long Distance PoE function up to 250 meters and the PoE Watchdog system ensure business continuity and intelligent maintenance. Full metal design, surge protection up to 6 kV and operating temperature from -10°C to +55°C make it perfect for video surveillance, offices, hotels and industrial environments. Dahua

Technical Data Sheet

referencia : CS4220-16GT-135-V2

brand : Dahua

EAN: 6937552401914

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2026-02-19 16:06:32 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

CS4220-16GT-135-V2 | 20-Port Cloud-Managed Network Switch with 16 PoE Ports - Version 2 - Dahua


Dahua

The Dahua CS4220-16GT-135-V2 is a professional Cloud Managed switch designed for enterprise networks and high-performance video surveillance systems. With 20 Gigabit ports , including 16 PoE ports with a total budget of 135W , it supports IEEE 802.3af/at/bt power supply up to 90W for high-power devices. Centralized management via DoLynk Cloud , support for VLAN, STP, RSTP and Link Aggregation and the Long Distance PoE function of up to 250 meters ensure maximum network stability and control. Equipped with PoE Watchdog , surge protection up to 6kV and a resistant metal structure, it is ideal for offices, hotels, shops and industrial environments.

Main specifications:

- 16 RJ45 Gigabit PoE ports + 2 RJ45 uplinks + 2 SFP Gigabit ports

- Total PoE budget 135W with IEEE 802.3bt support up to 90W

- Cloud Management via DoLynk platform and Web Management

- Supports VLAN, STP, RSTP and Link Aggregation

- Long Distance PoE up to 250 meters

- Long Distance PoE transmission up to 250 meters

- Intelligent PoE Watchdog function

- Surge protection up to 6 kV

- Operating temperature from -10°C to +55°C

Further details

✅ Number of doors:
The Dahua CS4220-16GT-135-V2 switch features a total of 20 Gigabit ports , including 16 Gigabit RJ45 PoE ports, 2 Gigabit RJ45 uplink ports and 2 Gigabit SFP ports , providing a complete solution for professional networks, IP video surveillance and high-speed enterprise infrastructure.
✅ Cloud Management:
Centralized management via DoLynk Cloud enables real-time remote control of the switch, enabling network monitoring, device management, error notifications, and intelligent maintenance directly via the cloud or web interface.
✅ Network Topology Management:
With support for the LLDP protocol, the switch can create a detailed map of the network topology, facilitating the quick identification of connected devices, anomalies and remote maintenance activities.
✅ Link Aggregation:
Link Aggregation combines multiple physical connections into a single high-speed virtual channel, improving network stability, traffic balancing, and redundancy to ensure business continuity.
✅ Spanning Tree Protocol :
Support for STP and RSTP protocols prevents network loops and broadcast storms by automatically calculating the best path for data transmission and increasing the reliability and security of the Layer 2 network.
✅ BT 90W :
The dedicated ports support the IEEE 802.3bt standard up to 90W , ideal for powering high-power professional devices such as PTZ cameras, speed domes, advanced Wi-Fi access points and advanced network devices via a single Ethernet cable.
✅ Long Distance PoE :
Long Distance PoE technology allows data and power transmission up to 250 meters over Ethernet cable, making the switch perfect for video surveillance installations and extended networks without the need for additional power supplies.
✅ PoE Watchdog :
The intelligent PoE Watchdog function constantly monitors the status of PoE ports and automatically reboots unreachable devices, reducing manual intervention and maintenance costs.
✅ Loop Protection :
The Loop Protection system automatically detects any network loops and activates protection mechanisms to avoid blockages, slowdowns and broadcast storms that could compromise the stability of the infrastructure.
✅ Performance :
 With 40Gbps switching capacity, forwarding rate up to 29.76Mpps , 15KB Jumbo Frame support and 8K MAC table, the switch ensures high performance, smooth data transmission and maximum reliability even in complex professional environments.

Technical data sheet

PRODUCT CS4220-16GT-240-V2
Basic
Layer Layer 2
Switching Capacity 40 Gbps
Packet Forwarding Rate 29.76 Mpps
Description of Function Slots Port 1-16: 16 × RJ-45 10/100/1000 Mbps (PoE)
Port 17-18: 2 × RJ-45 10/100/1000 Mbps (uplink)
Port 19-20: 2 × SFP 1000Mbps (uplink)
Operating Temperature –10 °C to +55 °C (+14 °F to +131 °F)
Operating Humidity 10%–90% (RH), non-condensing
Storage Temperature –40 °C to +75 °C (-40 °F to +167 °F)
Storage Humidity 5%–95% (RH), non-condensing
Power Supply Built-in power supply: 100–240 VAC, 47–63 Hz, max 4 A
Power Consumption Idling: 11.8 W
Full load: 253.5 W
Statics Protection Air discharge: 8 kV;
Contact discharge: 6 kV
Lighting Protection Common mode: 6 kV
Differential mode: 1 kV
Net Weight 2.5 kg (5.51 lb)
Gross Weight 3.2 kg (7.05 lb)
Product Dimensions 440 mm × 228.81 mm × 43.65 mm (17.32" × 9.01" × 1.72") (L × W × H)
Packaging Dimensions 540 mm × 342 mm × 90 mm (21.26" × 13.46" × 3.54") (L × W × H)
Casing Material Sheet metal
Installation Desktop mount; wall mount
Certifications THERE IS
PoE
PoE Yes
PoE Power Port 3-16≤30W, port 1-2≤90W, total≤240W
PoE Protocol IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
PoE Power Consumption Management PoE power consumption management
PoE power on/off
turns off PoE if overload is detected
PoE Pin Assignment Port 1-2: 1,2,4,5 (V+),3,6,7,8 (V-)
Port 3-16: 1.2, (V+), 3.6, (V-)
Long Distance PoE Transmission Yes
Hardware
DIP Switch Managed Mode: On by default for both local web and cloud management. Off for Unmanaged Mode.
PoE Watchdog: Monitors ports 1-16 and auto-restarts the PoE port when there is no traffic for 2 min. (Only works when Managed Mode is Off)
Extend Mode: Ports 1-16; transmission distance up to 250 meters at 10 Mbps. (Only works when Managed Mode is Off)
Reset Button 1
Performance
MTBF 1,092,753 hours
Packet Buffer Size 4 Mbit
Jumbo Frame 15360 Bytes
MAC Table Size 8K
Communication Standard IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3az; IEEE 802.3ad
VLAN Number 32
Feature
Ethernet Loop Protection STP; RSTP
VLAN Function IEEE 802.1Q VLAN
Link Aggregation Static Aggregation
Port Feature IEEE 802.3x Flow Control
Unknown Unicast Suppression
Multicast Storm Control
Broadcast Storm Control
MAC+Port Binding
Loop Prevention
Mirror Local Port Mirroring
N:1 Mirroring
Reliability LLDP
DHCP Function DHCP Client
Security Port Isolation
Equipment Management Web Management
Cloud Management
Logs
Fault Alarm
General
Packing List 1 × Quick Start Guide
1 × Legal and Regulatory Information
1 × Power Cord
1 × Power Adapter
