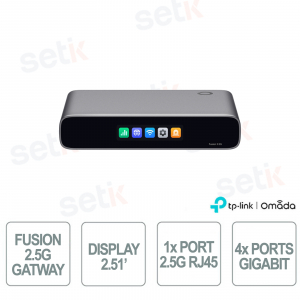

TP-Link Omada Fusion 2.5G Gateway with Cloud Controller, 5 2.5G Ports, VPN, SD-WAN and IPS/IDS

TP-Link Omada Fusion 2.5G Gateway with Cloud Controller, 5 2.5G Ports, VPN, SD-WAN and IPS/IDS

 

Fusion 2.5G is a professional networking solution that integrates Omada gateways and controllers into a single device, with license-free cloud management and centralized multi-site control. Bluetooth configuration enables automatic discovery and rapid deployment of Omada devices. It offers high performance thanks to a Quad-Core CPU , 5 2.5G Ethernet ports , and IPS/IDS throughput up to 2.1 Gbps . The 2.51" color touchscreen allows for diagnostics and troubleshooting directly on the device, while Omada LightLink VPN , QoS, ACL, SD-WAN Full Mesh, and Content Filtering ensure advanced management, security, and remote access to the network. Omada

Technical Data Sheet

referencia : Fusion 2.5G

brand : OMADA

EAN: 1210002633277

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


Fusion 2.5G | FUSION 2.5G GATEWAY


Made Omada

The TP-Link Omada Fusion 2.5G Gateway integrates the Omada gateway and controller into a single device, offering centralized network management with the cloud at no licensing cost . Bluetooth configuration simplifies device discovery and adoption, while the quad-core CPU and 5x 2.5G Ethernet ports ensure enterprise-grade performance. The system supports IPS/IDS up to 2.1Gbps , secure remote access with Omada LightLink VPN, SD-WAN Full Mesh , QoS, ACLs, and Content Filtering. The 2.51" color touchscreen also allows monitoring, diagnostics, and troubleshooting directly from the device.

Main specifications:

  • Integrated Omada Gateway + Controller
  • License-free cloud
  • 5 2.5G Ethernet ports
  • Quad-Core CPU
  • IPS/IDS up to 2.1 Gbps
  • Bluetooth with auto-detection
  • 2.51" touchscreen
  • Omada LightLink VPN
  • SD-WAN Full Mesh
  • QoS, ACLs, and Content Filtering

Further details

✅ Cloud management without licensing costs:
The integrated Omada controller allows you to use management features from day one without additional licenses, supporting multi-site centralized management and remote network control via Omada Cloud Portal , web interface and Omada App .
✅ Simplified setup:
Bluetooth provisioning enables automatic discovery of Omada devices and batch adoption through the Omada App, speeding up network infrastructure setup and deployment.
✅ Enterprise-level performance:
The combination of Quad-Core CPU , 5 x 2.5G Ethernet ports and IPS/IDS throughput up to 2.1Gbps ensures high performance, reduces LAN bottlenecks and guarantees stability even under intensive network loads.
✅ Quick troubleshooting:
The 2.51" color touchscreen allows you to view network status, speed tests, alerts and real-time traffic directly on the gateway , making it easy to diagnose and resolve problems without having to constantly resort to external intervention.
✅ Secure remote network access:
Omada LightLink VPN allows you to securely access your network remotely, while Smart Split Tunneling routes only selected traffic through the VPN, reducing tunnel load and preserving network performance.
✅ Advanced software features:
It integrates application- and category-based ACLs , QoS for traffic prioritization, SD-WAN Full Mesh for up to 20 sites , and Content Filtering with category- and time-of-day rules, providing centralized and granular control of the infrastructure.
✅ Flexible installation options:
Omada Fusion 2.5G can be installed on a desktop, wall-mounted or rack-mounted , adapting to different professional environments and network infrastructures; dedicated wall- and rack-mounting accessories are available and sold separately.

Technical data sheet

Model Fusion 2.5G
Overview
Built-In Omada Applications Network Application
Built-In Omada OS Applications Network Application
Managed Omada Devices Recommended for up to 30 devices§
Client Capacity Recommended for up to 300 connected clients§
Interface
  • 1× 2.5G RJ45 WAN port
  • 4× 2.5G RJ45 LAN/WAN ports
  • Up to 4 simultaneous WAN ports
IPS Throughput 2,183 Mbps*
Site-to-Site VPN Throughput 1.023 Mbps†
Management Cloud, local, and Omada App management
Mounting
  • Desktop
  • Wall-mount (magnetic-mount plate sold separately)
  • Rack-mount (rackmount kit sold separately)
Dimensions 6.3 × 5.12 × 1.24 in (160 × 130 × 31.5 mm)
Built-in Omada Controller§
Cloud Access √
Local Management √
Omada App √
Multi-Site Management Via the Omada Cloud Management Platform
Restore & Backup √
Automatic Device Discovery √
Network Topology √
Dashboard √
Device List / Client List √
Logs / Alerts / Events √
Batch Firmware Upgrade √
Health Monitoring √
Internet Activity √
Captive Portal √
RADIUS / LDAP Authentication √
802.1X Authentication √
OUI-Based VLAN √
Diagnostics Tools Ping Test, Packet Capture, Terminal, Cable Test, Interference Detection, Remote Access, IntelliRecover, Port Mirroring
SNMP 1/v2c/v3
SAFETY
IDS/IPS √
PPE √
Application-Based ACL √
Content Filtering √
Ad Blocker √
Safe Search √
DNS Security √
Firewall √
Attack defense √
ARP inspection √
VPN & SD-WAN
Omada LightLink VPN

√

Site-to-Site VPN WireGuard VPN / IPsec VPN
VPN Server WireGuard VPN / OpenVPN / IPsec VPN / SSL VPN / L2TP VPN / PPTP VPN
VPN Client WireGuard VPN / OpenVPN / L2TP VPN / PPTP VPN
SD-WAN Full Mesh Mode
VPN Throughput
  • Omada LightLink VPN: 527 Mbps
  • IPsec VPN: 1,023 Mbps
  • WireGuard VPN: 605 Mbps
  • OpenVPN: 223 Mbps
  • L2TP VPN: 892 Mbps
  • PPTP VPN: 193 Mbps
  • SSL VPN: 250 Mbps
Networking
WAN Connection Static IP / Dynamic IP / PPPoE / PPTP / L2TP / MAP-E / DS-Lite
Multi-WAN Failover & Load Balancing √
DHCP Server √
VLAN Segmentation √
Bandwidth Control √
QoS √
Static Routing √
Policy Routing √
NAT Port Forwarding / Virtual Server / DMZ / ALG / UPnP / One-to-One NAT / Disable NAT
Dynamic DNS TP-Link DDNS, 3rd-party DDNS, custom DDNS
IPv6 Static IP / SLAAC / DHCPv6 / PPPoE / 6to4 Tunnel / Pass-Through / Non-Address Mode
Hello / mDNS √
IGMP v2/v3 Proxy √
HARDWARE
Touch screen 2.51-inch color LCM touchscreen
Button Reset button
Memory 2 GB DDR4
Power Supply USB-C power adapter, 100–240 V AC, 50/60 Hz input, 5 V DC / 3 A output
Max Power Consumption 8.18 W, with power adapter
Enclosure Polycarbonate
LED Ethernet
Fan √
Net Weight 1.12 lb (510 g)
Surge Protection 4 kV surge protection
ESD Protection ±8 kV (Air), ±4 kV (Contact)
Onboarding Bluetooth or Ethernet
Certifications CE, FCC, RoHS
Environment Operating Temperature: 14 °F to 104 °F (-10 °C to 40 °C)
Storage Temperature: -22 °F to 158 °F (-30 °C to 70 °C)
Operating Humidity: 10% to 90% RH, non-condensing
Storage Humidity: 5% to 90% RH, non-condensing
