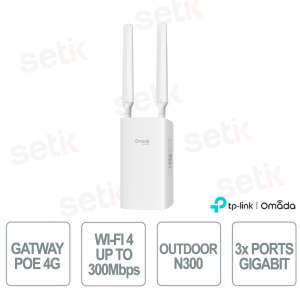

TP-Link Omada ER603WP-4G-Outdoor Gateway 4G Cat4 N300 PoE IP55 with Wi-Fi and VPN

TP-Link Omada ER603WP-4G-Outdoor Gateway 4G Cat4 N300 PoE IP55 with Wi-Fi and VPN

nuevo

The ER603WP-4G-Outdoor is an outdoor 4G Cat4 N300 gateway designed for professional networks, with 4G speeds up to 150 Mbps and Wi-Fi 4 at 300 Mbps on 2.4 GHz . It integrates 3 Gigabit WAN/LAN ports , including 2 PoE Out and 1 PoE In , as well as a Nano SIM slot and load balancing between 4G and Ethernet WAN . It supports IPSec, PPTP, L2TP, OpenVPN, WireGuard and GRE VPN , Omada centralized Cloud management and PoE or DC power supply. IP55 protection, 4 kV lightning protection and wall or pole mounting make it suitable for outdoor installations. Omada

Technical Data Sheet

referencia : ER603WP-4G-Outdoor

brand : OMADA

EAN: 1210002620147

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ER603WP-4G-Outdoor | PoE GATEWAY 4G CAT4 OUTDOOR N300


Made Omada

The TP-Link Omada ER603WP-4G-Outdoor is an outdoor 4G Cat4 N300 PoE gateway designed for professional networks, with mobile speeds up to 150 Mbps and Wi-Fi 4 up to 300 Mbps on 2.4 GHz . It integrates 3 Gigabit WAN/LAN ports , including 2 PoE Out and 1 PoE In , a Nano SIM slot , balance between 4G and Ethernet WAN and centralized management via the Omada platform. It also supports IPSec VPN, PPTP, L2TP, OpenVPN, WireGuard and GRE , PoE or DC power supply, IP55 protection and surge protection up to 4 kV , with wall or pole installation.

Main specifications:

  • 4G Cat4: up to 150 Mbps
  • Wi-Fi 4: up to 300 Mbps
  • Ports: 3 Gigabit WAN/LAN
  • PoE: 2 PoE Out + 1 PoE In
  • SIM: 1 Nano SIM slot
  • WAN: 4G/Ethernet balance
  • VPN: IPSec, WireGuard, OpenVPN and more
  • Protection: IP55 + 4 kV
  • Management: Omada Cloud
  • Mounting: wall or pole

Further details

4G:
4G LTE Cat4 connectivity via Nano SIM offers speeds of up to 150 Mbps download and 50 Mbps upload , with support for the main European LTE FDD/TDD bands and 2 external LTE antennas , ideal for creating Internet connections in outdoor areas or as a backup solution.
Wi-Fi 4:
It integrates 2.4 GHz Wi-Fi 4 (802.11b/g/n) connectivity with speeds up to 300 Mbps , 2 internal Wi-Fi antennas, support for up to 8 SSIDs , Guest network, automatic channel selection and WPA/WPA2 Personal and Enterprise encryption.
Interface:
It features 3 Gigabit WAN/LAN RJ45 ports , with 1 PoE In port and 2 PoE Out ports , as well as 1 4G Cat4 Nano SIM slot ; this configuration allows you to integrate wired, mobile connectivity and PoE power into a single network infrastructure.
Performance:
It supports up to 50,000 concurrent sessions and 2,028 new sessions per second , with NAT throughput close to 1 Gbps in Static IP, DHCP and PPPoE configurations, offering performance suitable for managing professional networks with numerous connected devices.
Power supply:
It offers flexible power supply via Passive PoE, IEEE 802.3af/at/bt or 12V/1A DC adapter ; ports 2 and 3 support 802.3af/at PoE Out , with budgets up to 52W when the gateway is powered via 802.3bt Type 4.
Basic functions:
It integrates professional features such as DHCP Server, IPv6, Stateful ACL, QoS, 802.1Q VLAN, VLAN Bridge, mDNS Repeater and LAN DNS , as well as management of Static IP, Dynamic IP, PPPoE, PPTP and L2TP WAN connections for versatile network configuration.
Advanced features:
It includes Intelligent Load Balance , Application Optimized Routing , Link Backup with Failover , Online Detection, NAT, Static and Policy Routing, bandwidth control and IP session limiting; it also supports SD-WAN in Controller Mode for advanced management of distributed networks.
VPN :
It offers a complete VPN ecosystem with IPSec, PPTP, L2TP, WireGuard, OpenVPN and GRE , supporting up to 6 IPSec tunnels , 6 PPTP tunnels, 6 L2TP tunnels and 18 OpenVPN tunnels ; IPSec also integrates encryption up to AES256 , IKE v1/v2, NAT-T, DPD and PFS for secure remote connections.

Technical data sheet

Model ER603WP-4G-Outdoor
4G
Network Type LTE Band of EU:
4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28 (2100/1800/850/2600/900/800/700)
4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)
3G HSPA+/HSDPA/HSUPA/WCDMA: B1/B5/B8 (2100/850/900 MHz)
SIM Type 1 Nano SIM slot (CAT4 4G)
Frequency
  • Downlink: 150 Mbps
  • Uplink: 50 Mbps
SAFETY
Access Control
  • Source/Destination IP Based ACL
  • Stateful ACL
  • IPv4/IPv6 ACL
  • National Based ACL
DNS Proxy DNSSEC, DoH, DoT, DNS Override
Filtering
  • Web Group Filtering§
  • URL Filtering
  • Web Security§
ARP inspection
  • Sending GARP Packets
  • ARP Scanning§
  • IP-MAC Binding
  • ARP Detection
Attack defense
  • TCP/UDP/ICMP Flood Defense
  • Block TCP Scan (Stealth FIN/Xmas/Null)
  • Block Ping from WAN
HARDWARE FEATURES
Interface 3 Gigabit WAN/LAN Ports
Average
  • 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
  • 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100Ω STP (Max 100 m)
  • 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)
Key Reset Button
Diet Passive/802.3af/at/bt PoE; 12V/1A Adapter
(A passive PoE adapter is provided)
Wi-Fi Frequency & Signal Rate 2.4 GHz: 300 Mbps
Flash 128 MB NAND
DRAM 256 MB DDR3
LED 4G Signal, WLAN, WAN/LAN, SYS
Dimensions (L x W x H) 4.0 × 1.5 × 6.9 in (100.4 × 38.7 × 174.8mm)(excluding antennas)
Antenna 2 internal Wi-Fi antennas
2 external LTE antennas
Bluetooth Yes
Weatherproof Enclosure IP66 for Wall Mount
IP65 for Pole Mount
Mounting type Wall/Pole Mounting (Kits included)
Max. Power Consumption
  • 10 W without PoE
  • 62 W with PoE
PERFORMANCES
Concurrent sessions 50,000
New Sessions / Second 2,028
NAT (Static IP) 944.785 Mbps / 939.201 Mbps
NAT (DHCP) 944.545 Mbps / 927.491 Mbps
NAT (PPPoE) 939.278 Mbps / 928.516 Mbps
NAT (L2TP) 432.126 Mbps / 355.712 Mbps
NAT (PPTP) 513.104 Mbps / 457.323 Mbps
66 Byte Packet Forwarding Rate 1,419,519 pps / 1,418,731 pps
1,518 Byte Packet forwarding rate 81,068 pps / 81,068 pps
IPsec VPN Throughput
  • ESP-SHA1-AES256: 192.432 Mbps
  • ESP-SHA256-AES256: 195.445 Mbps
  • ESP-SHA384-AES256: 48.55 Mbps
  • ESP-SHA512-AES256: 48.363 Mbps
GRE
  • Unencrypted: 425.292 Mbps
  • Encrypted: 164.058 Mbps
WireGuard VPN 50.175 Mbps
OpenVPN 11.369 Mbps
L2TP VPN Throughput
  • Unencrypted: 370.822 Mbps
  • Encrypted: 144.05 Mbps
PPTP VPN Throughput
  • Unencrypted: 408.038 Mbps
  • Encrypted: 35.912 Mbps
WIRELESS FEATURES
Advanced features
  • WPA/WPA2 Personal, WPA/WPA2 Enterprise
  • Multiple SSIDs: 8 in total (8 per radio)
  • Rate Limit: Based on SSID/Client
Guest Network Support
BASIC FUNCTIONS
LAN DNS LAN DNS
WAN Connection Type
  • Static IP
  • Dynamic IP
  • PPPoE (supports MRU Configuration)
  • PPTP
  • L2TP
MAC clone Modify WAN Address
DHCP DHCP Server
DHCPv6 PD Server§
DHCP Options Customization
DHCP Address Reservation
Multi-IP Interfaces
Multi-Net DHCP
WAN DHCP 60
Stateful ACL
Quality of Service
VLAN Bridge
SMS Receive/Send SMS
mDNS Repeater
IPv6 StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode
VLAN 802.1Q VLAN
IPTV IGMP v2/v3 Proxy, Custom Mode, Bridge Mode
ADVANCED FEATURES
Bandwidth control IP-based Bandwidth Control
Load balance
  • Intelligent Load Balance
  • Application Optimized Routing
  • Link Backup (Timing, Failover)
  • Online Detection
NAT
  • One-to-One NAT
  • Multi-Net NAT
  • Virtual Server
  • Port Triggering§
  • NAT-DMZ
  • FTP/H.323/SIP/IPSec/PPTP ALG
  • UPnP
  • Disable NAT
Routing
  • Static Routing
  • Policy Routing
  • RIP§
  • OSPF§
Session Limit IP-based Session Limit
VPN
GRE √ (Only in Standalone Mode)
SD-WAN √ (Only in Controller Mode)
IPsec VPN
  • 6 IPSec VPN Tunnels
  • LAN-to-LAN, Client-to-LAN
  • Main, Aggressive Negotiation Mode
  • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm IPsec
  • Failover
  • IKE v1/v2
  • MD5, SHA1, SHA-256, SHA2-384, SHA2-256 and SHA2-512
  • Authentication Algorithm NAT Traversal (NAT-T)
  • Dead Peer Detection (DPD)
  • Perfect Forward Secrecy (PFS)
PPTP VPN
  • PPTP VPN Server
  • PPTP VPN Client (6)
  • 6 Tunnels
  • PPTP with MPPE Encryption
L2TP VPN
  • L2TP VPN Server
  • L2TP VPN Client (6)
  • 6 Tunnels
  • L2TP over IPSec
OpenVPN
  • OpenVPN Server
  • OpenVPN Client (3)
  • 18 OpenVPN Tunnels
  • "Certificate + Account" Mode
  • Full Mode
WireGuard VPN
Authentication
Web Authentication
  • No Authentication
  • Simple Password
  • Hotspot (Local User / Voucher# / SMS# / Radius#)
  • External Radius Server
  • External Portal Server#
  • LDAP
MANAGEMENT
Omada App Yes
Centralized Management
  • Omada Central (Cloud-Based)
  • Omada Hardware Controller
  • Omada Software Controller
Cloud Access Yes
Service Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)
Maintenance
  • Web Management Interface
  • Remote Management
  • Export & Import Configuration
  • SNMP v1/v2c/v3
  • Diagnostics (Ping & Traceroute)
  • NTP Synchronize§
  • Port Mirroring
  • CLI (only in Standalone Mode)
  • Syslog Support
Management Features Automatic Device Discovery
Intelligent Network Monitoring
Abnormal Event Warnings
Unified Configuration
Reboot Schedule
Captive Portal Configuration
ZTP (Zero-Touch Provisioning)
OTHER
Certification

CE, RoHS

Package Contents
  • ER603WP-4G-Outdoor
  • Mounting Kit
  • Passive PoE Adapter
  • Quick Installation Guide
Environment
  • Operating Temperature: -30°C–60°C (-22°F–140°F)
  • Storage Temperature: -40°C–70°C (-40°F–158°F)
  • Operating Humidity: 5%–95% non-condensing
  • Storage Humidity: 5%–90% non-condensing
