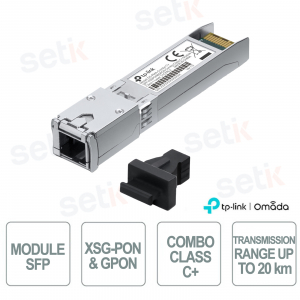

TP-Link DeltaStream DS-PMA-Combo C+ SFP+ Module XGS-PON GPON Class C+ 20 km

TP-Link DeltaStream DS-PMA-Combo C+ SFP+ Module XGS-PON GPON Class C+ 20 km

nuevo

DS-PMA-Combo C+ is a Class C+ XGS-PON/GPON Combo SFP+ module designed for professional PON infrastructures, compatible with XGS-PON, XG-PON and GPON . It supports transmissions up to 20 km on 9/125 µm single-mode fiber with SC connector, offering speeds up to 9.953 Gbps in XGS-PON environment. It integrates hot swap function and diagnostics for monitoring voltage, transceiver power and temperature , simplifying maintenance and operational control of the network. Omada

Technical Data Sheet

referencia : DS-PMA-Combo C+

brand : OMADA

EAN: 8885020620795

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DS-PMA-Combo C+ | SFP MODULE XGS-PON & GPON COMBO CLASS C+


Made Omada

The TP-Link DeltaStream DS-PMA-Combo C+ is a Class C+ XGS-PON, XG-PON, and GPON Combo SFP+ optical module designed for high-performance professional PON networks. It supports a transmission distance of up to 20 km over 9/125 µm single-mode fiber with SC connector and speeds of up to 9.953 Gbps in XGS-PON. It integrates hot swapping , 3.3V power supply, and diagnostic functions for monitoring voltage, transceiver power, and temperature , simplifying management and maintenance of the optical infrastructure.

Main specifications:

  • Technology: XGS-PON / XG-PON / GPON
  • Format: SFP+ Combo C+
  • Distance: up to 20 km
  • Fiber: single-mode 9/125 µm
  • Connector: SC
  • Speed: Up to 9.953 Gbps
  • Hot Swap: Supported
  • Diagnostics: voltage, power, temperature

Further details

Technology:
The TP-Link DeltaStream DS-PMA-Combo C+ is a Class C+ Combo SFP+ optical module compatible with XGS-PON, XG-PON and GPON technologies , enabling the use of different PON standards within fiber optic infrastructures.
Distance:
It supports optical links with a transmission distance of up to 20 km , a feature suitable for the construction of professional PON infrastructures with long-distance fiber links.
Fiber:
It uses 9/125 µm single-mode optical fiber (Single Fiber) , designed for the transmission of XGS-PON, XG-PON and GPON signals through a single fiber.
Connector:
It integrates a Combo PON optical interface with SC connector , allowing the module to be connected to the fiber optic network via a single physical interface.
Speed:
It supports different speeds based on the technology used: XGS-PON up to 9.953 Gbps symmetric , XG-PON up to 9.953 Gbps Tx and 2.488 Gbps Rx and GPON up to 2.488 Gbps Tx and 1.244 Gbps Rx , providing flexibility for different generations of PON networks.
Diagnostics:
It integrates a diagnostic function dedicated to monitoring the module's main operating parameters, including voltage, transceiver power and temperature , facilitating status control and maintenance of the optical infrastructure.

Technical data sheet

Model DS-PMA-Combo C+
Combo PON SFP+ Module
Wave Length XGS-PON:
Tx: 1577 nm
Rx: 1270 nm
XG-PON:
Tx: 1577 nm
Rx: 1270 nm
GPON:
Tx: 1490 nm
Rx: 1310 nm
Connector Device: XGS-PON/XG-PON/GPON SFP+
Fiber: SC/UPC
Fiber Type Dual Power Supplies: DC and 802.3at PoE
DC Adapter: 12.0V/2.5A,
802.3at PoE: 42.5~57V/0.6A
Energy consumption Single Fiber (9/125um)
Data Rate XGS-PON:
Downstream Data Rate: 9.953 Gbps
Upstream Data Rate: 9.953 Gbps
XG-PON:
Downstream Data Rate: 9.953 Gbps
Upstream Data Rate: 2.488 Gbps
GPON:
Downstream Data Rate: 2,488 Gbps
Upstream Data Rate: 1.244 Gbps
Power Level XGS-PON:
Tx Optical Power: +3~+8 dBm
Rx Sensitivity ≤-29 dBm
Rx Saturation Optical Power >-8 dBm
XG-PON:
Tx Optical Power: +3~+8 dBm
Rx Sensitivity ≤-30.5 dBm
Rx Saturation Optical Power >-10 dBm
GPON:
Tx Optical Power: +3~+7 dBm
Rx Sensitivity ≤-32 dBm
Rx Saturation Optical Power >-12 dBm
Extinction Ratio >8.2dB
Rx Optical Power Tolerance >5dBm
Transmission Distance Max. 20 km
Hot Swap Yes
Nominal Voltage 3.3V (< ± 5%)
Diagnostic Function Monitors parameters such as voltage, transceiver power, and temperature
Electrical Level XGS-PON/XG-PON:
Data Interface: CML
GPON:
Data Interface: LVPECL
Control Interface: LVTTL
Package SFP Module DS-PMA-Combo C+
Quick Installation Guide
