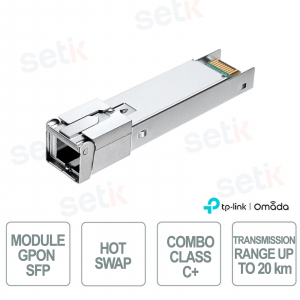

TP-Link Aginet DS-PMA-C+ SFP Module GPON Class C+ Fiber SC/UPC 20 km 2.5 Gbps

TP-Link Aginet DS-PMA-C+ SFP Module GPON Class C+ Fiber SC/UPC 20 km 2.5 Gbps

nuevo

DS-PMA-C+ is a Class C+ GPON SFP module designed for high-performance single-mode fiber optic connections, with transmission up to 20 km . It operates on Tx 1490 nm / Rx 1310 nm wavelengths and uses SC/UPC connector, guaranteeing speeds of up to 2488.32 Mbps in transmission and 1244.16 Mbps in reception . It supports the Hot Swap function and integrates advanced diagnostics for monitoring voltage, transceiver power and temperature. Powered at 3.3 V , it represents a reliable solution for professional GPON infrastructures and FTTH networks . Omada

Technical Data Sheet

referencia : DS-PMA-C+

brand : OMADA

EAN: 1210002607629

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


DS-PMA-C+ | CLASS C+ GPON SFP MODULE


Made Omada

The TP-Link Aginet DS-PMA-C+ is a Class C+ GPON SFP module designed for high-performance single-mode fiber optic networks, with SC/UPC connector and support for links up to 20 km . It operates at the Tx 1490 nm and Rx 1310 nm wavelengths and reaches speeds of 2488.32 Mbps in transmission and 1244.16 Mbps in reception . The module supports the Hot Swap function and integrates advanced diagnostics for monitoring voltage, transceiver power and temperature, with a nominal power supply of 3.3 V.

Main specifications:

  • Technology: SFP GPON Class C+
  • Fiber: Singlemode 9/125 µm
  • Connector: SC/UPC
  • Distance: Up to 20 km
  • Speed: Tx 2488.32 / Rx 1244.16 Mbps
  • Wavelengths: Tx 1490 nm / Rx 1310 nm
  • Hot Swap: Supported
  • Diagnostics: Voltage, power and temperature

Further details

Technology:
The TP-Link Aginet DS-PMA-C+ uses GPON Class C+ SFP technology , with Tx optical power from +3 to +7 dBm , Rx sensitivity < -30 dBm and Hot Swap support , ideal for GPON fiber optic network infrastructures.
Distance:
It supports a transmission distance of up to 20km , enabling long-distance GPON optical links.
Fiber:
It uses Single Fiber 9/125 µm single-mode optical fiber , designed to ensure stable and efficient signal transmission on GPON networks.
Connector:
It integrates a GPON SFP interface with SC/UPC optical connector , a standard solution for connection to single-mode fiber.
Speed:
It offers a Tx transmission speed of up to 2488.32 Mbps and a Rx reception speed of up to 1244.16 Mbps , ensuring high performance in GPON connections.
Wavelengths:
It operates with a wavelength of Tx at 1490 nm for transmission and Rx at 1310 nm for reception of data on the fiber optic network.
Diagnostics:
It integrates a diagnostic monitoring function that monitors key operating parameters such as voltage, transceiver power, and temperature , making it easy to verify the module's status.

Technical data sheet

Model DS-PMA-C+
Combo PON SFP+ Module
Wave Length Tx: 1490 nm
Rx: 1310 nm
Connector Device: GPON SFP
Fiber: SC/UPC
Fiber Type Single Fiber (9/125um)
Data Rate
  • Tx: 2488.32Mbps
  • Rx: 1244.16Mbps
Power Level Class C+ (Tx Optical Power +3~+7dBm,Rx Sensitivity <-30 dbm="" rx="" saturation="" optical="" power="">-12dBm)
Extinction Ratio >8.2dB
Rx Optical Power Tolerance >5dBm
Transmission Distance Max. 20 km
Hot Swap Yes
Nominal Voltage 3.3V (< ± 5%)
Diagnostic Function Monitors parameters such as voltage, transceiver power, and temperature
Electrical Level Data Interface: LVPECL
Control Interface: LVTTL
Package 2×10 SFF
