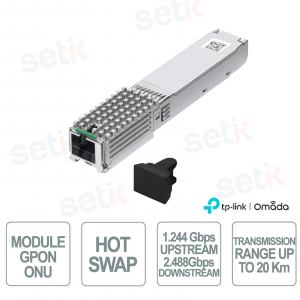

TP-Link XM60A GPON SFP ONU Module 2.488 Gbps SC/APC Fiber 20 km

TP-Link XM60A GPON SFP ONU Module 2.488 Gbps SC/APC Fiber 20 km

nuevo

XM60A is a GPON SFP ONU module compliant with ITU-T G.984.x and G.988 (OMCI) standards, designed to offer Gigabit Ethernet connectivity over optical fiber. It supports speeds of up to 1.244 Gbps upstream and 2.488 Gbps downstream , with links up to 20 km on 9/125 μm single-mode fiber . It integrates SC/APC connector , Tx 1310 nm / Rx 1490 nm wavelengths, Digital Diagnostic Monitoring (DDM) and Hot Swappable technology, ensuring versatility and monitoring in professional GPON infrastructures. Omada

Technical Data Sheet

referencia : XM60A

brand : OMADA

EAN: 8885020621334

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


XM60A | GPON ONU SFP Module


Made Omada

The TP-Link XM60A is a GPON SFP ONU module designed according to ITU-T G.984.x and G.988 (OMCI) standards and compatible with SFP-MSA . It offers speeds of up to 1.244 Gbps upstream and 2.488 Gbps downstream , with links up to 20 km over 9/125 μm single-mode fiber . It integrates SC/APC connector , Tx 1310 nm / Rx 1490 nm wavelengths, DDM support, RSSI indication and Hot Swappable function, making it suitable for switches, routers and other devices compatible with SFP interface.

Main specifications:

  • Technology: GPON SFP ONU
  • Speed: 1.244 / 2.488 Gbps
  • Distance: up to 20 km
  • Fiber: single-mode 9/125 μm
  • Connector: SC/APC
  • Diagnostics: DDM and RSSI
  • Hot Swap: Supported

Further details

Technology:
The TP-Link XM60A is a GPON SFP ONU module compliant with ITU-T G.984.x and G.988 (OMCI) standards and compatible with SFP-MSA , designed to provide Gigabit Ethernet services over fiber optic GPON infrastructures.
Speed:
It supports data rates up to 1.244 Gbps upstream and 2.488 Gbps downstream , providing high performance for data transmission and reception on GPON network.
Distance:
It enables fiber optic connections with a transmission distance of up to 20 km , making it suitable even for network infrastructures distributed over long distances.
Fiber:
It uses 9/125 μm single-mode optical fiber (SMF) , a solution designed for GPON signal transmission over distances of up to 20 km.
Connector:
It integrates an SC/APC optical port , combined with Tx 1310 nm and Rx 1490 nm wavelengths for bidirectional communication on the GPON network.
Diagnostics:
It supports Digital Diagnostic Monitoring (DDM) and RSSI received signal strength indication, allowing monitoring of the module's diagnostic parameters and optical signal.

Technical data sheet

Model XM60A
Combo PON SFP+ Module
Wave Length Tx: 1310 nm
Rx: 1490 nm
Connector SC/APC
Fiber Type Single Fiber (9/125um)
Data Rate Downstream Data Rate: 2,488 Gbps*
Upstream Data Rate: 1,244 Gbps*
Power Level Class C+
Extinction Ratio -28 dBm
Rx Optical Power Tolerance - 8 dBm
Transmission Distance Max. 20 km
Hot Swap Yes
Nominal Voltage 3.3V (< ± 5%)
Diagnostic Function Monitors parameters such as voltage, transceiver power, and temperature
Package GPON ONU SFP Module XM60A
Quick Installation Guide
