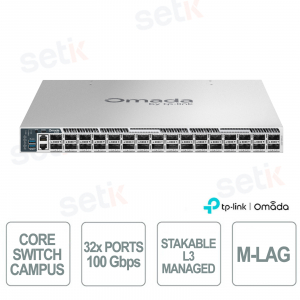

Omada S7500-32C Switch Core L3 32 Ports QSFP28 100G 6.4 Tbps

Omada S7500-32C Switch Core L3 32 Ports QSFP28 100G 6.4 Tbps

 
nuevo

The S7500-32C is a stackable, managed L3 core switch designed for enterprise, campus, and ISP networks, featuring 32 40/100 Gbps QSFP28 slots and up to 6.4 Tbps switching capacity. It supports physical stacking of up to 12 units in standalone mode and M-LAG technologies for increased redundancy and reliability. It integrates advanced Layer 3 features such as OSPF, BGP, IS-IS, VRF, VRRP, ECMP, and PBR , as well as security systems such as Secure Boot, 802.1X, and RADSEC . Centralized management via Omada Pro SDN also enables cloud control, monitoring, and zero-touch provisioning. Omada

Technical data sheet not available

referencia : S7500-32C

brand : OMADA

EAN: 4895252505337

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

S7500-32C | 32 PORT 100G STACKABLE SWITCH


Made Omada

The Omada S7500-32C is a high-performance, stackable, managed L3 core switch designed for enterprise, campus, and ISP networks, with 32 QSFP28 40/100 Gbps slots and switching capacity up to 6.4 Tbps . It supports physical stacking of up to 12 units in standalone and M-LAG modes for improved redundancy and reliability. It integrates advanced Layer 3 features such as OSPF, BGP, IS-IS, VRF, VRRP, ECMP, and PBR , as well as Secure Boot, RADSEC, and 802.1X protections. Centralized management via Omada Pro SDN also supports Zero-Touch Provisioning and cloud control.

Main specifications:

  • Ports: 32× QSFP28 40/100G
  • Switching: 6.4 Tbps
  • Forwarding: 2.8 Bpps
  • Stacking: up to 12 units
  • Layer 3: Advanced Routing
  • Redundancy: M-LAG and dual PSU*
  • Security: Secure Boot, RADSEC, 802.1X
  • Management: Omada Pro SDN / Cloud

Further details

✅ Number of doors:
The Omada S7500-32C integrates 32 QSFP28 40/100G slots , flanked by 2 USB 3.0 ports , RJ45 console port, USB Type-C console and dedicated RJ45 management port, providing high-capacity connectivity for core enterprise and campus networks.
✅ Switching:
It offers up to 6.4 Tbps switching capacity , designed to handle large traffic volumes and ultra-high-speed backbone links in professional network infrastructures.
✅ Forwarding:
It achieves a Packet Forwarding Rate of 2.8 Bpps , enabling high-speed packet processing in enterprise, campus and ISP networks with heavy traffic loads.
✅ Stacking:
It supports physical stacking of up to 12 units in standalone mode and up to 4 units in controller mode , using the 100G QSFP28 slots as stacking ports, with a maximum bandwidth of 6.4 Tbps .
✅ Layer 3:
It integrates advanced Layer 3 routing capabilities with protocols and technologies such as OSPFv2/v3, BGPv4, IS-IS, VRF, VRRPv2/v3, ECMP, PBR, and PIM , designed for scalable networks and complex core infrastructures.
✅ Redundancy:
It supports M-LAG, VRRP, ERPS and BFD and can use two hot-swappable power supply modules to increase availability and business continuity; the second redundant power supply can be purchased separately.
✅ Security:
It has advanced features such as Secure Boot, 802.1X, RADSEC, IP-MAC-Port Binding, Dynamic ARP Inspection, IP Source Guard, DoS Defend, AAA and ACL , designed to strengthen access control and network infrastructure protection.

Technical data sheet

Model S7500-32C
HARDWARE FEATURES
Interface
  • 32× 40/100G QSFP28 Slots
  • 2× USB 3.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
  • 1× RJ45 Management Port
Number of fans Five Field-replaceable and Hot-swappable Fans
Diet Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (L x W x H) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption
  • 311.2 W max @ 220V/50Hz 25 °C
  • 316.7 W max @ 110V/60Hz 25 °C
Max. Heat Dissipation
  • 1061.16 BTU/hr @ 220V/50Hz 25 °C
  • 1080.02 BTU/hr @ 110V/60Hz 25 °C
PERFORMANCES
Buffer (packets) 24 MB
Jumbo frame 9 KB
Stacking
  • Stacking Number: 12 in standalone mode, 4 in controller mode
  • Stacking Port: 100G QSFP28 Slot (all uplink ports can be used as stacking ports)**
  • Stacking Bandwidth: 6.4 Tbps (All 32 QSFP28 slots set as stacking ports)
Switching capacity 6.4 Tbps
Packet Forwarding Rate 2.8 Bpps
ARP Table Max 256K
SOFTWARE FEATURES
M-LAG
  • M-LAG domain configuration
  • DAD (Dual-Active Detection)
  • Peer-link-port LAG
PTP
  • IEEE 1588v2 (PTPv2), IEEE 802.1AS
  • Clock-type: oc, bc, e2etc, p2ptc
QoS (Quality of Service)
  • Class of Service
  • Priority Queues: 8 Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP/ToS Priority
  • Priority Schedule Mode: SP/WRR for Queue
  • Queue Weight Config: For WRR/SP+WRR Mode
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • WRED
L3 Features
  • L3 Interface: 4,094 (IPv4,IPv6)
  • Static Routes: 2,048 IPv4, 1,024 IPv6
  • Host Route Table: Max 22,528 entries
  • IPv4 Network Router Entries: Max 516,096 (shared with IPv6 Network Router entries)
  • IPv6 Network Router Entries: Max 258,048 (shared with IPv4 Network Router entries)
  • ECMP
  • Dynamic ARP: 45056
  • ND: 45,056
  • DHCPv4 Server: Max 512 IP pools
  • DHCPv4/v6 Relay
  • VRRPv2/v3
  • OSPFv2/v3
  • RIPv1/v2
  • RIPng
  • VRF
  • IS-ISv4/v6
  • BGPv4
  • PIM-SM/PIM-DM/PIM-SSM
  • IGMPv1/v2/v3, IGMP Groups: 2048
  • BFD: 16 template numbers, 32 session numbers
  • PBR
  • uRPF
L2 and L2+ functionality
  • LACP / Static LAG
  • STP / RSTP / MSTP / STP Security
  • ERPS
  • Port Isolation
  • Loopback Detection
  • Port Security
  • Sticky MAC
  • 802.3x Flow Control
  • Port Mirror
  • RSPAN
  • LLDP
  • LLDP-MED
  • Multicast
  • IGMP Snooping
  • MLD Snooping
  • Multicast VLAN Registration (MVR)
  • Max Multicast Table: 1K (IPv4, IPv6)
  • Fast Leave
  • IGMP Snooping Querier
  • MLD Snooping Querier
  • Multicast Filtering
  • Unknown Multicast Discard
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
  • AAA (including TACACS+)
  • ACL
  • Secure boot
Multicast
  • IGMP Snooping
  • MLD Snooping
Centralized Management
  • Large-Scale Devices Management
  • OLT Batch Configure, Upgrade, Reboot
  • Multi-Site Management
  • Intelligent Network Monitoring
  • Real-time Network Overview
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management
  • Omada Pro Cloud-Based Controller
  • Omada Pro Hardware Controller
  • Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • S7500-32C Switch
  • Power Cord
  • RJ45 Console Cable
  • Locking Strap
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature:
-5 ℃ to 45 ℃ (23 ℉ to 113 ℉) @ 300 meters
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
