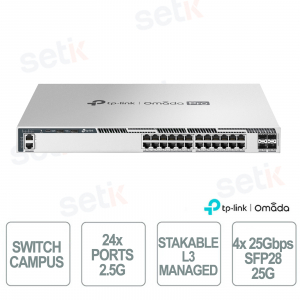

TP-Link Omada S6500-24M4Y Switch Layer 3 Managed 24 Ports 2.5G, 4 SFP28 25G, Stacking and Management Omada Pro SDN

TP-Link Omada S6500-24M4Y Switch Layer 3 Managed 24 Ports 2.5G, 4 SFP28 25G, Stacking and Management Omada Pro SDN

 
nuevo

The S6500-24M4Y is a professional Layer 3 managed switch designed for enterprise, campus, and ISP networks requiring high performance, scalability, and reliability. It integrates 24 2.5 Gbps RJ45 ports and 4 SFP28 slots up to 25 Gbps , with a switching capacity of 320 Gbps and support for physical stacking of up to 12 units . It offers advanced Layer 3 features such as OSPF, BGP, IS-IS, VRRP, ECMP, and PBR , as well as security technologies such as MACsec, Secure Boot, RADSEC, and 802.1X . Centralized management via Omada Pro SDN , along with NETCONF and Zero-Touch Provisioning support, simplifies the configuration, monitoring, and administration of complex networks. Omada

Technical data sheet not available

referencia : S6500-24M4Y

brand : OMADA

EAN: 4895252505474

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

S6500-24M4Y | 24 PORT 2.5G STACKABLE SWITCH


Made Omada

The TP-Link Omada S6500-24M4Y is a high-performance stackable Layer 3 managed switch designed for enterprise, campus, and ISP networks. It features 24 x 2.5Gbps RJ45 ports and 4 x SFP28 slots up to 25Gbps , with a switching capacity of 320Gbps and a forwarding rate of 238.1Mpps. It supports physical stacking of up to 12 units , advanced Layer 3 features such as OSPF, BGP, IS-IS, VRRP, ECMP, and PBR , and security systems including MACsec, Secure Boot, RADSEC, and 802.1X . Omada Pro centralized management , Zero-Touch Provisioning support, and redundant power options ensure network control, uptime, and scalability.

Main specifications:

  • Ports: 24× RJ45 2.5G + 4× SFP28 25G
  • Switching: 320 Gbps
  • Forwarding: 238.1 Mpps
  • Stacking: up to 12 units
  • Layer 3: OSPF, BGP, IS-IS, VRRP, ECMP, PBR
  • Security: MACsec, Secure Boot, RADSEC, 802.1X
  • Management: Centralized Omada Pro Cloud
  • Redundancy: Redundant power supply and physical stacking

Further details

✅ Number of doors:
The Omada S6500-24M4Y features 24 100Mbps/1Gbps/2.5Gbps RJ45 ports and 4 1/10/25Gbps SFP28 slots , plus dedicated console and management ports, providing flexible Multi-Gigabit connectivity for enterprise and campus networks.
✅ Speed:
The 24 2.5 Gigabit ports ensure high-performance wired connections, while the 4 SFP28 uplinks up to 25 Gbps enable high-capacity connections to backbones, servers and other network switches.
✅ Switching:
It offers 320 Gbps switching capacity per unit , designed to handle high volumes of traffic and support high-performance professional network infrastructures.
✅ Forwarding:
R adds a Packet Forwarding Rate of 238.1 Mpps , ensuring fast packet processing and adequate performance even in networks with heavy traffic.
✅ Stacking:
It supports physical stacking of up to 12 units in standalone mode via 25G SFP28 ports , with a stacking bandwidth of up to 200 Gbps using four ports, increasing infrastructure scalability, performance, and redundancy.
✅ Layer 3:
It integrates advanced Layer 3 routing capabilities with OSPFv2/v3, BGPv4, IS-IS, RIP, VRRP, ECMP, PBR and PIM protocols , enabling efficient and dynamic management of complex and scalable enterprise networks.
✅ Redundancy:
It supports two hot-swappable power modules , one supplied as standard and the second purchased separately, as well as VRRP, ERPS and BFD technologies to improve network availability, business continuity and rapid recovery.
✅ Security:
It offers advanced protections such as MACsec AES-128/256, Secure Boot, RADSEC, 802.1X, Port Security, DHCP Snooping, IP-MAC Binding, Source Guard and DoS defense , helping to secure logins, Ethernet traffic and network infrastructure.

Technical data sheet

Model S6500-24M4Y
HARDWARE FEATURES
Interface
  • 24×100Mbps/1Gbps/2.5Gbps RJ45 Ports
  • 4× 1/10/25G SFP28 Slots***
  • 2× USB 3.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
  • 1× RJ45 Management Port
Number of fans Five Field-replaceable and Hot-swappable Fans
Diet Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz)
*Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately.
Dimensions (L x W x H) 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption 72.5 W (110 V/60 Hz)
Max. Heat Dissipation 247.2 BTU/hr (110V/60Hz)
PERFORMANCES
Buffer (packets) 3 MB
Jumbo frame 9 KB
Stacking
  • Stacking Number: 12 (standalone mode)
  • Stacking Port: 25G SFP28 Slot (all uplink ports can be used as stacking ports)***
  • Stack Bandwidth: Up to 300 Gbps (6 stacking ports)
Switching capacity 320 Gbps per Unit
Packet Forwarding Rate 238.1 Mpps
ARP Table 32 K
SOFTWARE FEATURES
QoS (Quality of Service)
  • Class of Service
  • Priority Queues: 8 Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP Priority
  • Queue Min-Bandwidth
  • Schedule Mode (SP, WRR, SP+WRR)
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • User-Defined OUI
  • Smoother Performance
  • Action for Flows
  • QoS remark (802.1P Remark, DSCP Remark)
  • WRED profile: 64
L3 Features
  • L3 Interface: 256 (IPv4,IPv6)
  • Static Routes: 2,048 IPv4, 1,024 IPv6
  • Host Route Table: Max 22,528 entries
  • IPv4 Network Router Entries: Max 40,960 (shared with IPv6 Network Router entries)
  • IPv6 Network Router Entries: Max 40,960 (shared with IPv4 Network Router entries)
  • ECMP: 768 entries, max 32 ECMP Nexthops per Destination
  • Static ARP: 1,024 static entries
  • Dynamic ARP: 45,056 dynamic entries
  • ND: 45,056
  • DHCP Server: Max 64 IP pools, Max 8,000 IP entries
  • DHCPv4/v6 Relay
  • VRRP: Version v2/v3, Max 64 instances, Max 32 Virtual IP per instance
  • OSPFv2
  • OSPF Instance: 16
  • Network Entries: 256 entries
  • Area Entries for Stub or NSSA: 16 per instance
  • Area Range Entries: 16 per instance
  • Virtual-link Entries: 16 per instance
  • OSPFv3
  • Area Entries for Stub or NSSA: 16 per instance
  • Area Range Entries: 16 per instance
  • RIPv1/v2
  • Network Entries: 256
  • Redistribute Entries: 20
  • RIPng
  • IS-IS
  • IS-IS Interfaces: 128
  • IS-IS Area Numbers: 3
  • Max Redistribute Configs: 10
  • IS-IS IPV6
  • IS-IS BFD
  • BGP: Max 20 redistribute configs
  • PIM-SM/PIM-DM/PIM-SSM
  • IP Multicast Route Entries: 1K
  • PIM Neighbors: 256
  • Max PIM Interfaces: 128
  • IGMP: Version v1/v2/v3, Max 2,048 multicast groups
  • BFD: 16 template numbers, 8 session numbers
  • PBR
  • uRPF
L2 and L2+ functionality
  • Link Aggregation
  • Spanning Tree Protocol
  • Port-based and VLAN-based Loopback Detection
  • 802.3x Flow Control
  • ERPS
  • Mirroring
  • RSPAN
  • MAC Address Table
  • Multicast
  • IGMP Snooping
  • MLD Snooping
  • Multicast VLAN Registration (MVR)
  • Max Multicast Table: 4K (IPv4, IPv6)
  • Fast Leave
  • Static Multicast Groups
  • Multicast Filtering
  • IGMP Snooping Authentication
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • Port Isolation
  • CPU-Defend
  • ARP Inspection (Dynamic ARP Inspection)
  • DoS Defend
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
  • AAA (including TACACS+)
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv2
  • IP/Port/MAC-based access control
  • Secure boot
  • RADSEC
MANAGEMENT
Omada App Yes, through Omada Pro Controller
Centralized Management
  • Omada Pro Cloud-Based Controller
  • Omada Pro Hardware Controller
  • Omada Pro Software Controller
Cloud Access Yes, through Omada Pro Controller
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • S6500-24M4Y Switch
  • Power Cord
  • RJ45 Console Cable
  • Locking Strap
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature:
-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
-5 ℃ to 40 ℃ (23 ℉ to 104 ℉) @ 2,000 meters
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
