The S6500-24MPP4Y is a stackable Layer 3 PoE++ managed switch designed for high-performance enterprise and campus networks, with 24 RJ45 2.5 Gbps PoE++ ports up to 90 W per port and 4 SFP28 slots up to 25 Gbps . It offers a total PoE budget of up to 1534 W , a switching capacity of 320 Gbps and a forwarding rate of 238.1 Mpps , ensuring high performance even in complex infrastructures. It supports physical stacking of up to 12 units , advanced Layer 3 features such as OSPF, BGP, IS-IS, VRRP, VRF, ECMP and PBR , as well as security technologies such as MACsec, Secure Boot, RADSEC and 802.1X . The presence of redundant hot-swappable power supplies , M-LAG and centralized management via Omada and Omada Pro Controller improves business continuity, scalability and network control.
BUSQUE INSTALADOR

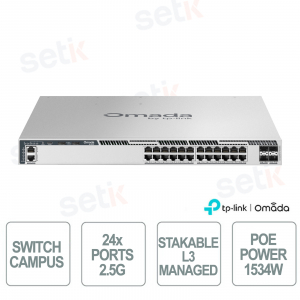

S6500-24MPP4Y | 24 PORT 2.5G STACKABLE SWITCH - PoE
The Omada S6500-24MPP4Y V1.20 is a stackable Layer 3 managed PoE++ switch for enterprise and campus networks, featuring 24 RJ45 2.5 Gbps PoE++ ports up to 90 W per port and 4 SFP28 25 Gbps slots . It offers a PoE budget of up to 1534 W , switching capacity of 320 Gbps and forwarding rate of 238.1 Mpps . Physical stacking , M-LAG functions and Layer 3 routing with OSPF, BGP, IS-IS, VRRP, VRF, ECMP and PBR increase scalability and reliability. It also integrates MACsec, Secure Boot, RADSEC and 802.1X , redundant power supply and Omada/Omada Pro centralized management .
Main specifications:
- Ports: 24× 2.5G PoE++ + 4× SFP28 25G
- PoE++: Up to 90W per port
- PoE Budget: Up to 1534W
- Switching: 320 Gbps
- Forwarding: 238.1 Mpps
- Stacking: Up to 12 switches
- Layer 3: OSPF, BGP, IS-IS, VRRP, VRF
- Security: MACsec, Secure Boot, RADSEC, 802.1X
- Management: Omada and Omada Pro Controller
Further details
✅ Number of doors:
The Omada S6500-24MPP4Y integrates 24 100M/1G/2.5Gbps RJ45 ports for Multi-Gigabit links and 4 1/10/25Gbps SFP28 slots dedicated to high-speed uplinks and stacking, as well as RJ45/USB-C console ports and an RJ45 management port.
✅ PoE:
All 24 RJ45 ports support IEEE 802.3af/at/bt PoE++ , with a maximum power of 90W per port and a total PoE budget of up to 1534W with two PSM900-AC power supplies; Fast PoE, Perpetual PoE and PoE Auto Recovery features are also supported.
✅ Speed:
The RJ45 ports support connections up to 2.5 Gbps , while the 4 SFP28 slots operate at 1/10/25 Gbps , offering uplinks of up to 25 Gbps for high-performance enterprise network infrastructures.
✅ Switching:
It offers a switching capacity of 320 Gbps , with forwarding bandwidth of 160 Gbps , a 32K address MAC table and a 24 Mbit packet buffer , features suitable for managing high volumes of network traffic.
✅ Forwarding:
R adds a Packet Forwarding Rate of 238.1 Mpps , using the Store and Forward transmission method and supporting Jumbo Frames up to 9 KB .
✅ Stacking:
It supports physical stacking via 25G SFP28 ports , with up to 200Gbps bandwidth using 4 stacking ports and up to 12 devices in standalone mode or 4 via Omada Controller , improving scalability, redundancy and network management.
✅ Layer 3:
It integrates advanced Layer 3 routing capabilities with OSPFv2/v3, BGPv4, IS-ISv4/v6, RIP, VRRP, VRF, ECMP, PIM, BFD, PBR, and uRPF protocols , enabling the management of complex and segmented network infrastructures.
✅ Redundancy:
It ensures high availability through physical stacking, M-LAG, VRRP, ERPS and BFD and supports up to 2 hot-swappable power supplies with N+1 redundancy ; the 4 fan modules are also hot-swappable and N+1 redundant .
✅ Security:
It offers advanced network protection with MACsec AES-128/AES-256, Secure Boot, 802.1X, RADSEC, ACL, DHCP Snooping, Dynamic ARP Inspection, IP Source Guard, IPv6 Source Guard and DoS protection , as well as AAA authentication and access control features.
Technical data sheet
| Model | S6500-24MPP4Y |
| HARDWARE FEATURES | |
| Interface |
|
| Number of fans | Five Field-replaceable and Hot-swappable Fans |
| Diet | Two Field-replaceable and Hot-swappable Power Supply Modules*(100–240 VAC, 50/60 Hz) *Shipping with one PSM550-AC module by default, and another field-replaceable redundant power supply requires purchasing separately. |
| PoE ports |
|
| Dimensions (L x W x H) | 17.3 × 16.5 × 1.7 in (440 × 420 × 44 mm) |
| Mounting type | Rackmountable |
| Max. Power Consumption |
|
| Max. Heat Dissipation |
|
| PERFORMANCES | |
| Buffer (packets) | 3 MB |
| Jumbo frame | 9 KB |
| Stacking |
|
| Switching capacity | 320 Gbps per Unit |
| Packet Forwarding Rate | 238.1 Mpps |
| ARP Table | 32 K |
| SOFTWARE FEATURES | |
| QoS (Quality of Service) |
|
| L3 Features |
|
| L2 and L2+ functionality |
|
| Advanced Features |
|
| VLAN |
|
| Safety |
- ARP Scanning - Manual Binding - DHCP Snooping
- DHCPv6 Snooping - Manual Binding - ND Snooping
- Radius Accounting - Radius Server Load Balancing - RADSEC - Guest VLAN - VLAN Assignment - MAB - Guest VLAN - RADIUS authentication and accountability support
|
| MANAGEMENT | |
| Omada App | Yes, through Omada Pro Controller |
| Centralized Management |
|
| Cloud Access | Yes, through Omada Pro Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Pro Cloud-Based Controller. |
| Management Features |
- RMON (1, 2, 3, 9 groups)
|
| OTHER | |
| Package Contents |
|
| System requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux. |
| Environment |
-5 ℃ to 35 ℃ (23 ℉ to 95 ℉) @ 3,000 meters
|
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification
