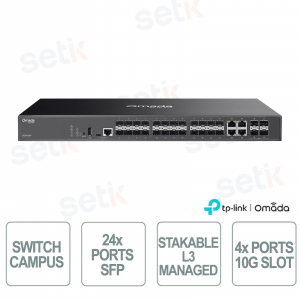

Omada SG5428XF Switch Lite L3 24 SFP Ports, 4 SFP+ 10G and Stacking

Omada SG5428XF Switch Lite L3 24 SFP Ports, 4 SFP+ 10G and Stacking

 
nuevo

The SG5428XF is a managed and stackable Lite Layer 3 switch designed for enterprise and campus networks requiring fiber connectivity, high performance and centralized management. It integrates 20 Gigabit SFP slots , 4 Combo Gigabit RJ45/SFP ports and 4 SFP+ 10 Gbps slots , with a switching capacity of 128 Gbps and a forwarding rate of 95.23 Mpps . It supports physical stacking of up to 4 units , Layer 3 features such as RIP, OSPF, static routing and DHCP Server/Relay and security systems such as ACL, Port Security, DoS protection and 802.1X . The presence of dual internal redundant power supplies , ERPS and centralized management via Omada SDN Controller improves reliability, business continuity and network control. Omada

Technical Data Sheet

referencia : SG5428XF

brand : OMADA

EAN: 1210002602389

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

SG5428XF | STACKABLE 24 PORT SWITCH


Made Omada

The Omada SG5428XF is a managed and stackable Lite Layer 3 switch designed for enterprise and campus networks, featuring 20 Gigabit SFP slots, 4 Gigabit RJ45/SFP Combo ports and 4 10 Gbps SFP+ slots . It offers 128 Gbps switching capacity and 95.23 Mpps forwarding rate , ensuring high performance in traffic management. It supports physical stacking of up to 4 units with bandwidth up to 80 Gbps, Layer 3 functions such as OSPF, RIP, static routing and DHCP Server/Relay , as well as dual internal redundant power supplies . Omada SDN centralized management , ERPS and ACL, Port Security, DoS Defend and 802.1X security features complete a reliable and scalable solution for professional infrastructures.

Main specifications:

  • Ports: 20× SFP + 4× Combo RJ45/SFP
  • Uplink: 4× SFP+ 10G
  • Switching: 128 Gbps
  • Forwarding: 95.23 Mpps
  • Stacking: up to 4 units
  • Layer 3: OSPF, RIP, static routing
  • Redundancy: dual power supply + ERPS
  • Security: ACL, 802.1X, Port Security, DoS
  • Management: Omada SDN Controller

Further details

✅ Number of doors:
The Omada SG5428XF features 20 100/1000 Mbps SFP slots and 4 Gigabit RJ45/SFP Combo ports , overall providing flexible configuration for fiber and copper links in enterprise and campus networks.
✅ Uplink:
It integrates 4 SFP+ 1/10 Gbps slots , which can be used to create high-speed uplinks up to 10 Gbps and also as dedicated stacking ports, facilitating the expansion of the network infrastructure.
✅ Switching:
It offers 128 Gbps of switching capacity per unit and 64 Gbps of forwarding bandwidth , features designed to handle high volumes of traffic in professional network infrastructures.
✅ Forwarding:
R adds a Packet Forwarding Rate of 95.23 Mpps , with Store and Forward technology , 16K address MAC table and Jumbo Frame support up to 9 KB .
✅ Stacking:
It supports physical stacking of up to 4 switches , using the 10G SFP+ slots as stacking ports and achieving a stacking bandwidth of up to 80 Gbps with 4 ports , increasing scalability and network continuity.
✅ Layer 3:
It integrates Lite Layer 3 functionality with OSPFv2/v3, RIPv1/v2, RIPng, IPv4/IPv6 static routing and DHCP Server/Relay , allowing you to manage routing and segmentation even in complex network infrastructures.
✅ Redundancy:
It has two internal power supplies that operate as mutual backup , supports physical stacking of up to 4 units and ERPS , a technology designed to guarantee protection and rapid recovery of connections in ring topologies.
✅ Security:
It offers advanced features such as ACL, Port Security, DoS Defend and 802.1X , as well as DHCP Snooping, IP Source Guard, IPv6 Source Guard, ARP Inspection, RADSEC and AAA authentication , to increase access control and network protection.

Technical data sheet

Model SG5428XF
HARDWARE FEATURES
Interface
  • 20× 100/1000 Mbps SFP Slots
  • 4× Gigabit RJ45/SFP Combo Ports
  • 4× 1/10 Gbps SFP+ Slots*
  • 1× USB 2.0 Ports
  • 1× RJ45 Console Port
  • 1× USB Type-C Console Port
Number of fans 1 Fan
Diet 100-240 V~50/60 Hz
Dimensions (L x W x H) 17.3 × 8.7 × 1.7 in (440 × 220 × 44 mm)
Mounting type Rackmountable
Max. Power Consumption
  • 28.3 W (220V/50Hz @ 25 °C)
  • 28.98 W (110V/60Hz @ 25 °C)
Max. Heat Dissipation
  • 96,503 BTU/hr (220V/50Hz @ 25°C)
  • 98,822 BTU/hr (110V/60Hz @ 25°C)
PERFORMANCES
Buffer (packets) 12 Mbit
Jumbo frame 9 KB
Stacking
  • Stacking Number: 4
  • Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)
  • Stacking Bandwidth: Up to 80 Gbps (4 stacking ports)
Switching capacity 128 Gbps per Unit
Packet Forwarding Rate 95.23 Mpps
ARP Table 16 K
SOFTWARE FEATURES
QoS (Quality of Service)
  • Class of Service
  • 8 Priority Queues
  • Port Priority
  • IEEE 802.1p Priority
  • DSCP Priority
  • Queue Min-Bandwidth
  • Schedule Mode (SP, WRR, SP+WRR)
  • Bandwidth Control
  • Rate Limit
  • Storm Control
  • Voice VLAN
  • User-Defined OUI
  • Smoother Performance
  • Action for Flows
  • QoS remark (802.1P Remark, DSCP Remark)
L3 Features
  • IP Interfaces:
- IPv4: Max 128, IPv6: Max 128
  • ARP
- Static Entries 512
- Dynamic Entries 3,600
  • ND Dynamic Entries 3,600
  • Static Route
- IPv4: Max 512, IPv6: Max 128
  • Host Route
- IPv4: Max 1,024, IPv6: Max 890
  • Network Route
- IPv4: Max 1,796, IPv6: Max 450
  • RIP: Version v1/v2
  • RIPng
  • OSPF: Version V2/V3
  • ARP Proxy
  • DHCP Server:
- Max 64 IP Pools
- Max 8,000 Leases
- Max 1,000 Manual Binding Entries
  • DHCP Relay:
- Relayed Interface
- Relayed VLAN
L2 and L2+ functionality
  • Link Aggregation
  • Spanning Tree Protocol
  • Port-based and VLAN-based Loopback Detection
  • 802.3x Flow Control
  • ERPS
  • Mirroring
  • RSPAN
  • MAC Address Table
  • Multicast
- IGMP Snooping
- MLD Snooping
- L2 Multicast Table: Max 2,000
- Fast Leave
- Multicast VLAN Registration (MVR)
- Max Multicast Table: 4K (IPv4, IPv6)
- Multicast Filtering
- IGMP Snooping Authentication
Advanced Features
  • Automatic Device Discovery‡
  • Batch Configuration‡
  • Batch Firmware Upgrading‡
  • Intelligent Network Monitoring‡
  • Abnormal Event Warnings‡
  • Unified Configuration‡
  • Reboot Schedule‡
ISP Features:
  • 802.3ah Ethernet Link OAM
  • L2PT (Layer 2 Protocol Tunneling)
  • Device Link Detect Protocol (DLDP)
  • DDM
  • sFlow
VLAN
  • 802.1Q VLAN(802.1q): 4K VLANs
  • MAC VLAN: 200 entries
  • Protocol VLAN (IEEE 802.1v)
  • 16 Protocol VLAN Templates
  • 12 Protocol VLAN Groups
  • QinQ(VLAN VPN): 256 entries
  • Private VLAN
  • GVRP
Safety
  • Port Isolation
  • CPU-Defend
  • ARP Inspection (Dynamic ARP Inspection)
  • DoS Defend
  • IP-MAC-Port Binding
-1,024 Entries
- ARP Scanning
- Manual Binding
- DHCP Snooping
  • IPv6-MAC-Port Binding
-1,024 Entries
- DHCPv6 Snooping
- Manual Binding
- ND Snooping
  • ARP Inspection (Dynamic ARP Inspection)
  • ND Detection
  • IP Source Guard
  • IPv6 Source Guard
  • RA Guard: 30 entries
  • DoS Defend
  • DHCP Filter
  • 802.1X
- Radius Authentication
- Radius Accounting
- Radius Server Load Balancing
- RADSEC
- Guest VLAN
- VLAN Assignment
- MAB
- Guest VLAN
- RADIUS authentication and accountability support
  • AAA (including TACACS+)
  • Secure web management through HTTPS with SSLv3/TLS 1.2
  • Secure Command Line Interface (CLI) management with SSHv2
  • IP/Port/MAC-based access control
  • Secure boot
  • RADSEC
MANAGEMENT
Omada App Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
  • Omada Cloud-Based Controller (Requires built-in version 5.15.22 or later)
  • Omada Hardware Controller (Requires built-in version 5.15.20 or later)
  • Omada Software Controller (Requires built-in version 5.15.20 or later)
Cloud Access Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning Yes. Requiring the use of Omada Pro Cloud-Based Controller.
Management Features
  • Web-based GUI
  • Command Line Interface (CLI) through console port, telnet
  • SNMPv1/v2c/v3
- Trap/Inform
- RMON (1, 2, 3, 9 groups)
  • SDM Template
  • DHCP/BOOTP Client
  • 802.1ab LLDP/LLDP-MED
  • DHCP Auto Install
  • Dual Image, Dual Configuration
  • CPU Monitoring
  • Password Recovery
  • SNTP
  • System Log
OTHER
Package Contents
  • SG5428XF Switch
  • Power Cord
  • Console Cable
  • Rackmount Kit
  • Rubber Feet
  • Quick Installation Guide
System requirements Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
  • Operating Temperature: -5 °C to 45 °C (23 °F to 113 °F)
  • Storage Temperature: -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
