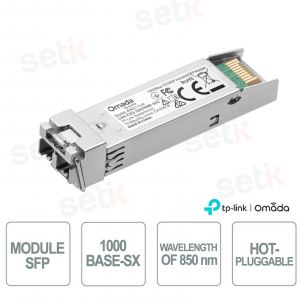

Omada ISM311LM Industrial 1000Base-SX Multimode SFP Module 550m

Omada ISM311LM Industrial 1000Base-SX Multimode SFP Module 550m

 
nuevo

The ISM311LM is an industrial 1000Base-SX SFP module designed to extend Gigabit connections over multimode optical fiber up to 550 meters . It operates at a wavelength of 850 nm and offers a data rate of 1.25 Gbps , supporting 50/125 μm and 62.5/125 μm fibers with a Duplex LC/UPC connector. It integrates Digital Diagnostic Monitoring (DDM) for diagnostic monitoring and complies with the SFP-MSA standard. The hot-swappable design facilitates installation and replacement, while the wide operating range of -40 °C to 85 °C makes it suitable for industrial applications and environments with extreme thermal conditions. Omada

Technical Data Sheet

referencia : ISM311LM

brand : OMADA

EAN: 1210002601979

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ISM311LM | SFP 1000BASE-SX MMF MODULE


Made Omada

The Omada ISM311LM is an industrial 1000Base-SX SFP module designed for reliable Gigabit connections over multimode optical fiber , with a transmission distance of up to 550 meters . It operates at 850 nm with a data rate of 1.25 Gbps and supports 50/125 μm and 62.5/125 μm fibers via a Duplex LC/UPC connector. It integrates Digital Diagnostic Monitoring (DDM) , SFP-MSA compatibility and hot-swappable functionality for greater installation flexibility. The operating range of -40 °C to 85 °C makes it suitable for switches and network infrastructures in industrial environments.

Main specifications:

  • Technology: 1000Base-SX SFP
  • Speed: 1.25 Gbps
  • Fiber: multimode
  • Distance: up to 550 m
  • Connector: Duplex LC/UPC
  • Wavelength: 850 nm
  • Diagnostics: DDM
  • Installation: Hot-Swappable
  • Temperature: -40°C to 85°C

Further details

✅ Technology:
The Omada ISM311LM is an IEEE 802.3z and SFP-MSA compliant 1000Base-SX industrial SFP module , designed to extend Gigabit network links over fiber optics in industrial applications.
✅ Speed:
It supports a data rate of 1.25 Gbps , ensuring Gigabit data transmission through multimode fiber optic links.
✅ Fiber:
It uses multimode optical fiber (MMF) and supports 50/125 μm or 62.5/125 μm diameter fibers , offering flexibility in integrating with compatible optical infrastructures.
✅ Distance:
It enables multimode fiber connections with a maximum distance of up to 550 meters , making it suitable for extending connectivity between switches and industrial network devices.
✅ Connector:
It integrates a Duplex LC interface with a Duplex LC/UPC connector , designed to create bidirectional optical links via multimode fiber.
✅ Wavelength:
The transceiver operates at a wavelength of 850 nm , specific for 1000Base-SX optical transmission over multimode fiber .
✅ Diagnostics:
It supports Digital Diagnostic Monitoring (DDM) technology , which enables diagnostic monitoring of transceiver operating parameters, facilitating control and management of the SFP module.

Technical data sheet

Model ISM311LM
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
Dimensions (L x W x H) 2.2*0.5*0.4 in (56.4*13.4*11.0 mm)
TRANSCRIBER
Standards & Protocols IEEE 802.3z,TCP/IP
Wave Length 850 nm
Diet 3.3V
Fiber Type 50/125 μm or 62.5/125 μm
Multi-mode
Max. cable length 550m
Data transmission speed 1.25 Gbps
Connector LC/UPC
Regulatory Compliance FCC, CE
Environment
  • Operating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F)
  • Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F)
  • Operating Humidity: 5%~85% non-condensing
  • Storage Humidity: 5%~85% non-condensing
PACKAGE CONTENT
Package Content ISM311LM
Installation Guide
