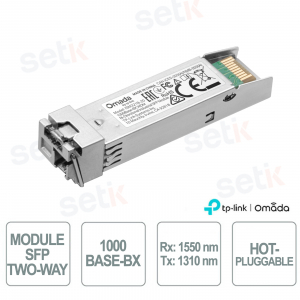

Omada ISM321B-20 SFP Module 1000Base-BX WDM Singlemode 20km

Omada ISM321B-20 SFP Module 1000Base-BX WDM Singlemode 20km

 
nuevo

The ISM321B-20 is a bidirectional 1000Base-BX WDM industrial SFP module designed for Gigabit links over 9/125 μm single-mode optical fiber using a single fiber, optimizing cabling and costs. It supports a transmission distance of up to 20 km , a data rate of 1.25 Gbps and operates with Tx 1310 nm / Rx 1550 nm via a Simplex LC/UPC connector. It integrates Digital Diagnostic Monitoring (DDM) , SFP-MSA compatibility and Hot-Swappable technology for flexible management. The operating range of -40 °C to 85 °C makes it suitable for industrial networks and infrastructures in harsh environmental conditions. Omada

Technical Data Sheet

referencia : ISM321B-20

brand : OMADA

EAN: 1210002602013

Manufacturer Object ( [id] => 53 [name] => OMADA [description] =>

Un aspecto clave de OMADA es su capacidad para ofrecer una gestión centralizada. Esto puede hacerse mediante un controlador de hardware dedicado, un controlador de software o el servicio en la nube Omada SDN, que permite la gestión centralizada de las redes. Las soluciones ofrecidas son escalables y flexibles, lo que las hace adecuadas tanto para pequeñas redes corporativas como para grandes despliegues multisede.

OMADA incluye soluciones inalámbricas con puntos de acceso Wi-Fi de alto rendimiento, que garantizan una cobertura fiable y de alta velocidad. Además, ofrece conmutadores gestionados y routers pasarela con funciones avanzadas de gestión del tráfico, seguridad y calidad de servicio (QoS).

La seguridad es otro de los puntos fuertes de las soluciones de OMADA, que incluyen funciones avanzadas como cortafuegos, VPN y control de acceso para proteger las redes corporativas. Además, la plataforma en la nube de OMADA permite la configuración y supervisión remota de las redes, ofreciendo una gran flexibilidad en la gestión de TI.

Para las empresas, OMADA proporciona una solución que puede reducir los costes operativos gracias a una gestión centralizada que simplifica el mantenimiento de la red. Los componentes de hardware de alta calidad garantizan un rendimiento estable y fiable, mientras que las interfaces intuitivas y las herramientas de gestión facilitan la administración de la red incluso al personal no técnico

Los principales productos de OMADA incluyen puntos de acceso para interiores y exteriores con tecnologías avanzadas como Wi-Fi 6, conmutadores gestionados con capacidades de Capa 2 y Capa 3, y dispositivos de seguridad y enrutamiento para la gestión del tráfico de red y la protección frente a amenazas. Las soluciones de OMADA se utilizan habitualmente en oficinas corporativas para gestionar redes internas, en escuelas y universidades para proporcionar conexiones Wi-Fi a estudiantes y personal, y en hoteles para ofrecer una conexión a Internet estable y rápida a los huéspedes.

[short_description] =>

Tp-Link Omada

OMADA es una marca de soluciones de gestión de redes empresariales de TP-Link. El sistema OMADA incluye tanto hardware como software diseñados para centralizar la gestión de redes inalámbricas, conmutación y pasarelas. Este enfoque está diseñado para mejorar el control y la gestión de las infraestructuras de red, especialmente en entornos empresariales.

[id_address] => [date_add] => 2024-06-13 09:45:42 [date_upd] => 2025-08-25 11:30:31 [link_rewrite] => omada [meta_title] => [meta_keywords] => [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


ISM321B-20 | 1000BASE-BX WDM Bidirectional SFP Module


Made Omada

The Omada ISM321B-20 is a bidirectional 1000Base-BX WDM industrial SFP module designed for Gigabit connections over 9/125 μm single-mode optical fiber using a single fiber, reducing cabling complexity. It supports a distance of up to 20 km , a data rate of 1.25 Gbps and operates with Tx 1310 nm / Rx 1550 nm via a Simplex LC/UPC connector. It integrates Digital Diagnostic Monitoring (DDM) , SFP-MSA compatibility and Hot-Swappable technology, ensuring flexible installation and management. The operating range of -40 °C to 85 °C makes it suitable for industrial networks and infrastructures.

Main specifications:

  • Technology: 1000Base-BX Bidirectional WDM
  • Speed: 1.25 Gbps
  • Fiber: single-mode 9/125 μm
  • Distance: up to 20 km
  • Connector: LC Simplex LC/UPC
  • Wavelengths: Tx 1310 nm / Rx 1550 nm
  • Diagnostics: DDM
  • Temperature: -40°C to 85°C

Further details

✅ Technology:
The Omada ISM321B-20 is an industrial 1000Base-BX SFP module with bidirectional WDM technology , designed to transmit and receive data over a single optical fiber , optimizing cabling and infrastructure costs.
✅ Speed:
It supports a data rate of 1.25 Gbps , ensuring reliable Gigabit connectivity for fiber optic links within industrial networks and infrastructures.
✅ Fiber:
It uses 9/125 μm single-mode optical fiber (SMF) , ideal for long-distance links and for taking advantage of WDM bidirectional transmission on a single strand.
✅ Distance:
It allows a maximum transmission distance of up to 20 km on a single fiber , making it suitable for extending Gigabit links between distant industrial network devices.
✅ Connector:
It integrates a Simplex LC interface with LC/UPC connector , designed to manage bidirectional transmission and reception through a single single-mode fiber.
✅ Wavelength:
The ISM321B-20 model operates at 1310 nm in transmission (Tx) and 1550 nm in reception (Rx) , working in pair with a complementary WDM module for bidirectional communication on the same fiber.
✅ Diagnostics:
It supports Digital Diagnostic Monitoring (DDM) to check the transceiver operating parameters and is also SFP-MSA and Hot-Swappable compatible , facilitating installation, monitoring and maintenance.

Technical data sheet

Model ISM321B-20
HARDWARE FEATURES
DDM Yes
SFP-MSA Yes
Hot Swappable Yes
Dimensions (L x W x H) 2.2*0.5*0.4 in (56.4*13.4*11.0 mm)
TRANSCRIBER
Standards & Protocols IEEE 802.3z,TCP/IP
Wave Length Tx: 1310 nm
Rx: 1550 nm
Diet 3.3V
Fiber Type 9/125 µm
Singlr-mode
Max. cable length 20 km
Data transmission speed 1.25 Gbps
Connector LC Simplex
Regulatory Compliance FCC, CE
Environment
  • Operating Temperature: -40˚C~ 85˚C (-40˚F~ 185˚F)
  • Storage Temperature: -40℃~85℃ (-40˚F~ 185˚F)
  • Operating Humidity: 5%~85% non-condensing
  • Storage Humidity: 5%~85% non-condensing
PACKAGE CONTENT
Package Content ISM321LB-20
Installation Guide
