PFS3005-5GT-L-V2 | 5 PORT GIGABIT ETHERNET NETWORK SWITCH - PLUG AND PLAY

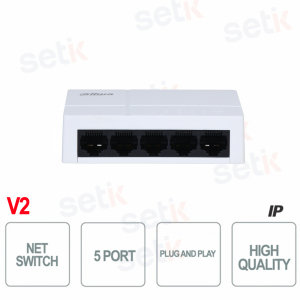

Dahua PFS3005-5GT-L2 is a 5-port unmanaged Gigabit switch, designed to provide high performance and ease of use in home and small office environments. With a compact and lightweight design, it supports transmission speeds of up to 1000 Mbps on each port, ensuring stable and fast connection. Plug-and-play configuration allows for immediate installation without the need for complex configurations. Equipped with ESD and lightning protection, it ensures greater durability and reliability over time. Low power consumption makes it efficient for 24/7 continuous operation.
Main specifications:
- 5 Gigabit Ethernet ports: Supports 10/100/1000 Mbps speeds for fast and stable connections
- Compact and lightweight design: Easy to install and carry, suitable for small spaces
- Plug-and-play: No configuration required, ready to use immediately
- Advanced Protection: Equipped with ESD protection (8 kV air discharge, 4 kV contact) and lightning protection (2 kV common mode)
- Energy efficiency: Consumption of 0.67W in standby and 1.6W at full load, ideal for 24/7 operations
Further details
✅ Plug and Play:
✅ Energy efficiency:

Technical data sheet
Hardware | PFS3005-5GT-L-V2 |
Power adapter included | Yes |
Ethernet Port | 5 |
Ethernet Port Speed | 10/100/1000 Mbps |
Description of Function Slots | Port 1-5: 5 × 10/100/1000 Base-T |
Power Supply | 5VDC; 1A |
Operating Temperature | 0 °C to +45 °C (+32 °F to +113 °F) |
Operating Humidity | 5%–95% (RH) |
Storage Temperature | –40 °C to +70 °C (–40 °F to +158 °F) |
Storage Humidity | 5%–95% (RH) |
Power Consumption | Idle: 0.5W Full load: 1.5W |
Performance | |
MTBF | 363.24 years |
Switching Capacity | 10 Gbit |
Packet Forwarding Rate | 7.44 Mpps |
Packet Buffer Size | 1 Mbit |
MAC Table Size | 2K |
General | |
Statics Protection | Air discharge: 8kV Contact discharge: 4kV |
Lighting Protection | Common mode: 2kV |
Net Weight | 0.12 kg (0.26 lb) |
Gross Weight | 0.23 kg (0.51 lb) |

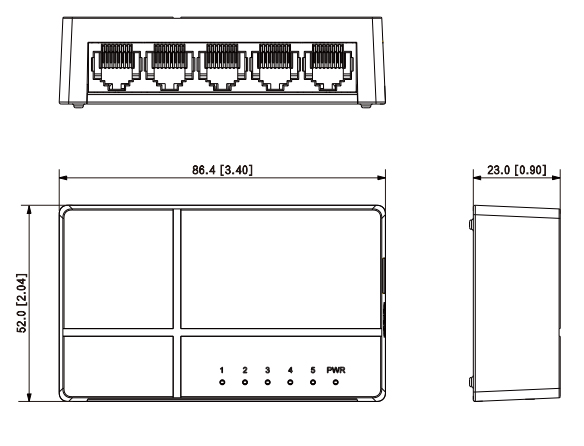

Product Dimensions | 86.4 mm × 52.0 mm × 23.0 mm (3.40" × 2.05" × 0.91") |
Packaging Dimensions | 94.0 mm × 111.0 mm × 67.0 mm (3.70" × 4.37" × 2.6") |
Casing Material | Plastic |
Installation | Desktop mount |
Certifications | CE; FCC |
