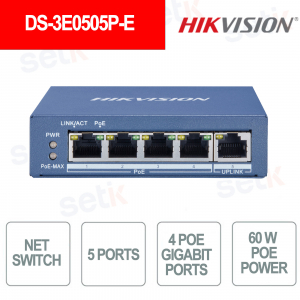

DS-3E0505P-E | 5-PORT ETHERNET SWITCH - 10Gbps SWITCHING CAPACITY

Hikvision

The Hikvision DS-3E0505P-E Gigabit PoE switch is the ideal solution for video surveillance networks and professional applications, thanks to 4 Gigabit PoE ports and 1 RJ45 port. It supports IEEE 802.3af/at standards, offers a total power of 60W, and ensures stable and secure data transmission with 6KV surge protection. The compact, fanless metal design ensures reliability, silence, and a long life.

Main specifications:

- 4 Gigabit PoE ports + 1 RJ45 port

- PoE power up to 60W (30W per port)

- IEEE 802.3af/at Standard

- 10 Gbps switching capacity

- 6KV surge protection

- Compact, robust and fanless design

Further details

✅ Number of doors:
It features 4 Gigabit PoE ports for directly powering IP cameras and other compatible devices, as well as 1 Gigabit RJ45 port for connecting to the main network. This configuration allows you to easily manage small systems without the need for additional switches.
✅ Resolution / Data Transmission :
It supports 10/100/1000 Mbps Gigabit transmission with store-and-forward mode, ensuring smooth and stable communications even with high-definition video streams, minimizing packet loss.
✅ PoE Power:
Compatible with IEEE 802.3af/at standards, it offers up to 30W per port and a total budget of 60W , allowing you to power multiple PoE devices simultaneously with surge protection up to 6KV to ensure safety and continuity of service.
✅ Switching Capacity:
With a switching capacity of 10 Gbps and a packet forwarding rate of 7.44 Mpps , it ensures high network performance without blocking, ideal for applications that require speed and reliability such as video surveillance and enterprise systems.

Technical data sheet

Model DS-3E0505P-E
Network parameters
Port Number 4 × Gigabit PoE ports, and 1 × Gigabit RJ45 port
Port type RJ45 port, full duplex, MDI/MDI-X adaptive
Standard IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z
Forwarding mode Store-and-forward switching
MAC address table 2 K
Switching capacity 10 Gbps
Packet forwarding rate 7.44 Mpps
Internal cache 1 Mbits
PoE Power Supply
Standard PoE IEEE 802.3af, IEEE 802.3at
PoE power pin Support 4-core power supply, and Ethernet cable 1/2/3/6 provide power supply.
PoE port Ports 1 to 4
Max. port power 30 W
PoE power budget 60 W
Max. power consumption 38 W
General
Shell Metal material, fan-free design
Gross weight 0.84 kg (1.85 lb)
Net weight 0.26 kg (0.57 lb)
Dimensions (L × H × D) 105 mm × 27.6 mm × 83.1 mm (4.1” × 1.1” × 3.3”)
Operating temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage temperature -40 °C to 85 °C (-40 °F to 185 °F)
Operating humidity 5% to 95% (no condensation)
Storage humidity 5% to 95% (no condensation)
Power supply 48 VDC, 1.35 A
Power consumption at idle 5 W
