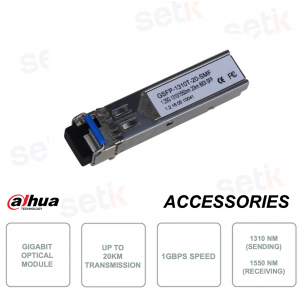

Dahua GSFP-1310T-20-SMF 1Gbps 20km SFP Optical Module for Fiber Networks

Dahua GSFP-1310T-20-SMF 1Gbps 20km SFP Optical Module for Fiber Networks

BEST PRICE -57%

GSFP-1310T-20-SMF - is a Gigabit optical module designed for long-distance data transmission via single-mode fiber. With a transmission rate of 1 Gbps , it supports a distance of up to 20 km , making it ideal for applications in industrial environments and large network infrastructures. It uses a wavelength of 1310 nm for transmission and 1550 nm for reception, with an LC connector. The module is hot-pluggable , compatible with the SFP standard, and operates in a wide temperature range from -40 ° C to + 85 ° C , ensuring reliability even in extreme environmental conditions. It complies with RoHS and SFP MSA standards, ensuring compatibility and safety in network installations. Dahua

Technical Data Sheet

referencia : GSFP-1310T-20-SMF

brand : Dahua

EAN: 2123456791792

Disponibilità: 18

Manufacturer Object ( [id] => 13 [name] => Dahua [description] =>

La empresa asiática, fundada en 2001, debe su reputación a la excelente calidad de sus productos en términos de rendimiento y capacidad. La gama de productos de Dahua abarca desde los sistemas clásicos de CCTV hasta los sistemas de seguridad más complejos y articulados: no sólo la videovigilancia, sino también el control de acceso, los sistemas de videoportería, los productos de detección térmica y mucho más. La fiabilidad, la tecnología de punta y los precios competitivos que ofrece Dahua son sólo algunas de las razones por las que Setik siempre ha elegido distribuir la marca. Dahua es desde hace años un sólido punto de referencia en el mercado internacional de los circuitos cerrados de televisión, gracias a las enormes inversiones que cada año se dedican a la investigación y el desarrollo. Las cifras hablan por sí mismas: desde 2016 hasta hoy Dahua ha registrado más de 800 patentes con su propia marca. Actualmente Dahua puede presumir de estar entre los 10 primeros líderes mundiales en el mundo de la seguridad. Este año Dahua fue premiado con el 2º puesto en el ranking "2019 TOP SECURITY 50".

Los productos de la marca Dahua vendidos por Setik SRL pueden ser entregados como productos OEM, es decir, productos que a todos los efectos son productos originales de Dahua, pero que tienen una apariencia estética diferente reservada para el mercado en línea (generalmente en términos de logotipo y embalaje). Esto no afecta en modo alguno a la garantía y a las características técnicas del producto, que es siempre genuino de Dahua, ni a las actualizaciones y la funcionalidad.

[short_description] =>

Videosorveglianza Dahua

Zhejiang Dahua Technology Co., Ltd. es uno de los principales proveedores mundiales de soluciones de videovigilancia, con más de 13.000 empleados y 35 filiales activas en todo el mundo.

[id_address] => [date_add] => 2012-07-14 17:53:54 [date_upd] => 2025-06-24 15:40:21 [link_rewrite] => dahua [meta_title] => Los mejores productos Dahua: DVR, HCVR,NVR, IPC,SD,PTZ,HDCVI, [meta_keywords] => dahua,hdcvi,ip,hd-sdi,dahua technology,dvr dahua,nvr dahua,hybrid dahua,telecamere dahua,dahua dvr,dahua italia,registratori dahua [meta_description] => Productos Dahua para la videovigilancia digital IP, HYBRIDA, HD-SDI, HDCVI, como cámaras, grabadoras, control de acceso, accesorios y videointercomunicadores wifi. [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

GSFP-1310T-20-SMF | FIBER OPTIC MODULE 1310NM SEND - 1550NM RECEIVE


Dahua

Dahua GSFP-1310T-20-SMF optical module is designed to ensure reliable and high-speed data transmission in harsh industrial environments. With single-mode single-fiber technology and Plug and Play compatibility, it is ideal for network solutions in sectors such as telecommunications, video surveillance, and transportation. It works in extreme conditions without the need for configuration.

Main specifications:

- Optical transmission: 1310 nm in transmission and 1550 nm in reception

- Range: up to 20 km on single mode fiber

- LC interface with Gigabit speed 1 Gbps

- Wide operating temperature range: –40°C to +85°C

- Plug and Play technology, ready to use without configuration

- Industrial compatibility: suitable for switches, terminals and harsh environmental contexts

Further details

Single Mode Single Fiber:
The module uses a single-conductor single-mode fiber , which allows data to be transmitted and received on a single fiber, optimizing the infrastructure and reducing costs in scenarios where fiber is limited or expensive.
1310 nm transmit / 1550 nm receive :
Communication occurs via transmission at 1310 nm and reception at 1550 nm , ensuring stability, low signal loss and reliable performance even over long distances.
Range up to 20 km :
Designed for long-distance links , the module supports transmissions of up to 20 kilometers , making it perfect for distributed networks, industrial plants, and network backbones between buildings or campuses.
Plug and Play Technology:
No configuration required: the module is fully hot-pluggable and ready to use. This feature allows for quick installation or replacement, simplifying network management.
Extended industrial compatibility:
Built with a rugged design, it operates over a wide temperature range from –40°C to +85°C , making it suitable for critical applications in industries such as energy, finance, customs, transportation, pipelines and extreme outdoor environments.

GSFP-1310T-20-SMF

Technical data sheet

MODEL HAC-HFW1239C-IL-A-S3
Hardware
Optical Fiber Type Single mode single fiber
Optical Port Type LC
Speed 1 Gbps
Performance
Wavelength 1310 nm sending; 1550 nm receiving
Transmission Distance 20 km
Relative Humidity 5%–95%
Operating Temperature –40 °C to +85 °C (–40 °F to 185 °F)
Storage Temperature –40–85 °C
Max. Speed of Optical Port 1 Gbps
Product Dimensions 55.5 mm × 13.4 mm × 8.5 mm (2.20" × 0.53" × 0.33")
