Il DS-3E0105-O di Hikvision, è uno switch di rete 5 Porte RJ45, con tassi di trasmissione 100Mbps - Capacità di swicthing pari a 1Gbps - Cache interna 0.448Mbits - Packet Forward Rate: 0.744Mbps - Realizzato in metallo - Per installazione a parete o applicazione a scrivania.
ALARMA HIKVISION×
  SPECIAL DISCOUNTS AND FREE SHIPPING!
DS-PWA64-Kit-WE |  DS-PWA96-M2H-WE  |  DS-PWA96-Kit-WE
 Take advantage now >>
LIQUIDACION TOTAL ×
 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

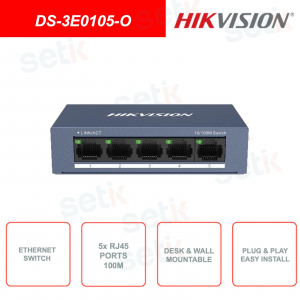

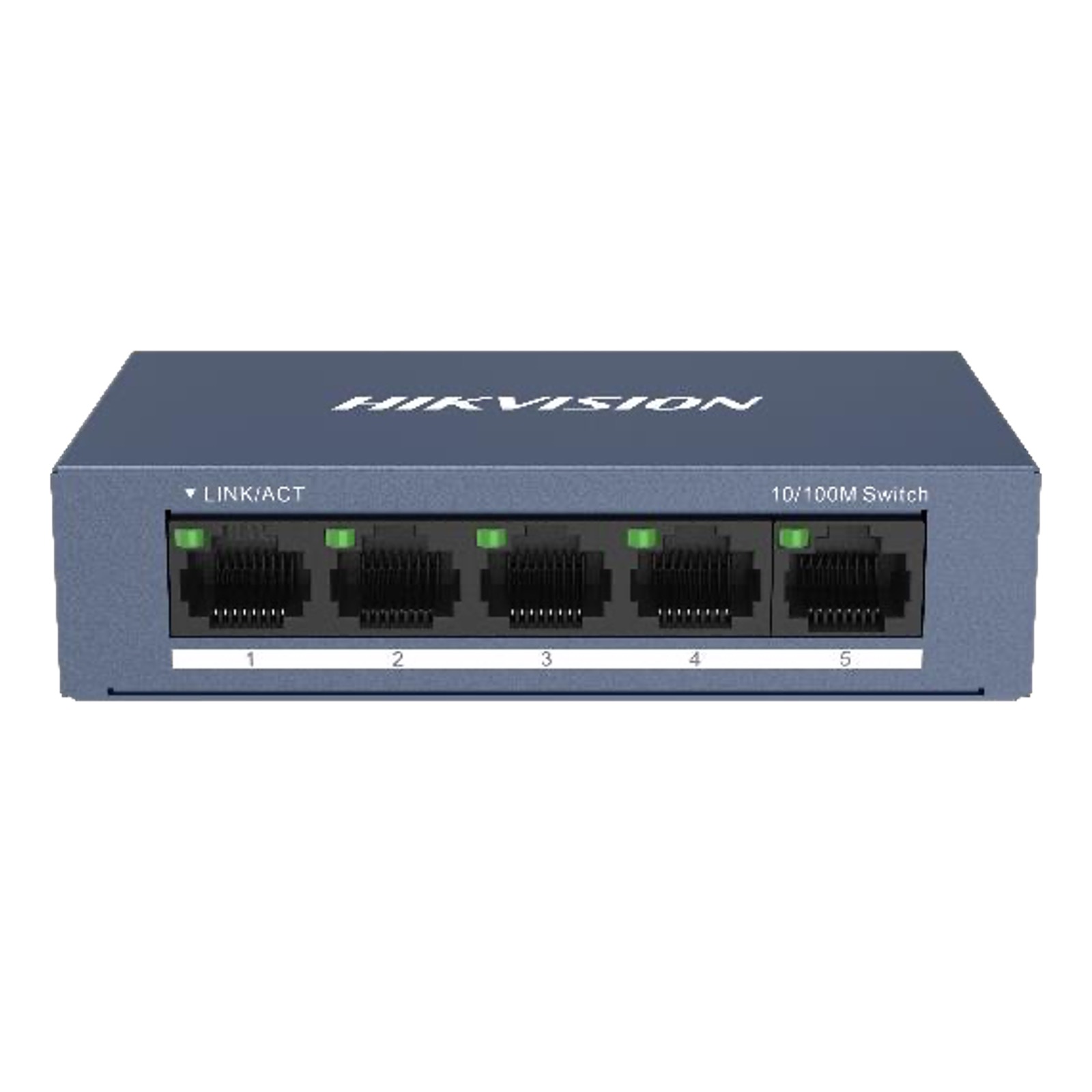

SWITCH DI RETE 5 PORTE ETHERNET RJ45 100MBPS - HIKVISION - DS-3E0105-O

Switch di rete Ethernet - Hikvision - DS-3E0105-O
5 Porte Ethernet RJ45 100Mbps - Mac Address 1K - Capacità di commutazione 1Gbps - Packet Forwarding Rate: 0.744 Mpps - Cache interna: 0.448 Mbits - Alimentazione: 5 VDC, 1A - Standard supportati: IEEE 802.3,IEEE 802.3u,IEEE 802.3x - Installazione: a scrivania o a parete - Materiale di fabbricazione: metallo.
Dettagli prodotto

- Switch di rete - Hikvision - DS-3E0105-O
- 5 Porte Ethernet RJ45 100M
- Standard Supportati:IEEE 802.3,IEEE 802.3u,IEEE 802.3x
- Capacità di switching: 1Gbps
- Standard supportati: IEEE 802.3,IEEE 802.3u,IEEE 802.3x
- Forwarding Mode: Store-and-forward switching
- Packet Forwarding Rate: 0.744 Mpps
- Cache interna: 0.448 Mbits
- In Metallo
- Design senza ventola
- Plug & Play (non necessita di installazione di driver, pronto all'utilizzo)

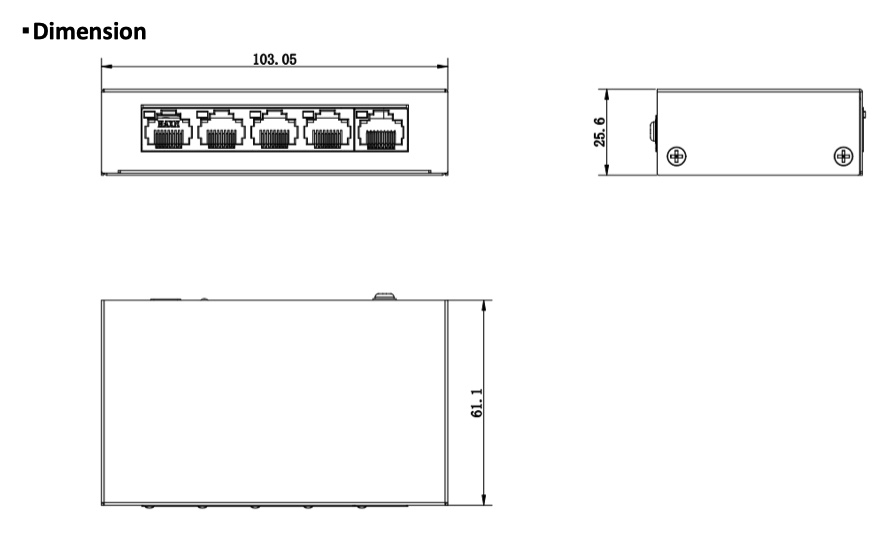

- Dimensioni: 103.05 mm × 25.6 mm × 61.1 mm
- Peso netto: 0.3Kg
- Temperatura di funzionamento supportata: -40 °C to 85 °C
- Alimentazione: 5 VDC, 1A
Scheda tecnica
| Model | DS-3E0105-O | |
| Network Parameters | Ports | 5 × 100 Mbps RJ45 port |
| Port Type | RJ45 port | |
| Working Mode | Standard mode (default) | |
| Standard | IEEE 802.3,IEEE 802.3u,IEEE 802.3x | |
| Forwarding Mode | Store-and-forward switching | |
| MAC Address Table | 1K | |
| Switching Capacity | 1 Gbps | |
| Packet Forwarding Rate | 0.744 Mpps | |
| Internal Cache | 0.448 Mbits | |
| General | Dimensions (W × H × D) | 103.05 mm × 25.6 mm × 61.1 mm (4.06'' × 1.01'' × 2.41'') |
| Shell | Metal material, fan-free design | |
| Gross Weight | 0.3 kg (0.6615 lb) | |
| Net Weight | 0.15 kg (0.3307 lb) | |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) | |
| Operating Humidity | 5% to 95% (no condensation) | |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) | |
| Storage Humidity | 5% to 95% (no condensation) | |
| Power Supply | 5 VDC, 1A | |
| Power Consumption in Idle | <5W | |
| Max. Power Consumption | 5W | |
| Approval | EMC | FCC (ANSI C63.4, 47 CFR PART 15B); CE-EMC/RCM (EN 55032: 2015+A11:2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020); IC (ICES-003: Issue 19) |
| Safety | UL (UL 62368-1); CB (IEC 62368-1:2014); CE-LVD (EN 62368- 1:2014+A11:2029) | |
| Chemistry | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2018) | |
