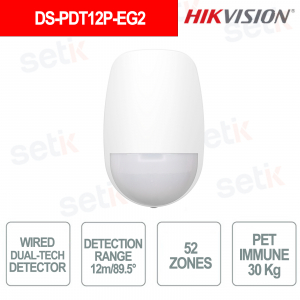

DS-PDD12P-EG2 24GHz Pet Immunity Dual Tech PIR Microwave Detector 12m False Alarm Prevention - Hikvision

DS-PDD12P-EG2 24GHz Pet Immunity Dual Tech PIR Microwave Detector 12m False Alarm Prevention - Hikvision

 
-35%

DS-PDT12P-EG2 - is a wired dual-tech PIR and 24GHz microwave detector designed to ensure high reliability in the protection of indoor environments. Thanks to 3D Fresnel technology with 52 detection zones , coverage up to 12 meters and pet immunity function up to 30 kg , it ensures precise detections while reducing false alarms. IFT anti-interference technology, digital temperature compensation and sealed optics against insects improve stability and operational safety. Equipped with tamper protection, automatic sensitivity and quick installation on walls or ceilings, it represents an ideal professional solution for advanced intrusion detection systems. Hikvision

Technical Data Sheet

referencia : DS-PDT12P-EG2

brand : Hikvision

Manufacturer Object ( [id] => 42 [name] => Hikvision [description] =>

Desde el año de su nacimiento, su prestigio ha crecido tanto que en 2015 se convertirá en la primera realidad mundial en materia de seguridad.

A partir de 2016 Hikvision expande su mercado convirtiéndose en Proveedor de Soluciones Totales para todo el mercado de la seguridad. Así entra en el mundo de la detección de intrusos y luego se acerca a las nuevas tecnologías e inteligencia al servicio de la humanidad ocupándose de IO, Visión Artificial, Robótica y Sistemas Automovilísticos. De líder en seguridad, Hikvision se convierte con compromiso, pasión y competencia en una empresa de alta tecnología con una visión 4.0, siempre apuntando alto.

Por lo tanto, Setik se siente honrado de ser un distribuidor de Hikvision. Como siempre, ofreceremos productos de última generación y el apoyo técnico y comercial adecuado.

[short_description] =>

Videosorveglianza Hikvision

Hikvision fue fundada en 2001 con el objetivo de crear y desarrollar soluciones profesionales completas de videovigilancia, convirtiéndose rápidamente en un líder en el mundo de la seguridad.

[id_address] => [date_add] => 2020-03-26 09:28:09 [date_upd] => 2024-06-06 12:13:26 [link_rewrite] => hikvision [meta_title] => Seguridad hikvision [meta_keywords] => Seguridad hikvision [meta_description] => Hikvision fue fundada en 2001 y pronto se convirtió en líder del mundo de la videovigilancia. Descubra ahora los productos del catálogo! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

DS-PDT12P-EG2 | WIRED DUAL-TECH DETECTOR

Hikvision

The Hikvision DS-PDD12P-EG2 is a 24GHz dual-tech wired PIR and microwave detector designed to ensure high reliability in indoor protection. Thanks to 3D Fresnel technology with 52 detection zones , coverage up to 12 meters and pet immunity function up to 30 kg , it ensures precise detections while reducing false alarms. IFT anti-interference technology, digital temperature compensation and sealed optics against insects improve stability and operational safety. Equipped with tamper protection, automatic sensitivity and quick installation on walls or ceilings, it represents an ideal professional solution for advanced intrusion detection systems.

Main specifications:

- 24GHz Dual-Tech PIR + Microwave Wired Detector

- Detection coverage up to 12 meters

- Detection angle 85.9°

- 3D Fresnel technology with 52 zones

- Pet Immunity up to 30 kg

- IFT anti-false alarm technology

- Digital temperature compensation

- Sealed insect-proof optics

- Front tamper protection

- Automatic sensitivity and pet mode

- White light filter up to 6500 lux

- Wall or ceiling installation

- 9-16 VDC power supply with reverse polarity protection

- Compatibility with optional Hikvision brackets

- EN Grade 2 certification for intrusion detection systems

Further details

✅ Detection Performance:
The Hikvision detector uses Dual-Tech PIR + 24GHz Microwave technology with coverage up to 12 meters and a detection angle of 85.9° , ensuring precise control of the environment thanks to the 52 3D Fresnel zones with anti-creep protection and Pet Immunity function up to 30 kg to reduce false alarms.
✅ Features :
Featuring advanced IFT anti-interference technology, digital signal processing and sealed insect-proof optics , the sensor delivers high detection performance even in challenging environments, while also integrating digital temperature compensation and front tamper protection for increased operational safety.
✅ Interface:
The device integrates a Normally Closed (NC) alarm output and dedicated LED indicators for PIR, Microwave and Alarm status, simplifying installation, configuration and monitoring of the intrusion system operation.
✅ Transmission :
Thanks to professional wired transmission, the detector guarantees high operational stability, reliable communication and greater security than wireless systems, making it ideal for professional indoor intrusion detection systems.
✅ Power supply:
It supports 9-16 VDC power supply with 12VDC nominal voltage and reverse polarity protection, ensuring low power consumption of only 17mA and maximum reliability in professional security systems.

Technical data sheet

DS-PDT12P-EG2
Detection Performance
Detection Method Passive Infrared; Microwave
Detection Range 12 m
Detection Angle 85.9°
Detection Zones 52
Detectable Speed 0.3～2m/s
Sensitivity Car; Pet
Pet Immunity 30kg
White Light Filter 6500lux
Microwave Frequency 24GHz(24.15～24.25GHz)
Digital Temperature Compensation Support
Creep Zone Protection Support
Features
Digital Processing Support
Sealed Optics Support
Tamper Protection Front
Interfaces
Alarm Output Normally Closed
LED Indicator Green(PIR), Orange(Microwave), Blue(Alarm)
Transmission
Transmission Method Wired
Electrical Characteristics
Power Supply 9 to 16 VDC
Typical Voltage 12 VDC
Power Consumption Maximum current：25mA@12VDC Quiescent current：17mA@12VDC
General
Operation Temperature -10 °C to 55 °C (14 °F to 131 °F)
Storage Temperature -20 °C to 60 °C (-4 °F to 140 °F)
Operation Humidity 10% to 90%
Dimensions (WxHxD) 65.7 mm (2.59") × 103.8 mm (4.09") × 45.5 mm (1. 79")
Weight 99g (3.5 oz)
Mounting Height 1.8 m to 2.4 m
Mounting Method Wall
Application Scenario Indoor
Bracket Optional wall & ceiling accessory
