The iiyama ProLite TF3215MC-B2AG 32" projected capacitive touch screen monitor offers precise and responsive interaction, ideal for kiosks, information totems, vending machines and industrial solutions. Equipped with a Full HD IPS panel, it guarantees vivid colors and extremely wide viewing angles. The scratch-resistant (AG) glass front protection and edge-to-edge design make it perfect for intensive applications in public environments. Compatible with horizontal, vertical and face-up installation, it is extremely versatile and integrable. The metal case and Open Frame frame ensure robustness, mounting flexibility and a professional look, while 12-point touch support allows for a smooth and engaging user experience.
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

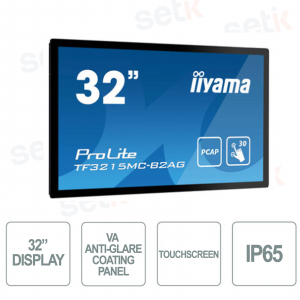

TF3215MC-B2AG – Prolite 32" Touchscreen Display Monitor
The iiyama ProLite TF3215MC-B2AG 32" touch screen monitor is designed to integrate seamlessly into professional interactive solutions, such as information totems, digital kiosks, vending machines and industrial environments. Thanks to 12-point projected capacitive touch technology, it guarantees a precise, fluid and multi-touch user experience. The Full HD IPS panel ensures sharp images, bright colors and wide viewing angles, making it ideal for applications that require visibility from multiple perspectives. The scratch-resistant front glass with anti-glare treatment and the edge-to-edge design increase resistance and ease of cleaning, while the Open Frame metal chassis allows for perfect integration even in custom structures. It supports horizontal, vertical and face-up installation, offering maximum flexibility in any operating context.
Main features:
- 32" Full HD display (1920x1080)
- 12-point capacitive touch screen
- IPS panel
- Scratch-resistant glass with anti-reflective coating (AG)
- Edge-to-edge design with Open Frame chassis
- Versatile installation (horizontal, vertical, face-up)
Further details
Supports up to 12 simultaneous touches for precise, smooth and reliable interaction, ideal for advanced interactive applications.
Additional protection for integration into kiosks or embedded solutions, useful for preventing the ingress of dust and dirt.
Tempered glass surface tested to resist impacts, ensuring durability in public and industrial environments.
Works perfectly even through protective glass up to 6mm, ideal for safe installations in exposed environments.
Advanced remote device management system , useful for IT managers and network administrators, with monitoring and control functions from a centralized dashboard.
Designed for continuous and intensive use, perfect for information kiosks, vending machines and mission-critical applications.
Technical data sheet
| Model | TF3215MC-B2AG |
| DISPLAY CHARACTERISTICS | |
| Design | Open Frame |
| Diagonal | 31.5", 80cm |
| Panel | VA, Anti-Glare coating |
| Native resolution | 1920 x 1080 (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 500 cd/m² typical |
| Brightness | 425 cd/m² with touch |
| Static contrast | 3000:1 with touch |
| Light transmittance | 85% |
| Response time | 8ms |
| Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 16.7mln 8bit |
| Horizontal Sync | 30 - 68kHz |
| Viewable area W x H | 698.4 x 392.8mm, 27.5 x 15.5" |
| Pixel pitch | 0.3637mm |
| Bezel color and finish | black |
| Recommended usage | retail |
| TOUCH | |
| Touch technology | projective capacitive |
| Touchpoints | 30 (HID, only with supported OS) |
| Touch accuracy | +- 2mm |
| Touch method | finger, glove (latex), capacitive stylus |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Through Glass | 6mm |
| INTERFACES / CONNECTORS / CONTROLS | |
| Analog signal input | VGA x1 |
| Digital signal input | HDMI x1 DisplayPort x1 |
| HDCP | Yes |
| FEATURES | |
| Extra | Touch Through-Glass, Anti-glare coating |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Glass hardness | 6H |
| 60950 Ball drop test | yes |
| Impact testing | IK-7 |
| Water and dust protection | IP65 (front) |
| Housing (bezel) | metal |
| Water tight seal | yes |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, JP |
| Control buttons | Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls | contrast, brightness, auto adjust, H.position, V.position, phase, OSD H.position, OSD V.position, OSD timeout, reset, input select, OSD language, color temperature, sharpness, touch switch (normal, glove, through-glass) |
| Plug&Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, portrait |
| Fanless design | yes |
| VESA mounting | 200 x 200mm |
| Cable management system | cable cover |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50000 hours |
| ACCESSORIES INCLUDED | |
| Cables | Power, USB, HDMI |
| Guides | quick start guide, safety guide |
| Cable cover | yes |
| POWER MANAGEMENT | |
| Power Supply Unit | external |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 32W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Energy efficiency class (Regulation (EU) 2017/1369) | F |
| Other | REACH SVHC above 0.1%: Lead |
| DIMENSIONS & WEIGHT | |

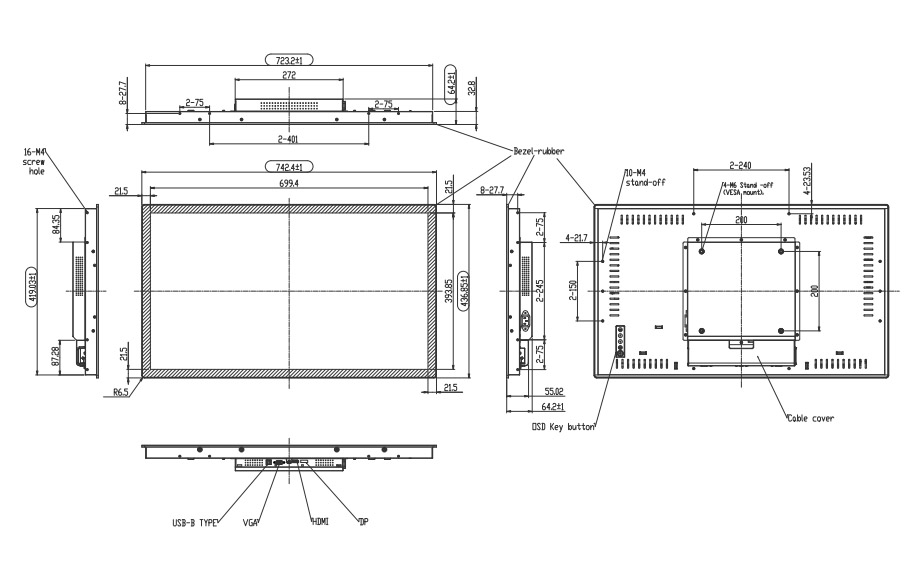

| Product dimensions W x H x D | 745.5 x 437 x 61mm |
| Box dimensions W x H x D | 890 x 630 x 155mm |
| Pallet volume | 21pcs |
| Pallet dimensions W x H x D | 1000 x 2040 x 1200mm |
| Weight (without box) | 10 kg |
| Weight (with box) | 12.85kg |
