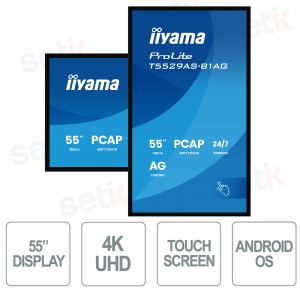

T5529AS-B1AG - IIYAMA - 55 inch monitor VA AG - 4K UHD - touchscreen

T5529AS-B1AG - IIYAMA - 55 inch monitor VA AG - 4K UHD - touchscreen
nuevo

The iiyama ProLite T5529AS-B1AG 55 " 4K UHD monitor with Android 14, 20-point capacitive touch and iiSignage² is the ideal solution for digital signage, kiosks and huddle spaces. It offers Touch Through-Glass, Signal FailOver , touch pen compatibility, USB-C Loop Through , anti-glare glass and 24/7 operation. Full connectivity: USB-C, HDMI, LAN, Wi-Fi, RS232 and VESA mounting. Perfect for interactive applications in public and professional environments.

Technical Data Sheet



referencia : T5529AS-B1AG

brand : IIYAMA

EAN: 4948570125586

Manufacturer Object ( [id] => 23 [name] => IIYAMA [description] =>

Usted puede elegir y comprar en línea el monitor de videovigilancia que mejor se adapte a sus necesidades, dada la amplia gama de monitores y la alta calidad. Es una marca multinacional entre las primeras por importancia en el campo de los monitores de videovigilancia y ahora en Setik se puede comprar cómodamente en Italia, directamente online.

¿Por qué adoptar un monitor Iiyama?
Iiyama ofrece una amplia gama de monitores para la videovigilancia, ideales para salas de reuniones y experiencias interactivas tanto entre colegas como entre la empresa y los clientes.

[short_description] =>

Monitores IIYAMA

MONITOR DE IIYAMA
Setik es distribuidor para Italia de la marca IIYAMA, fabricante de monitores de la más alta calidad e ideal para el sector de la videovigilancia.

[id_address] => [date_add] => 2016-06-10 09:07:26 [date_upd] => 2022-04-07 12:19:37 [link_rewrite] => iiyama [meta_title] => Monitor IIYAMA [meta_keywords] => IIYAMA, MONITOR DE IIYAMA, monitores de videovigilancia [meta_description] => Una amplia gama de monitores Iiyama están disponibles en Setik.biz, monitores de vigilancia por vídeo de la más alta calidad. Descubra los monitores Iiyama en Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1


LIQUIDACION TOTAL ×


 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

T5529AS-B1AG – 55" Android Touch Monitor for Digital Signage and Professional Interaction

Made by IIYAMA

The ProLite T5529AS-B1AG is a 55" 4K UHD touchscreen monitor with Android 14 operating system, designed for interactive solutions in retail, corporate and huddle spaces. It supports iiSignage² for remote content management, Signal FailOver to ensure business continuity and Touch Through-Glass, ideal for window or kiosk installations. The USB-C port with Loop Through simplifies cabling, while compatibility with touch pens ensures precision and flexibility in any context.

Main features:

- 55" 4K UHD (3840 x 2160) display with VA panel

- 20-point capacitive touch technology

- Built-in Android 14 operating system

- iiSignage² for remote content management and updating

- Touch Through-Glass for interaction even behind glass

- Signal FailOver for operational continuity in the event of a signal failure

- USB-C Loop Through: Transfer video, touch data, power with just one cable

- Compatibility with capacitive touch pens for greater precision

- Anti-reflective glass (AG) for optimal visibility

- Continuous operation 24/7

- Full connectivity: USB-C, HDMI, LAN, Wi-Fi, RS232

- VESA bracket for versatile installation on walls or totems


Further details

Android OS :
The built-in Android 14 operating system enables flexible content management, app installation, and out-of-the-box use without external devices.

iiSignage²:
Supporting iiSignage² platform, you can remotely control and update digital content centrally and easily, perfect for corporate or retail environments .
Touch Through Glass:
The 20-point capacitive touch technology also works through glass , perfect for shop window applications or kiosks protected by glass panels.

Signal FailOver:
Ensures reliability in content playback by automatically switching to a backup source in case of primary signal loss.
Huddle Spaces:
Its compact size and interactive functionality make it perfect for small collaborative environments and quick meeting rooms (huddle rooms) .
USB-C Loop Through:
Thanks to the USB-C port with Loop Through , you can transfer audio, video, touch and power with a single cable, simplifying installation.
Touch Pens:
Supports capacitive touch pens for more natural input, useful in environments where precision is required, such as design or training.
Retail Installations:
Designed for retail installations , with 24/7 operation, anti-reflective glass and extensive connectivity, it is ideal for information kiosks, digital signage and interactive totems.

Other Technical Features:
  • 55" 4K UHD ( 3840 x 2160 ) display with VA panel
  • 20-point capacitive touch technology
  • Pre-installed Android 14 system with integrated media player
  • iiSignage² for remote management
  • Touch Through-Glass and Anti-Reflective Glass (AG)
  • Continuous operation 24/7
  • VESA bracket for flexible mounting

T5529AS-B1AG dimensions

Technical data sheet

Model T5529AS-B1AG
DISPLAY CHARACTERISTICS
Design Edge to edge glass
Diagonal 54.6", 139cm
Panel GO, DLED
Touch Glass Anti-Glare Glass with Anti-Gloss treatment, Smooth writing, Zero Gap - Air Bonded, DeepContrast PCAP
Native resolution 3840 x 2160 (8.3 MegaPixels 4K UHD)
Aspect ratio 16:9
Panel brightness 500 cd/m²
Brightness 450 cd/m² with touch
Light transmittance 83%
Static contrast 4000:1
Response time (GTG) 6.5ms
Viewing areas horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support 1.07G (8 Bits+FRC) (NTSC 72%)
Horizontal Sync 28 - 160kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 26.8"
Pixel pitch 0.315mm
Bezel color and finish black, matte
TOUCH
Touch technology DeepContrast-PCAP
Touchpoints 20 (HID, only with supported OS)
Touch accuracy +- 2.5mm
Touch method stylus, finger, glove
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Through Glass 6mm
Palm rejection yes
INTERFACES/CONNECTORS/CONTROLS
Digital signal input HDMI x2 (᠎1.4/ 2.0, max. 3840x᠎2160 @60Hz)
USB-C x1 (3.2, DP 1.2 Alt mode, 15W PD)
Monitor control input RS-232c x1
RJ45 (LAN) x1
IR x1 (3.5mm)
Audio output Speakers 2 x 10W
Monitor control output RS-232c x1
IR loop through x1 (3.5mm)
HDCP 1.4 / 2.0
USB ports x2 (2.0 with Multi-Media support)
RS-232c x1
FEATURES
Integrated software Android 14, Signal FailOver, Whiteboard, iiSignage² (CMS), iiControl (DMS), iiShare, iiBrowser, Web-, PDF- and Media Player, File manager, EShare, TeamViewer
WiFi WiFi 5 @ 2.4G / 5G
Hardware CPU: MTK9679 Quad-core A73*4, GPU: Mali G51, RAM: 4GB, ROM: 32GB
Extra Touch Through Glass
Kiosk mode yes
Max. non-stop operating time 24/7
Anti-image retention yes
Glass thickness 3.7mm
Glass hardness 8H
Housing (bezel) metal
OSD key lock yes
Remote control lock yes
GENERAL
OSD languages EN, DE, FR, ES, IT, RU, CZ, NL, PL, SV, FI, DA, NB
Control buttons Power (long press for Quick Menu (source, volume +, volume -, brightness +, brightness -, Touch unlock)
User controls picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, low blue light, color temp., color control, picture reset), audio (balance, treble, bass, volume, audio out, max. volume, min. volume, mute, speakers setting audio reset), OSD setting (OSD timeout, OSD H position, OSD V position, OSD transparency, information OSD, side bar), general (logo and animation, wallpaper, no signal image, schedule, off timer), screen (zoom mode, custom zoom, system rotation, scree reset), device (power on status, RS232 routing, IR control, Physical button, motorized stand, power saving, panel saving, monitor info, Touch lock, other), system (language, system update, settng reset, factory reset, Android setting), admin (menu lock, meeting lock, HDMI CEC, kiosk mode, screen share, Miracast standby, log export)
Plug&Play DDC2B
MECHANICAL
Orientation landscape, portrait
Fanless design yes
VESA mounting 300 x 400mm
Operating temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power, HDMI, RS-232c
Touch pen x2 (Dual tips)
Guides quick start guide, safety guide
Other Wall Mounting Bracket (VESA 300x400), Magnetic holding places for Touch pens (on sides in landscape)
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC 100 - 240V, 50/60Hz
Power usage 104W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA, cTUVus
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead
DIMENSION/WEIGHT
Product dimensions W x H x D 1258.2 x 728.8 x 42.3mm
Box dimensions W x H x D 1400 x 850 x 164mm
Weight (without box) 26.8kg
Weight (with box) 32.7kg
