The iiyama ProLite TE6512MIS‑B4AG is a 65‑inch 4K UHD professional interactive display ideal for corporate and education settings, supporting hybrid collaboration with a 40-point PureTouch‑IR touchscreen, Android 14 (iiWare 13E) operating system and built-in Wi‑Fi for wireless connections to notebooks, tablets and smartphones via iiyama Share/EShare . It offers a 4K user interface with custom profiles, integrated apps such as Note, Browser and Cloud Drive, and supports sideloading for custom apps. The USB‑C connection transmits video, audio and touch with a single cable, charging devices with up to 65 W. The anti‑reflective “zero air‑gap” glass improves visibility and precision, while the brightness of 400 cd/m² ensures clarity even in bright environments.
BUSQUE INSTALADOR
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>

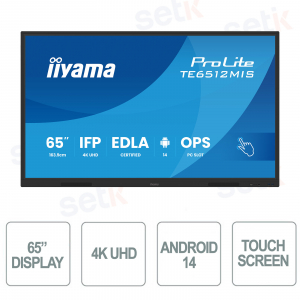

TE6512MIS‑B4AG – 65" 4K UHD Interactive Display for Business and Education
The ProLite TE6512MIS‑B4AG is a 65‑inch 4K UHD (3840 x 2160) interactive display with IPS panel, designed to enhance collaboration in business or education spaces. Featuring 40-point PureTouch‑IR capacitive touch with no air gap, it offers pinpoint accuracy for annotation, while the Android 14 (iiWare 13E) operating system integrates apps such as Notes, Browser and Cloud Drive, with the possibility of sideloading specific software. USB‑C connectivity supports video, audio, touch and charging up to 65 W with a single cable. With built-in Wi‑Fi and the iiyama Share and EShare wireless sharing functions, it is easy to cast content from external devices. Bright (400 cd/m²) and with anti-reflective “zero air‑gap” glass, it ensures optimal visibility in bright environments.
Main features:
- 65" 4K (3840×2160) display with high brightness VA panel (400 cd/m²)
- 40-point PureTouch‑IR touch with ±1mm accuracy and zero parallax
- Android 14 (iiWare 13E) with built-in apps and sideloading capabilities
- 65W USB-C for video, touch and charging with a single cable
- Wireless sharing via iiyama Share and EShare (AirPlay, Miracast, Chromecast)
- Zero air-gap anti-reflective glass, 400 cd/m² brightness, perfect for bright environments
Further details
The iiyama ProLite TE6512MIS-B4AG is a 65” 4K UHD interactive display designed for educational and corporate environments, capable of transforming any space into a smart collaboration station. Thanks to the Android 14 system with iiWare 13E , USB-C connectivity and standalone system, it allows you to work without external PCs. Sharing, management and writing technologies make it ideal for classrooms, meeting rooms and hybrid spaces.
Officially certified by Google, providing access to the Google Play Store and Google Workspace apps directly on the display.
Remote management system for your corporate display fleet, ideal for monitoring, updating and configuring multiple devices from a single interface.
Wireless sharing solution that allows mirroring from PCs, smartphones and tablets via AirPlay, Miracast or Chromecast, without the need for cables.
Infrared technology with 40 touch points and precision up to 1mm, for a natural and fluid writing experience.
The monitor works autonomously without the need to connect to a PC, thanks to the integrated Android system.
USB-C port for video, touch, audio, and charging up to 65W, all through a single cable.
Technical data sheet
| Model | TE6512MIS-B4AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 65", 163.9cm |
| Panel | GO DLED |
| Touch Glass | Anti-Glare Coated Glass, Zero-Gap Air Bonding |
| Native resolution | 3840 x 2160 (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 400 cd/m² |
| Light transmittance | 92% |
| Static contrast | 5000:1 |
| Dynamic contrast | 8000:1 |
| Response time (GTG) | 6.5ms |
| Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 8bit+FRC |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 1428.5 x 803.5mm, 56.3 x 31.7" |
| Bezel width (sides, top, bottom) | 16.5mm, 16.5mm, 45mm |
| Pixel pitch | 0.372mm |
| Bezel color and finish | black, matte |
| TOUCH | |
| Touch technology | PureTouch IR |
| Touchpoints | 40, 5pt writing (HID, only with supported OS) |
| Touch accuracy | +- 1.5mm |
| Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES/CONNECTORS/CONTROLS | |
| Analog signal input | VGA x1 (max. 1920x1080 @60Hz) |
| Signal input | HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444 (HDMI x1 compatible ARC/ CEC) DisplayPort x1 (max. 3840x2160 @60Hz) USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz - RGB444 - (Touch, 1x Front 65W PD, 1x Back 15W PD) |
| Audio input | Mini-jack x1 |
| Monitor control input | RS-232c x1 (DSUB 9pin) RJ45 (LAN) x1 (LAN Control) IR x1 |
| Digital signal output | HDMI x1 |
| Audio output | S/PDIF (Optical) x1 Mini-jack x1 (3.5mm) Speakers 2 x 16W (Front) |
| Monitor control output | OPS Slot x1 |
| HDCP | HDMI 1: 2.1, USB-C: 2.2 |
| USB ports | x5 (media playback / peripherals / storage – front side: 2x USB 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 5Gbit, 65W PD), side: 2x USB 3.2 (Gen 1, 5Gbit), back: 1x USB-C 2.0 (Gen 1, 5Gbit, 15W PD)) |
| RJ45 (LAN) | x2 (Auto switch for PC & Android, 1000MB) |
| FEATURES | |
| Integrated software | iiWare 13E (Android 14 OS) featuring Google EDLA, iiyama DMS, Note, File Manager, Cloud Drives, WPS Office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices |
| WiFi | yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0) |
| Adaptive Sync support | CPU: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128GB |
| Extra | WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Media playback | yes |
| Glass thickness | 3mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | Power, Power Indicator, Remote Sensor, Light Sensor |
| User controls | general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, color temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) |
| Blue light reducer | yes |
| Plug&Play | DDC2B |
| Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| MECHANICAL | |
| Orientation | landscape |
| Fanless design | yes |
| VESA mounting | 600 x 400mm |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | Power, USB, HDMI |
| Touch pen | x4 (Dual function tips) |
| Guides | quick start guide, safety guide |
| Other | WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 129W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0 (RoHS) |
| REACH SVHC | above 0.1%: Lead |

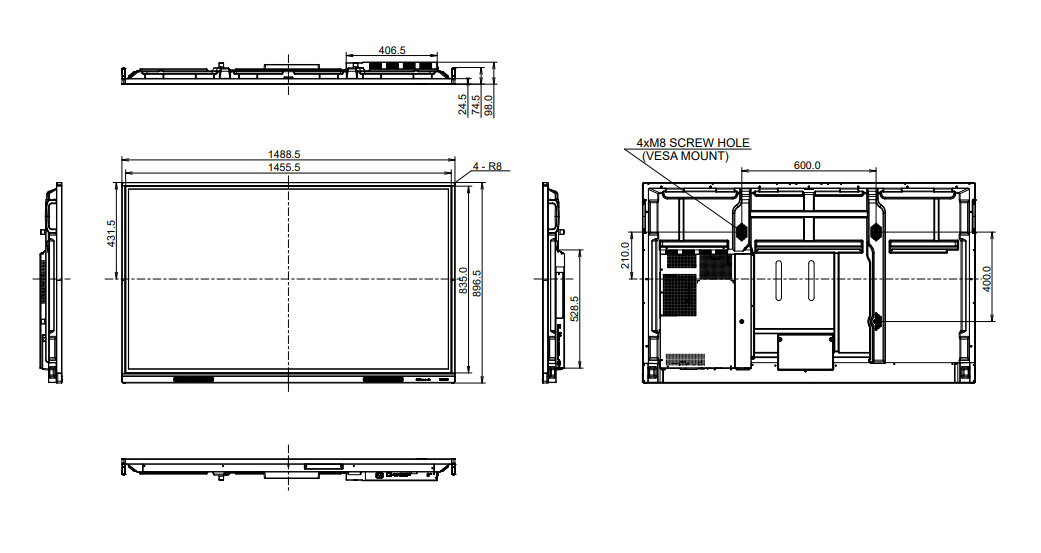

| DIMENSION/WEIGHT | |
| Product dimensions W x H x D | 1488 x 897 x 98mm |
| Box dimensions W x H x D | 1628 x 1014 x 185mm |
| Weight (without box) | 28.5kg |
| Weight (with box) | 37kg |
