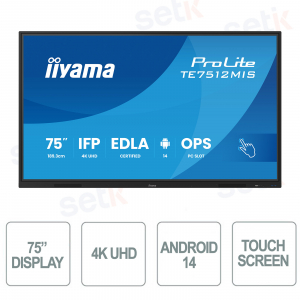

TE7512MIS‑B4AG – 75″ 4K UHD Interactive Display for Production Environments
The ProLite TE7512MIS‑B4AG is a 75″ 4K UHD interactive display designed to enhance collaboration in modern offices and classrooms. Running Android 14 (iiWare 13E) and Google EDLA certification, it features iiyama DMS for remote management and wireless sharing via iiyama Share/EShare. The 40-point PureTouch-IR touchscreen ensures smooth, accurate writing, while the 65W USB‑C connection simplifies power and data transmission. Multi-Window mode enables visual multitasking, and built-in speakers provide clear audio for meetings and lessons. All-in-one standalone solution, with no external PC required.
Main features:
- 75" 4K (3840×2160) display with high brightness VA panel (400 cd/m²)
- Google EDLA Certified & Android 14 (iiWare 13E): Direct access to Play Store, Google apps and Microsoft 365
- iiyama DMS: Centralized remote management for updates and monitoring
- iiyama Share / EShare: Wireless sharing with up to 9 devices (AirPlay, Miracast, Chromecast)
- 40-point PureTouch‑IR: millimeter accuracy (±1 mm) and zero parallax
- Multi‑Window Mode: display multiple contents on the screen simultaneously
- Built-in speakers : front stereo audio optimized for conferences
- Standalone + USB‑C 65W : No PC required, just one cable for video, touch and charging
Further details
Discover the iiyama ProLite TE7512MIS-B4AG interactive display, a 75” 4K solution designed for the modern business and education environment. With the Android 14 (iiWare 13E) operating system and Google EDLA certification, it offers an advanced user experience with access to all the main apps. PureTouch-IR technology ensures a precise and fluid touch, while sharing and managing content is made easy with iiyama Share and DMS . With multitasking functionality, built-in speakers and full connectivity (including USB-C ), it is perfect for intuitive and limitless collaboration.
Full access to Google Play Store and Google Workspace apps for intelligent content management.
Remote device management system for centralized control, updates and settings.
Quick and easy wireless sharing from any device via AirPlay, Miracast or Chromecast.
Touch technology with 40 touch points and millimeter precision for a natural writing experience.
It works autonomously without the need for an external PC, thanks to the integrated hardware and software.
Simplified connection with video, audio, touch and charging in one cable.
Technical data sheet
| Model | TE7512MIS-B4AG |
| DISPLAY CHARACTERISTICS | |
| Design | Thin bezel |
| Diagonal | 75", 189.3cm |
| Panel | GO DLED |
| Touch Glass | Anti-Glare Coated Glass, Zero-Gap Air Bonding |
| Native resolution | 3840 x 2160 (8.3 MegaPixels 4K UHD) |
| Aspect ratio | 16:9 |
| Panel brightness | 400 cd/m² |
| Light transmittance | 92% |
| Static contrast | 5000:1 |
| Dynamic contrast | 8000:1 |
| Response time (GTG) | 6.5ms |
| Viewing areas | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Colour support | 1.07B 8bit+FRC |
| Horizontal Sync | 30 - 135kHz |
| Viewable area W x H | 1650 x 928mm, 65 x 36.5" |
| Bezel width (sides, top, bottom) | 16.5mm, 16.5mm, 45mm |
| Pixel pitch | 0.430mm |
| Bezel color and finish | black, matte |
| TOUCH | |
| Touch technology | PureTouch IR |
| Touchpoints | 40, 5pt writing (HID, only with supported OS) |
| Touch accuracy | +- 1.5mm |
| Touch method | stylus, finger, glove (Passive pen, Opaque objects) |
| Touch interface | USB |
| Supported operating systems | All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| INTERFACES/CONNECTORS/CONTROLS | |
| Analog signal input | VGA x1 (max. 1920x1080 @60Hz) |
| Signal input | HDMI x2 (2.0, max. 3840x2160 @60Hz, YUV444 (HDMI x1 compatible ARC/ CEC) DisplayPort x1 (max. 3840x2160 @60Hz) USB-C x2 (3.2 (Gen 1, 5Gbit), 3840x2160 @60Hz - RGB444 - (Touch, 1x Front 65W PD, 1x Back 15W PD) |
| Audio input | Mini-jack x1 |
| Monitor control input | RS-232c x1 (DSUB 9pin) RJ45 (LAN) x1 (LAN Control) IR x1 |
| Digital signal output | HDMI x1 |
| Audio output | S/PDIF (Optical) x1 Mini-jack x1 (3.5mm) Speakers 2 x 16W (Front) |
| Monitor control output | OPS Slot x1 |
| HDCP | HDMI 1: 2.1, USB-C: 2.2 |
| USB ports | x5 (media playback / peripherals / storage – front side: 2x USB 3.2 (Gen 1, 5Gbit), 1x USB-C 3.2 (Gen 1, 5Gbit, 65W PD), side: 2x USB 3.2 (Gen 1, 5Gbit), back: 1x USB-C 2.0 (Gen 1, 5Gbit, 15W PD)) |
| RJ45 (LAN) | x2 (Auto switch for PC & Android, 1000MB) |
| FEATURES | |
| Integrated software | iiWare 13E (Android 14 OS) featuring Google EDLA, iiyama DMS, Note, File Manager, Cloud Drives, WPS Office, iiyama Share and EShare for wireless connection with Windows/iOS/Android devices |
| WiFi | yes (WiFi 6 Module OWM002 - Dual WiFi Bandwidth: 2.4GHz/5GHz, WiFi Standard: IEEE 802.11 a/b/g/n/ac/ax, Bluetooth Support: 2.1+EDR/ 3.0/ 4.x/ 5.0) |
| Adaptive Sync support | CPU: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128GB |
| Extra | WiFi 6 Module (OWM002), Slot for optional OPS Slot PC, 4x Touch pen |
| Kiosk mode | yes |
| Max. non-stop operating time | 24/7 |
| Media playback | yes |
| Glass thickness | 3mm |
| Glass hardness | 7H |
| Housing (bezel) | metal |
| OSD key lock | yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
| Control buttons | Power, Power Indicator, Remote Sensor, Light Sensor |
| User controls | general settings (input, volume, backlight), audio settings (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode, color temp.), adjust settings (H-position, V-position, clock, phase, auto), settings (wireless & networks, personal, input & output, application, system) |
| Blue light reducer | yes |
| Plug&Play | DDC2B |
| Warranty | 5 years (for details and eligible countries please check the Warranty section of our website) |
| MECHANICAL | |
| Orientation | landscape |
| Fanless design | yes |
| VESA mounting | 800 x 400mm |
| Operating temperature range | 0°C - 40°C |
| Storage temperature range | - 20°C - 60°C |
| MTBF | 50,000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | Power, USB, HDMI |
| Touch pen | x4 (Dual function tips) |
| Guides | quick start guide, safety guide |
| Other | WiFi 6 Module (OWM002), Mounting bracket for NUC, Mounting bracket for webcam |
| Remote control | yes (batteries included) |
| POWER MANAGEMENT | |
| Power supply unit | internal |
| Power supply | AC 100 - 240V, 50/60Hz |
| Power usage | 174W typical, 0.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, EPA 8.0 (RoHS) |
| REACH SVHC | above 0.1%: Lead |
| DIMENSION/WEIGHT | |

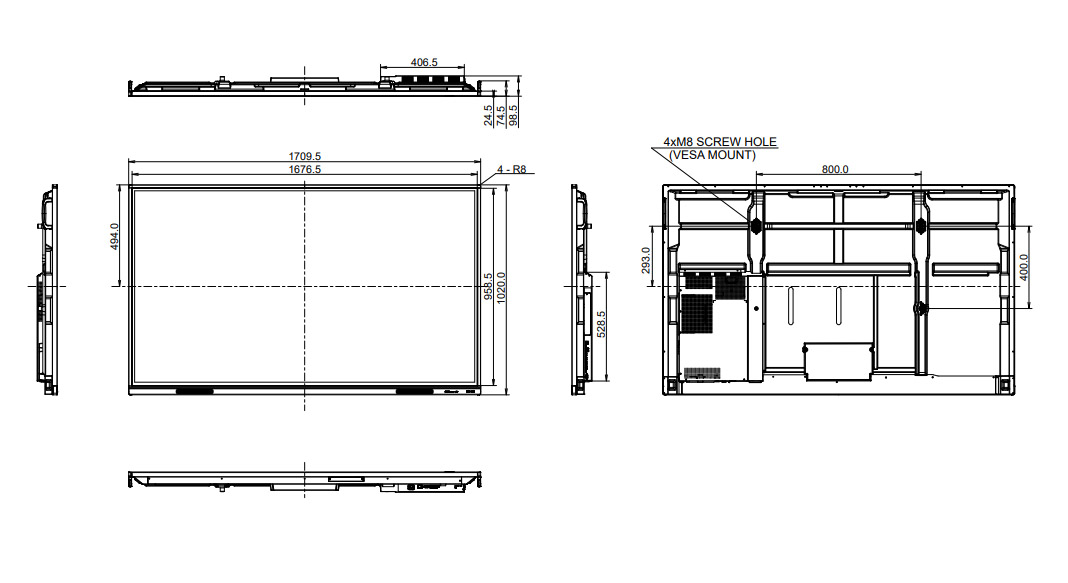

| Product dimensions W x H x D | 1709 x 1020 x 98mm |
| Box dimensions W x H x D | 1863 x 1148 x 225mm |
| Weight (without box) | 39kg |
| Weight (with box) | 51.5kg |
