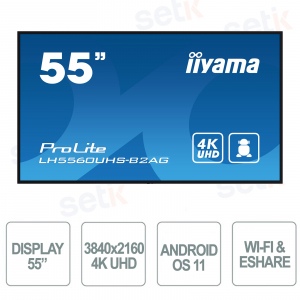

iiyama ProLite LH5560UHS-B2AG 55” 4K UHD: Professional display for Digital Signage with Android, iiSignage² and EShare
The 55” iiyama ProLite LH5560UHS-B2AG professional display combines 4K UHD resolution, 500cd/m² brightness and an ultra-slim design to deliver sharp images and visual impact in any environment. Thanks to the Android 11 operating system, iiSignage² management software and the Signal FailOver function, it guarantees always-on content and easy remote management. With advanced connectivity, integrated Wi-Fi and EShare for instant sharing, it is perfectly suited to retail, corporate, hospitality and education. The VA panel with anti-glare treatment ensures high visual quality and lower power consumption compared to IPS models, supporting continuous 24/7 operation. A reliable and elegant solution that transforms digital communication into an engaging experience.
LIQUIDACION TOTAL ×
CLEARANCE SALE!
Take advantage of our must-see outing offers.
Discover the promo >>
LH5560UHS-B2AG – 55" IIYAMA PROLITE MONITOR WITH ANTI-GLARE DISPLAY - 4K UHD - STEREO SPEAKERS - ANDROID 11 - ESHARE

The iiyama ProLite LH5560UHS-B2AG 55” 4K UHD professional display is the ideal solution for digital signage and visual communication, thanks to its 500cd/m² brightness, ultra-slim design and advanced content management. With Android 11 operating system, iiSignage² software and functions such as Signal FailOver and EShare , it ensures high performance and continuous 24/7 reliability.
Main features:
- 55” 4K UHD screen, 500cd/m² brightness
- Android 11 operating system with built-in Wi-Fi
- Content management with iiSignage² and sharing via EShare
- Signal FailOver feature for always-on content
- Ultra-thin 40mm design, landscape/portrait orientation
- Continuous 24/7 operation with low energy consumption
Further details
The iiyama ProLite LH5560UHS-B2AG 55” 4K UHD professional display is designed to deliver high-performance digital signage and visual communication, offering a perfect blend of image quality, advanced management and 24/7 reliability.
With the Android 11 operating system built-in, the display allows for direct app installation and easy customization, turning it into a versatile platform ready for any need.
Content management software allows you to create, schedule, and remotely control advertising campaigns and informational messages in a secure and centralized manner.
It ensures operational continuity by automatically detecting signal loss and immediately switching to the next available source, ensuring always-on and uninterrupted content.
It supports both horizontal and vertical installation, offering maximum flexibility for different applications and visual communication scenarios.
Designed with a neat cable management system, it reduces clutter and improves the aesthetics of the installation, maintaining a professional and clean look.
Technical data sheet
Model | LH5560UHS-B2AG |
DISPLAY CHARACTERISTICS | |
Design | Thin bezel |
Diagonal | 54.6", 139cm |
Panel | VA, Anti-Glare Coated Glass, Hard Coating (3H), haze 25% |
Native resolution | 3840 x 2160 @60Hz (8.3 MegaPixels 4K UHD) |
Aspect ratio | 16:9 |
Brightness | 500 cd/m² |
Static contrast | 4000:1 |
Response time | 6.5ms |
Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
Color support | 1.07G (8 Bits+FRC) (NTSC 87%) |
Horizontal Sync | 28 - 160kHz |
Viewable area W x H | 1209.6 x 680.4mm, 47.6 x 28.8" |
Bezel width (sides, top, bottom) | 13.3mm, 13.3mm, 15.3mm |
Pixel pitch | 0.315mm |
Color | black, matte |
INTERFACES / CONNECTORS / CONTROLS | |
Digital signal input |
HDMI x3 (2.0, max. 3840x2160 @60Hz) |
Monitor control input |
RS-232c x1 |
Audio output |
Mini jack x1 (3.5mm) |
HDCP | 1.4 & 2.2 |
USB Ports | x2 (2.0) |
FEATURES | |
Integrated software | Android 11 OS, FailOver, iiSignage², EShare |
WiFi | yes (Built-in, 802.11ac) |
Hardware | CPU: A53*4, GPU: G52 MP2, RAM: 2GB, ROM: 16GB |
Extra | Wall mounting kit included (VESA 300x400mm) |
Max. non-stop operating time | 24/7 |
Anti-image retention | yes |
Media playback | yes |
Housing (bezel) | metal (front) |
GENERAL | |
OSD languages | EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB |
Control buttons | Power button, Power Indicator, Remote Sensor |
User controls | picture (brightness, contrast, sharpness, black level, tint, colour, noise reduction, gamma selection, color temperature, color control, over scan, picture reset), screen (zoom mode, custom zoom, screen reset), Audio (balance, treble, bass, volume, audio out, maximum volume, minimum volume, mute, audio out sync, speaker setting, audio reset), configuration 1 (switch on state, panel saving, RS232- routing, boot on source, WOL, configuration 1 reset, factory reset), Configuration 2 (OSD timeout, OSD H-Position, OSD V-position, system rotation, information OSD, logo and animation logo setting, animation setting, monitor ID, monitor information, HDMI version, configuration 2 reset), advanced option (IR control, off timer, schedule, HDMI with one wire, HDMI with one wire power off, FailOver, language, OSD transparency, power saving, advanced option reset), Android settings (network & internet, apps & notifications, display, signage display, security, language & input, date & time, about device) |
Plug & Play | DDC2B |
MECHANICAL | |
Orientation | landscape, portrait |
Fanless design | yes |
VESA mounting | 300 x 400mm |
Operation temperature range | 0°C - 40°C |
Storage temperature range | - 20°C - 60°C |
MTBF | 50,000 hours (excluding backlight) |
ACCESSORIES INCLUDED | |
Cables | power, HDMI, RS-232c |
Guides | quick start guide, safety guide |
Other | Wall mount bracket, Wall mount guide, Screws, Screw anchors, Stickers for screw holes |
Remote control | yes (batteries included) |
POWER MANAGEMENT | |
Power Supply Unit | internal |
Power Supply | AC 100 - 240V, 50/60Hz |
Power Usage | 55W typical, 0.5W stand by, 0.3W off mode |
SUSTAINABILITY | |
Regulations | CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH, UKCA |
Energy efficiency class (Regulation (EU) 2017/1369) | AND |

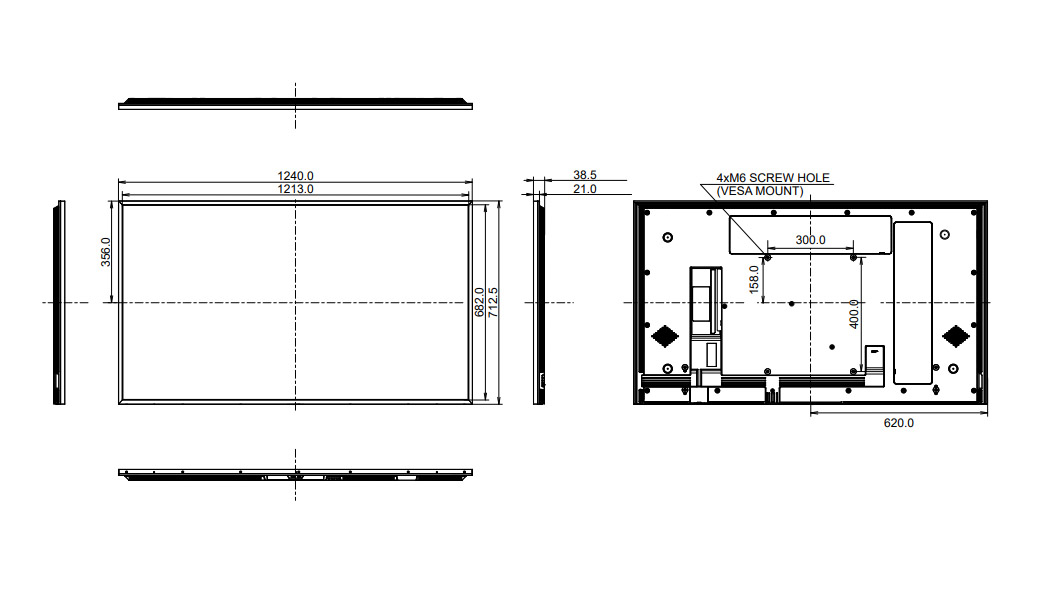

DIMENSIONS & WEIGHT | |
Product dimensions W x H x D | 1239.7 x 712.5 x 38.6mm |
Box dimensions W x H x D | 1390 x 850 x 136mm |
Weight (without box) | 17.6kg |
Weight (with box) | 22.9kg |
