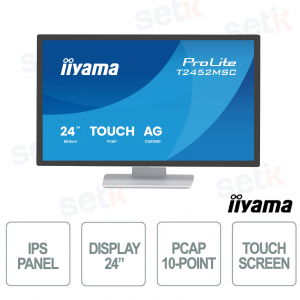

T2452MSC-B2AG – IIYAMA PROLITE 24" IPS MONITOR - PCAP 10 TOUCH POINTS
The 24-inch iiyama ProLite T2452MSC-B2AG touch monitor offers a professional interactive experience thanks to the Full HD 1920x1080 IPS panel with a refresh rate of up to 120Hz , ideal for retail, hospitality, POS and digital signage. DeepContrast PCAP+ 10-point touch technology with Optical Bonding ensures immediate response, sharper images and significantly reduced reflections. The Edge-to-Edge Glass design with Anti-Glare and anti-fingerprint coating improves readability even in bright environments, keeping the screen always clean and professional. The features also include support for use with fingers, gloves and stylus, a built-in USB 3.2 hub and HDMI and DisplayPort connectivity for maximum operational versatility.
Main features:
- 24" IPS Full HD 1920x1080 touch screen with refresh rate up to 120Hz
- DeepContrast PCAP+ technology with simultaneous 10-point touch support
- Optical Bonding for increased contrast and reduced reflections
- Anti-Glare coating for optimal visibility in bright environments
- Anti-fingerprint coating for a surface that is always clean
- Touch support with fingers, gloves and stylus
- IPS panel with vibrant colors and wide 178° viewing angles
- Scratch-resistant front glass with 7H hardness
- Built-in USB 3.2 hub with 2 high-speed ports
- HDMI, DisplayPort and audio output connectivity
- Ergonomic tilting stand and VESA 100x100 mm compatibility
- Protection from humidity and condensation for heavy-duty applications
Further details
The Full HD IPS panel ensures brilliant colors, uniform images and optimal visibility from any position, ideal for retail, POS and commercial environments.
DeepContrast PCAP+ 10-point touch technology with Optical Bonding delivers a smooth and precise touch, while protecting the screen from humidity and condensation.
The touch panel with Optical Bonding improves contrast and reduces reflections, making content clear and readable even under bright lights.
The anti-fingerprint and anti-glare coating keeps the display clean, professional and easy to read even in high-use environments.
Technical data sheet
| Model | T2452MSC-B2AG |
| DISPLAY CHARACTERISTICS | |
| Design | Edge to edge glass |
| Diagonal | 24", 60.5cm |
| Panel | IPS |
| Native resolution | 1920 x 1080 @120Hz (2.1 megapixel Full HD) |
| Aspect ratio | 16:9 |
| Brightness | 420 cd/m² |
| Brightness | 360 cd/m² with touch |
| Light transmittance | 86% |
| Static contrast | 1300:1 with touch |
| Response time (MPRT) | 5ms |
| Viewing zone | horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89° |
| Horizontal Sync | 30 - 138kHz |
| Viewable area W x H | 527 x 296.5mm, 20.7 x 11.7" |
| Pixel pitch | 0.275mm |
| TOUCH | |
| Touch technology | optical bonding PCAP |
| Touch points | 10 |
| Touch interface | USB |
| Palm rejection | Yes |
| FEATURES | |
| Extra | DeepContrast PCAP+ (optical Bonding PCAP), anti-fingerprint, touch support with gloved hand (thickness +2mm) |
| Glass hardness | 7H |
| OSD key lock | Yes |
| GENERAL | |
| OSD languages | EN, DE, FR, ES, IT, PT, RU, JP, NL, PL |
| Control buttons | Menu, scroll up / ECO, scroll down / volume, select / input, power |
| User controls | Picture adjust (brightness, contrast, i-Style Color, adv. contrast, ECO, OverDrive, switches) |
| Convenience | Kensington-lock™ prepared |
| Blue light reducer | Yes |
| Plug & Play | DDC2B |
| MECHANICAL | |
| Orientation | landscape, face-up |
| Tilt angle | 90° up; 5° down |
| VESA mounting | 100 x 100mm |
| MTBF | 50000 hours (excluding backlight) |
| ACCESSORIES INCLUDED | |
| Cables | power (1.8m), USB (1.5m), HDMI (1.5m) |
| Guides | quick start guide, safety guide |
| Other | Screwdriver |
| Cable cover | Yes |
| POWER MANAGEMENT | |
| Power Supply Unit | internal |
| Power Supply | AC 100 - 240V, 50/60Hz |
| Power Usage | 18W typical, 1.5W stand by, 0.3W off mode |
| SUSTAINABILITY | |
| Regulations | RoHS support, ErP, WEEE, REACH |
| Energy efficiency class (Regulation (EU) 2017/1369) | AND |
| REACH SVHC | above 0.1%: Lead, Lead monoxide (lead oxide) |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 567 x 385 x 253.5mm |
| Box dimensions W x H x D | 635 x 405 x 143mm |
| Weight (without box) | 5.6kg |
| Weight (with box) | 7.1kg |
