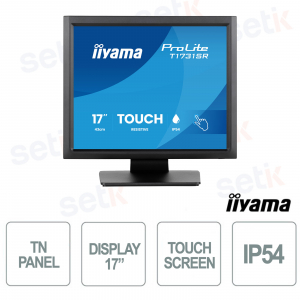

iiyama ProLite T1731SR-B2S 17" IP54 Resistive 5-Wire Touchscreen Monitor for Industry and Retail

iiyama ProLite T1731SR-B2S 17" IP54 Resistive 5-Wire Touchscreen Monitor for Industry and Retail


The 17-inch iiyama ProLite T1731SR-B2S touchscreen monitor is the ideal solution for commercial and industrial environments that require reliability, ease of use and durability. Thanks to 5-wire resistive touch technology , it allows interaction via fingers, gloves or stylus, ensuring maximum operational versatility. The 1280x1024 resolution panel, IP54 front protection against dust and splashes of water , HDMI, DisplayPort and VGA inputs and USB touch support ensure easy integration into any workstation. Integrated speakers , an adjustable ergonomic stand and neat cable management complete the device for professional and comfortable use.

Technical Data Sheet

referencia : T1731SR-B2S

brand : IIYAMA

EAN: 4948570127702

Manufacturer Object ( [id] => 23 [name] => IIYAMA [description] =>

Usted puede elegir y comprar en línea el monitor de videovigilancia que mejor se adapte a sus necesidades, dada la amplia gama de monitores y la alta calidad. Es una marca multinacional entre las primeras por importancia en el campo de los monitores de videovigilancia y ahora en Setik se puede comprar cómodamente en Italia, directamente online.

¿Por qué adoptar un monitor Iiyama?
Iiyama ofrece una amplia gama de monitores para la videovigilancia, ideales para salas de reuniones y experiencias interactivas tanto entre colegas como entre la empresa y los clientes.

[short_description] =>

Monitores IIYAMA

MONITOR DE IIYAMA
Setik es distribuidor para Italia de la marca IIYAMA, fabricante de monitores de la más alta calidad e ideal para el sector de la videovigilancia.

[id_address] => [date_add] => 2016-06-10 09:07:26 [date_upd] => 2022-04-07 12:19:37 [link_rewrite] => iiyama [meta_title] => Monitor IIYAMA [meta_keywords] => IIYAMA, MONITOR DE IIYAMA, monitores de videovigilancia [meta_description] => Una amplia gama de monitores Iiyama están disponibles en Setik.biz, monitores de vigilancia por vídeo de la más alta calidad. Descubra los monitores Iiyama en Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR


T1731SR-B2S – IIYAMA PROLITE 17" IPS MONITOR - TOUCHSCREEN - IP54

Made by IIYAMA

The iiyama ProLite T1731SR-B2S is a 17-inch touchscreen monitor designed for professional, industrial, and commercial applications where reliability and usability are essential. 5-wire resistive touch technology ensures precise control even with gloves or a stylus, while IP54 front protection ensures resistance to dust and splashes. The 1280x1024 resolution panel, with anti-glare treatment, HDMI, DisplayPort, VGA, and USB Touch connectivity, and integrated speakers offers a complete solution for retail, warehouse, workshop, and manufacturing environments. The adjustable ergonomic stand and integrated cable management further enhance comfort and workstation organization.

Main features:

- 17" touchscreen display with 5:4 aspect ratio and 1280 x 1024 resolution at 75Hz for sharp, detailed images

- 5-wire resistive touch technology compatible with fingers, gloves, latex gloves and stylus for maximum operational versatility

- Full connectivity with HDMI, DisplayPort, VGA inputs and USB Touch interface for easy integration

- Anti-glare treatment that reduces reflections and improves screen readability

- Built-in 2 x 1W speakers for audio playback without external devices

- Ergonomic tilt stand with integrated cable management for a tidy and comfortable workstation

- Plug & Play compatibility with Windows and Linux for quick installation and use


Further details

Responsive touch technology for harsh environments :
The monitor uses resistive touch technology that allows precise interaction with a finger, glove, stylus or compatible tools , making it ideal for retail, foodservice, warehouse and industrial applications.
Reliable even in the most difficult conditions:
The IP54 front protection helps resist dust and splashes of water , offering greater operational safety in professional environments exposed to more demanding conditions.
Convenient and versatile to use:
The adjustable single-hinge stand allows for smooth screen tilt, while integrated cable management keeps your setup neat, convenient, and professional.
Enjoy clear and immersive sound:
The built-in 2 x 1W speakers allow you to play audio directly from the monitor, a useful solution for messages, alerts and multimedia content in retail or operational environments.

Technical data sheet

Model T1731SR-B2S
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 17", 43cm
Panel TN
Native resolution 1280 x 1024 @75Hz (1.3 megapixels)
Aspect ratio 5:4
Panel Brightness 250 cd/m²
Brightness 195 cd/m² with touch
Light transmittance 77%
Static contrast 1000:1 with touch
Response time (BTB) 5ms
Viewing zone horizontal/vertical: horizontal°/vertical 170°, right/left: 0°/0°, up/down: 0°/0°
Supports color 16.7 million
Horizontal Sync 31 - 80kHz
Viewable area W x H 338 x 270mm, 13.3 x 10.6"
Pixel pitch 0.264mm
Bezel color and finish black, matte
TOUCH
Touch technology serial resistive
Touch points 1
Touch method stylus, finger, glove (latex)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
INTERFACES / CONNECTORS / CONTROLS
Analog signal input VGA x1
Digital signal input HDMI x1
DisplayPort x1
Audio output Mini jack x1
Audio output Speakers 2 x 1W
HDCP Yes
FEATURES
Extra anti-glare treatment
Water and dust protection IP54 (front)
OSD key lock Yes
GENERAL
OSD languages EN, DE, FR, ES, IT, PT, RU, JP, NL, PL
Control buttons Menu, scroll up / ECO, scroll down / volume, select / input, power
User controls contrast, brightness, lock mode (power, OSD), auto adjust, OSD, H. position, V. position, H-size, fine, OSD H. position, OSD V. position, OSD timeout, reset, input select, OSD language, color temperature, volume, mute
Convenience Kensington-lock™ prepared
Plug & Play DDC2B
MECHANICAL
Orientation landscape, face-up
Tilt angle 90° up; 5° down
VESA mounting 100 x 100mm
Cable management system Yes
MTBF 50000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (1.8m), USB (1.8m), HDMI (1.8m), Audio (1.8m), DP (1.8m)
Guides quick start guide, safety guide
Other Screwdriver
Cable cover Yes
POWER MANAGEMENT
Power Supply Unit internal
Power Supply AC - 100V, 240V, V,Hz
Power Usage 20W typical, 1.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CE, EAC, VCCI-B, RoHS support, ErP, WEEE, cULus, REACH, UKCA
Energy efficiency class (Regulation (EU) 2017/1369) AND
REACH SVHC above 0.1%: Lead, Lead monoxide (lead oxide)
DIMENSIONS & WEIGHT
Product dimensions W x H x D 387 x 378 x 239.5mm
Box dimensions W x H x D 470 x 445 x 180mm
Weight (without box) 5.4kg
Weight (with box) 7.3kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
