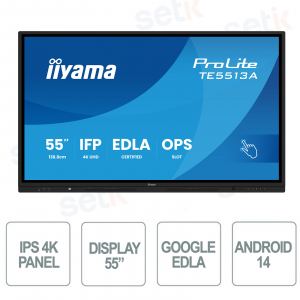

iiyama ProLite TE5513A-B3AG Interactive Display 55" 4K UHD Google EDLA Android 14 USB-C WiFi 6E

iiyama ProLite TE5513A-B3AG Interactive Display 55" 4K UHD Google EDLA Android 14 USB-C WiFi 6E

 

The iiyama ProLite TE5513A-B3AG is a 55-inch 4K UHD professional interactive display , Google EDLA certified, designed for schools, businesses and collaborative meeting rooms. The Zero-Gap Air Bonding IPS panel with PureTouch-IR+ technology, Palm Rejection and anti-glare glass ensures a precise and natural writing experience. Thanks to Android 14 , iiWare 21E , Wi-Fi 6E , iiShare , iiControl DMS and USB-C ports up to 100W Power Delivery , it offers seamless integration with the Google and Microsoft 365 ecosystems. 40 touch points , PIR and ambient light sensors, audio with 2 x 20W speakers and subwoofer complete the features, making it ideal for collaboration and content sharing in professional and educational environments.

Technical Data Sheet

referencia : TE5513A-B3AG

brand : IIYAMA

EAN: 4948570128105

Manufacturer Object ( [id] => 23 [name] => IIYAMA [description] =>

Usted puede elegir y comprar en línea el monitor de videovigilancia que mejor se adapte a sus necesidades, dada la amplia gama de monitores y la alta calidad. Es una marca multinacional entre las primeras por importancia en el campo de los monitores de videovigilancia y ahora en Setik se puede comprar cómodamente en Italia, directamente online.

¿Por qué adoptar un monitor Iiyama?
Iiyama ofrece una amplia gama de monitores para la videovigilancia, ideales para salas de reuniones y experiencias interactivas tanto entre colegas como entre la empresa y los clientes.

[short_description] =>

Monitores IIYAMA

MONITOR DE IIYAMA
Setik es distribuidor para Italia de la marca IIYAMA, fabricante de monitores de la más alta calidad e ideal para el sector de la videovigilancia.

[id_address] => [date_add] => 2016-06-10 09:07:26 [date_upd] => 2022-04-07 12:19:37 [link_rewrite] => iiyama [meta_title] => Monitor IIYAMA [meta_keywords] => IIYAMA, MONITOR DE IIYAMA, monitores de videovigilancia [meta_description] => Una amplia gama de monitores Iiyama están disponibles en Setik.biz, monitores de vigilancia por vídeo de la más alta calidad. Descubra los monitores Iiyama en Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

TE5513A-B3AG – IPS MONITOR 55" 4K UHD IIYAMA PROLITE - PURETOUCH IR+ - RJ45 - ANTI-GLARE - PIR MOTION SENSOR - STANDLONE SOLUTION & CONNECTIVITY

Made by IIYAMA

The iiyama ProLite TE5513A-B3AG is a 55-inch 4K UHD interactive display that is Google EDLA certified, ideal for schools, businesses and meeting rooms thanks to its seamless integration with Google Workspace and Microsoft 365. The Zero-Gap Air Bonding IPS panel with PureTouch-IR+ technology, 40 touch points and Palm Rejection ensures precise and natural writing. Equipped with Android 14 , iiWare 21E , Wi-Fi 6E , USB-C up to 100 W Power Delivery and iiShare and iiControl DMS software, it offers simple and efficient collaboration. 2×20 W speakers with subwoofer , intelligent sensors and reliable operation for continuous professional use complete the package.

Main features:

- Display: 55" IPS 4K UHD (3840×2160)
- Certification: Google EDLA

- Touch: PureTouch-IR+ with 40 touch points and Palm Rejection

- Operating system: Android 14 with iiWare 21E

- Connectivity: Wi-Fi 6E, Bluetooth 5.0, HDMI, DisplayPort, USB-C up to 100W

- Software: iiShare, iiControl DMS, WhiteBoard

- Audio: 2 x 20W speakers with 20W subwoofer

- Sensors: PIR and ambient light sensor

- Expansion: OPS and NFC slots

- Warranty: 5 years

Further details

✅ Google EDLA Certified:
Google EDLA (Enterprise Device License Agreement) certification enables direct access to Google apps , accounts, files, and collaboration tools, ensuring seamless integration with Google Workspace and Microsoft 365 to improve productivity , collaboration, and content management in education and business.
✅ iiWare 21E (Android 14 OS):
The Android 14-based iiWare 21E system integrates tools such as WhiteBoard , iiShare , iiControl , web browser, file management and cloud drive, offering an intuitive interface for presentations, video conferencing and collaborative work without additional devices.
✅ Quick Radial Menu:
The Quick Radial Menu allows you to quickly recall the most used applications with a simple five-finger gesture, speeding up access to the main functions and improving the user experience during lessons and meetings.
✅ iiControl - Device Management System:
iiControl DMS software provides centralized display management , enabling real-time remote monitoring, configuration and administration of devices, while fully complying with GDPR .
✅ PureTouch-IR+:
PureTouch-IR+ technology with Zero-Gap Air Bonding , Palm Rejection and support for up to 40 touch points ensures extremely precise , natural and fluid writing, eliminating the parallax effect and improving interaction with fingers or passive pens.
✅ PIR Motion Sensor:
The PIR motion sensor , together with the ambient light sensor , automatically optimizes the display's operation, reducing energy consumption and improving operational efficiency in professional and educational environments.
✅ Standalone solution and connectivity:
Thanks to Android 14 , Wi-Fi 6E , Bluetooth 5.0 , USB-C up to 100W Power Delivery , LAN , NFC and OPS slot , the display can operate as a standalone solution , offering extensive possibilities for connecting and sharing content wirelessly.
✅ Wall mount:
The display comes with a VESA 400×400 wall mount , facilitating secure and professional installation in classrooms, meeting rooms and corporate spaces, with a slim design that enhances any environment.
✅ Speakers, subwoofer and webcam support:
The built-in audio system with 2 x 20W front-facing speakers and a 20W subwoofer delivers powerful, clear audio, while the dedicated webcam mount makes it easy to set up video conferencing and remote collaboration solutions.

Technical data sheet

Model TE5513A-B3AG
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 54.6", 138.8cm
Panel IPS
Touch Glass Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Native resolution 3840 x 2160 (8.3 megapixels 4K UHD)
Aspect ratio 16:9
Brightness 500 cd/m² (max.)
Light transmittance 88%
Static contrast 1200:1
Response time (MPRT) 8ms
Viewing zone horizontal/vertical: horizontal°/vertical 178°, right/left: 0°/0°, up/down: 0°/0°
Color support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1209.6 x 680.4mm, 47.6 x 26.8"
Pixel pitch 0.315mm
Bezel color and finish black, matte
TOUCH
Touch technology PureTouch-IR⁺
Touch points 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate 200Hz
Touch response time 5ms
Touch accuracy +- 1mm
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection Yes
INTERFACES / CONNECTORS / CONTROLS
Digital signal output

HDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC)
DisplayPort x1 (v1.2)
USB-C x2 ((DP-Alt, Data, Touch) front 100W PD, side 65W PD)
Audio input

Mini jack x1 (Microphone)
Monitor control input

RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x2 (LAN Control)
Digital signal output

HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444)
USB-C x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, DP1 Alt Mode, USB-C X1 (3.2 Gen 1, 5 Gbps))
Audio output

S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
Monitor control output

OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
HDCP 2.2
USB ports x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
FEATURES
Integrated software iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi-6E, BT 5.0)
Hardware SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 6GB, ROM: 128GB
Extra Ambient light Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen
Max. non-stop operating time 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
Media playback Yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock Yes
GENERAL
OSD languages

EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, ET, LV, LT, HU, UK
Control buttons Power, Home, Freeze, Volume, Input (source)
User controls

general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode color temp), settings (wireless & networks, share, device, personal, system)
Blue light reducer

Yes
Flicker free

Yes
Plug & Play

DDC2B
Warranty

5 years (for details and eligible countries please check the Warranty section of our website)
MECHANICAL
Orientation landscape
Fanless design Yes
VESA mounting 400 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - %2°C
MTBF 50,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Touch pen x4 (Dual function tips)
Guides quick start guide, safety guide
Other Wall Mounting Bracket (VESA 400x400), Webcam Mounting Bracket
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC AC - 100V, 240V, 50Hz
Power Usage 126W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead
DIMENSIONS & WEIGHT
Product dimensions W x H x D 1267 x 765.5 x 117.5mm
Box dimensions W x H x D 1385 x 865 x 185mm
Pallet volume 6pcs
Weight (without box) 28.7kg
Weight (with box) 34.8kg
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
