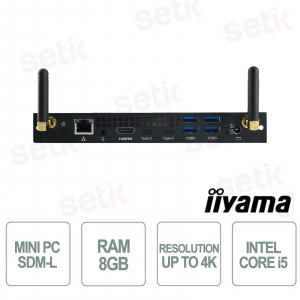

The iiyama SDM51201BC-1L is a professional SDM-L Slot PC designed to transform compatible large format displays into standalone, high-performance solutions. It integrates an Intel Core i5-12450H , 8GB of DDR4 RAM expandable up to 32GB and a 256GB M.2 SSD , offering speed and reliability for business and digital signage applications. The Windows 11 IoT Enterprise 64-bit operating system ensures a stable and professional environment, while Intel UHD Graphics supports content up to 4K at 60Hz . Connectivity includes WiFi 6E, Bluetooth 5.3, Gigabit LAN, HDMI 2.0, USB-C with DP Alt Mode and USB 3.2 ports , ensuring wide compatibility with peripherals and networks. TPM 2.0 , Watch Dog function and support for integrated professional configurations complete the equipment.
SDM51201BC-1L – PC OPS SLOT - INTEL CORE i5-12450H
The iiyama SDM51201BC-1L is a professional SDM-L Slot PC designed to transform compatible large format displays into high-performance standalone solutions. It integrates Intel Core i5-12450H , 8GB of DDR4 3200 MHz RAM expandable up to 32GB and a 256GB M.2 SSD , offering speed and reliability for business and digital signage applications. Intel UHD Graphics supports content up to 4K 3840x2160 at 60Hz , while Windows 11 IoT Enterprise 64-bit ensures a stable and professional environment. Connectivity includes WiFi 6E, Bluetooth 5.3, Gigabit LAN, HDMI 2.0, USB-C with DP 1.4 Alt Mode and USB 3.2 , ensuring wide compatibility. TPM 2.0 , Watch Dog function and integrated audio complete the features for complete use in a professional environment.
Main features:
- CPU: Intel Core i5-12450H
- RAM: 8 GB, max 32 GB
- Storage: 256GB M.2 SSD
- System: Windows 11 IoT Enterprise
- Video: 4K @ 60 Hz
- Wireless: WiFi 6E, Bluetooth 5.3
- Network: Gigabit LAN
- Connections: HDMI, USB-C, USB 3.2
- Security: TPM 2.0
Further details
Technical data sheet
| Model | SDM51201BC-1L |
| DEVICE | |
| Type | SDM-L PC Slot |
| CPU | Intel® Core i5-12450H |
| RAM | 8GB DDR4 3200MHz, Max 32GB |
| SSD | 256GB M.2 |
| Graphics | Intel® UHD Graphics for 12th Gen Processors |
| Sound card | Integrated High Definition Audio ALC245 |
| WiFi | Intel AX211/AX210 BT5.3 WIFI6E Support 802.11 a/b/g/n/ac/ax (Wifi 6E) Speed:2.4 Gbps |
| Bluetooth | 5.3 |
| Operating system | Windows 11 LoT Enterprise (SAC) 64Bit |
| LAN (RJ45) | x1 |
| USB | 3.0 x4, 3.2 (Type C) x2 |
| HDMI Out | x1 |
| Microphone In | x1 |
| Audio | x1, Audio IN and OUT Combo |
| Ethernet | Integrated 10/100/1000M Adaptation RTL8111H |
| Features | Intel SDM-L Windows 11 loT Enterprise (SAC) 64Bit Watch Dog |
| Security (encryption) | TPM2.0 |
| INTERFACES / CONNECTORS / CONTROLS | |
| Signal output | USB-C x2 (DP 1.4 Alt mode, 4K @60Hz) HDMI x1 (2.0, 4K @60Hz) |
| USB A | x2 (v.3.2 Gen1, 5Gbit) |
| USB-C | x2 (v.3.2 Gen1, 5Gbit) |
| LAN | x1 (RJ45) |
| POWER MANAGEMENT | |
| Power usage | 72W typical, 0.5W standby |
| SUSTAINABILITY | |
| Regulations | RoHS support, ErP, WEEE, REACH |
| DIMENSIONS & WEIGHT | |
| Product dimensions W x H x D | 195 x 110 x 25mm |
| Box dimensions W x H x D | 279 x 201 x 67mm |
| Weight (without box) | 0.4kg |
| Weight (with box) | 0.61kg |
| ENVIRONMENTAL CONDITIONS | |
| Operation temperature range | minus 5°C - 45°C |
| Operation humidity | 5% - 95% |
| Storage temperature range | - 20°C - 60°C |
| Storage humidity | 5% - 95% |
