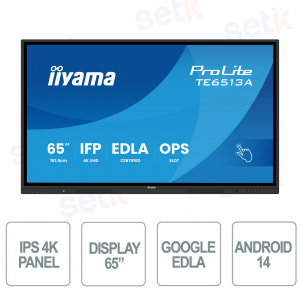

iiyama ProLite TE6513A-B3AG Interactive Display 65" 4K UHD Google EDLA Android 14 USB-C WiFi 6E

iiyama ProLite TE6513A-B3AG Interactive Display 65" 4K UHD Google EDLA Android 14 USB-C WiFi 6E

 

The iiyama ProLite TE6513A-B3AG is a 65-inch 4K UHD interactive display, Google EDLA certified, designed for educational and business environments that require advanced collaboration and maximum productivity. The Zero-Gap Air Bonding IPS panel with PureTouch-IR+ technology, 40 touch points and Palm Rejection ensures precise and natural interaction. Thanks to Android 14 , iiWare 21E , Wi-Fi 6E , USB-C up to 100 W Power Delivery , iiShare and iiControl DMS , it offers complete content management and seamless integration with Google Workspace and Microsoft 365. The solution is completed by 2×20 W speakers with subwoofer , intelligent sensors and reliable operation for continuous professional use.

Technical Data Sheet

referencia : TE6513A-B3AG

brand : IIYAMA

EAN: 4948570128112

Disponibilità: 1

Manufacturer Object ( [id] => 23 [name] => IIYAMA [description] =>

Usted puede elegir y comprar en línea el monitor de videovigilancia que mejor se adapte a sus necesidades, dada la amplia gama de monitores y la alta calidad. Es una marca multinacional entre las primeras por importancia en el campo de los monitores de videovigilancia y ahora en Setik se puede comprar cómodamente en Italia, directamente online.

¿Por qué adoptar un monitor Iiyama?
Iiyama ofrece una amplia gama de monitores para la videovigilancia, ideales para salas de reuniones y experiencias interactivas tanto entre colegas como entre la empresa y los clientes.

[short_description] =>

Monitores IIYAMA

MONITOR DE IIYAMA
Setik es distribuidor para Italia de la marca IIYAMA, fabricante de monitores de la más alta calidad e ideal para el sector de la videovigilancia.

[id_address] => [date_add] => 2016-06-10 09:07:26 [date_upd] => 2022-04-07 12:19:37 [link_rewrite] => iiyama [meta_title] => Monitor IIYAMA [meta_keywords] => IIYAMA, MONITOR DE IIYAMA, monitores de videovigilancia [meta_description] => Una amplia gama de monitores Iiyama están disponibles en Setik.biz, monitores de vigilancia por vídeo de la más alta calidad. Descubra los monitores Iiyama en Setik.biz! [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

TE6513A-B3AG– IPS MONITOR 65" 4K UHD IIYAMA PROLITE - PURETOUCH IR+ - RJ45 - ANTI-GLARE - PIR MOTION SENSOR - STANDLONE SOLUTION & CONNECTIVITY

Made by IIYAMA

The iiyama ProLite TE6513A-B3AG is a 65-inch 4K UHD interactive display with Google EDLA certification, designed for schools, businesses and meeting rooms requiring advanced collaboration and content sharing. The Zero-Gap Air Bonding IPS panel with PureTouch-IR+ technology, 40 touch points and Palm Rejection ensures a smooth and precise writing experience. Thanks to Android 14 , iiWare 21E , Wi-Fi 6E , USB-C up to 100W Power Delivery , iiShare and iiControl DMS , it offers intelligent management and full integration with Google Workspace and Microsoft 365. Completing the package are 2×20W speakers with subwoofer , OPS slot , intelligent sensors and reliable operation for continuous professional use.

Main features:

- Display: 65" IPS 4K UHD (3840×2160)

- Certification: Google EDLA

- Touch: PureTouch-IR+ with 40 touch points and Palm Rejection

- Operating system: Android 14 with iiWare 21E

- Connectivity: Wi-Fi 6E, Bluetooth 5.0, HDMI, DisplayPort, USB-C up to 100W

- Software: iiShare, iiControl DMS, WhiteBoard

- Audio: 2 x 20W speakers with 20W subwoofer

- Sensors: PIR, ambient light sensor and Pen Pick-up

- Expansion: OPS and NFC slots

- Warranty: 5 years

Further details

✅ Google EDLA Certified:
Google EDLA (Enterprise Device License Agreement) certification provides direct access to Google apps , accounts, and collaboration tools, ensuring seamless integration with Google Workspace and Microsoft 365 to improve productivity , content sharing, and teamwork in schools and businesses.
✅ iiWare 21E (Android 14 OS):
The iiWare 21E operating system based on Android 14 integrates WhiteBoard , iiShare , iiControl , web browser, file management and cloud drive, offering a complete and intuitive environment for presentations, interactive lessons and meetings without the need for a dedicated PC.
✅ Quick Radial Menu:
The Quick Radial Menu lets you quickly call up your favorite applications with a simple five-finger gesture, speeding up access to key functions and making task management more efficient during presentations and collaborative sessions.
✅ iiControl:
iiControl DMS software offers centralized display management , enabling real-time remote monitoring, configuration, and administration of devices, with full GDPR compliance and greater efficiency in IT infrastructure management.
✅ PureTouch-IR+:
PureTouch-IR+ technology with Zero-Gap Air Bonding , Palm Rejection and support for up to 40 touch points ensures precise , natural and parallax-free writing, improving the experience of use with fingers, gloves or passive pens.
✅ PIR Motion Sensor:
The PIR motion sensor , combined with the ambient light sensor , automatically optimizes the display's operation, helping to save energy and improving operational efficiency in professional environments.
✅ Standalone solution and connectivity:
Featuring Android 14 , Wi-Fi 6E , Bluetooth 5.0 , USB-C up to 100W Power Delivery , Gigabit LAN , NFC , and an OPS slot , the display functions as a standalone solution , offering maximum flexibility for wireless sharing and connecting external devices.
✅ Wall mount:
The included VESA 600x400 wall mount bracket allows for simple, secure, and professional installation, ideal for classrooms, conference rooms, and corporate environments where neat, reliable integration is required.
✅ Speakers, subwoofer and webcam support:
The audio system with 2 x 20W front-facing speakers and a 20W subwoofer delivers powerful, clear sound, while the dedicated webcam bracket makes it easy to create complete video conferencing , distance learning and online collaboration setups.

Technical data sheet

Model TE6513A-B3AG
DISPLAY CHARACTERISTICS
Design Thin bezel
Diagonal 64.5", 163.9cm
Panel IPS
Touch Glass Anti-Glare glass with Anti-Gloss treatment, Anti-Bacterial coating, Ultra Smooth writing, Zero-Gap Air Bonding
Native resolution 3840 x 2160 (8.3 megapixels 4K UHD)
Aspect ratio 16:9
Brightness 500 cd/m² (typ.)
Light transmittance 88%
Static contrast 1200:1
Response time (MPRT) 8ms
Viewing zone horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Color support 1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync 30 - 135kHz
Viewable area W x H 1428.5 x 803.5mm, 56.2 x 31.6"
Bezel width (sides, top, bottom) 16.7mm, 14.1mm, 46.7mm
Pixel pitch 0.372mm
Bezel color and finish black, matte
TOUCH
Touch technology PureTouch-IR⁺
Touch points 40, 10pt writing (HID, only with supported OS, 32pt Touch with Android)
Scan rate 200Hz
Touch response time 5ms
Touch accuracy +- 1mm
Touch method stylus, finger, glove (Passive pen, Opaque objects)
Touch interface USB
Supported operating systems All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section.
Palm rejection Yes
INTERFACES / CONNECTORS / CONTROLS
Digital signal output

HDMI x2 (v2.0) (H1 CEC/ARC / H2 CEC)
DisplayPort x1 (v1.2)
USB-C x1 (Power Delivery 65W, DP-Alt, Data, Touch)
Audio input

Mini jack x1 (Microphone)
Monitor control input

RS-232c x1 (DSUB 9pin)
RJ45 (LAN) x2 (LAN Control)
Digital signal output

HDMI x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444)
USB-C x1 (2.0, max. 3840x2160 @60Hz, YUV444 / RGB444, DP1 Alt Mode, USB-C X1 (3.2 Gen 1, 5 Gbps))
Audio output

S/PDIF (Optical) x1
Mini jack x1 (Headphone)
Speakers 2 x 20W (Front facing + 20W Subwoofer on the backside)
Monitor control output

OPS Slot x1 (Intel OPS 80pin - When installed: USB-C front: 65W, side: 15W)
HDCP 2.2
USB ports x6 (media playback / peripherals / storage – front side: 1x USB-C 3.2 (Gen 1, 5Gbit, 100W PD), 2x 3.2 (Gen 1, 5Gbit), side: 1x USB-C 2.0 (480 Mbps, 65W PD), 1x 2.0 (480Mbps), 1x 3.2 (Gen 1, 5Gbit))
RJ45 (LAN) x2 (IN / OUT, Auto switch for PC & Android, 1000MB)
FEATURES
Integrated software iiWare 21E (Android 14 OS, Android 16 summer 2026) featuring Google EDLA, iiControl (DMS), WhiteBoard, web browser, file manager, cloud drives and iiShare for wireless connection with Windows/iOS/Android devices
WiFi yes (WiFi-6E, Bluetooth 5.0)
Hardware SOC: RK3576 Octa-core A72*4 + A53*4, GPU: Mali G52 MC3, RAM: 8GB, ROM: 128GB
Extra Ambient light Sensor, PIR Motion Sensor, NFC, Slot for optional OPS PC, 4x Touch pen
Max. non-stop operating time 24/7 (While the components are rated for 24/7 operation, we recommend usage not exceeding 18 hours per day to ensure optimal product longevity)
Media playback Yes
Glass thickness 3.2mm
Glass hardness 7H
Housing (bezel) metal
OSD key lock Yes
GENERAL
OSD languages

EN, DE, FR, ES, IT, RU, CZ, NL, PL, CAT, SV, FI, DA, NB, ET, LV, LT, HU, UK
Control buttons Power, Home, Freeze, Volume, Input (source)
User controls

general settings (input, volume, backlight), audio (volume, bass, treble, balance, sound mode, mute), screen settings (aspect ratio, pixel shift), display settings (brightness, contrast, hue, sharpness, display mode color temp), settings (wireless & networks, share, device, personal, system)
Blue light reducer

Yes
Flicker free

Yes
Plug & Play

DDC2B
Warranty

5 years (for details and eligible countries please check the Warranty section of our website)
MECHANICAL
Orientation landscape
Fanless design Yes
VESA mounting 600 x 400mm
Operation temperature range 0°C - 40°C
Storage temperature range - 20°C - 60°C
MTBF 50,000 hours (excluding backlight)
ACCESSORIES INCLUDED
Cables power (EU 3m, UK 3m), USB (3m), HDMI (3m)
Touch pen x4 (Dual function tips)
Guides quick start guide, safety guide
Other Wall Mounting Bracket (VESA 400x400), Webcam Mounting Bracket
Remote control yes (batteries included)
POWER MANAGEMENT
Power supply unit internal
Power supply AC AC - 100V, 240V, 50Hz
Power Usage 144W typical, 0.5W stand by, 0.3W off mode
SUSTAINABILITY
Regulations CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS)
Energy efficiency class (Regulation (EU) 2017/1369) G
REACH SVHC above 0.1%: Lead
DIMENSIONS & WEIGHT
Product dimensions W x H x D 1489 x 891.5 x 87mm
Box dimensions W x H x D 1640 x 1010 x 185mm
Pallet volume 6pcs
Weight (without box) 39.4kg
Weight (with box) 48.5kg
