Outdoor 30x20m POE Dual PIR Detector with Creep-Off and Anti-Mask Zone - Optex

Outdoor 30x20m POE Dual PIR Detector with Creep-Off and Anti-Mask Zone - Optex

 
-32%

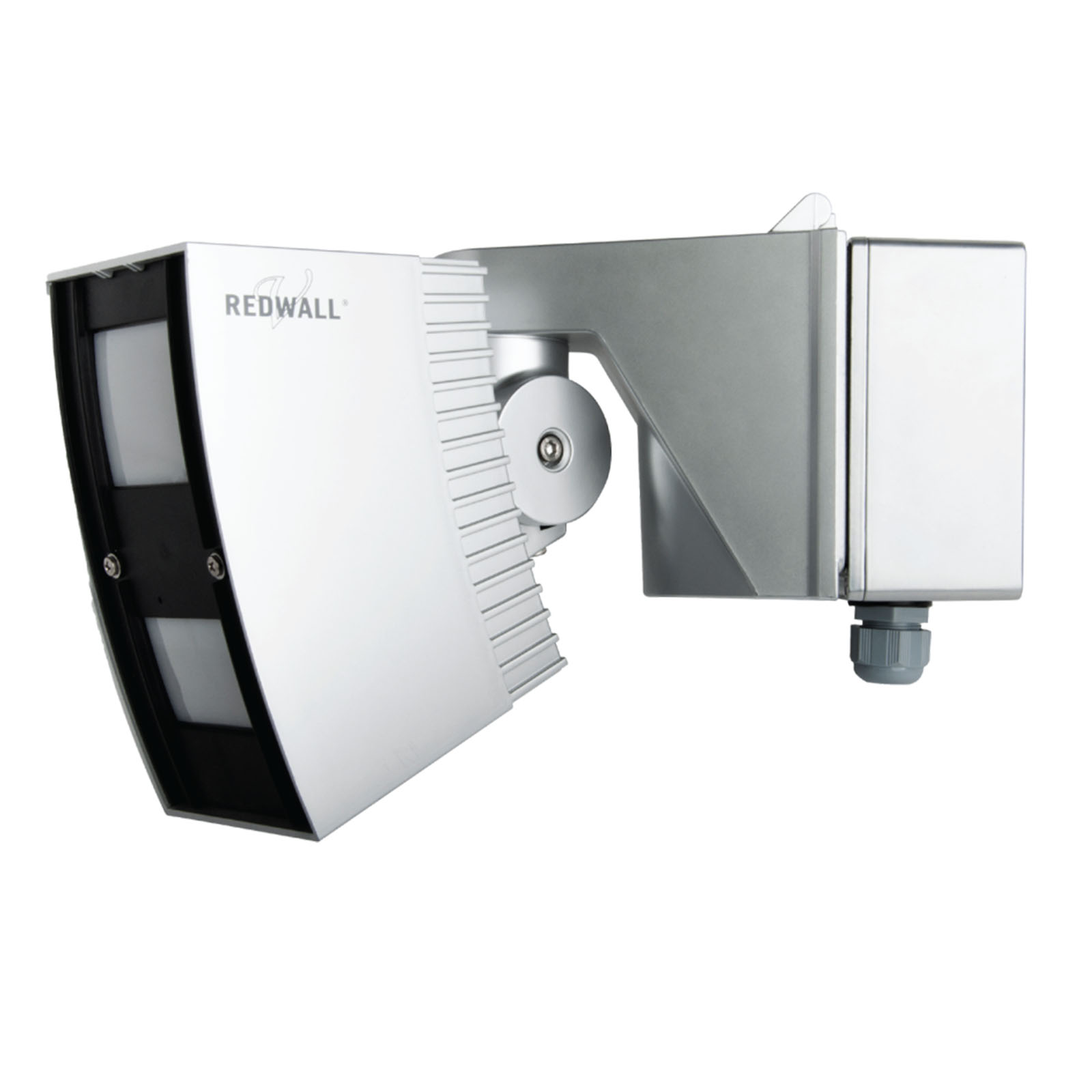

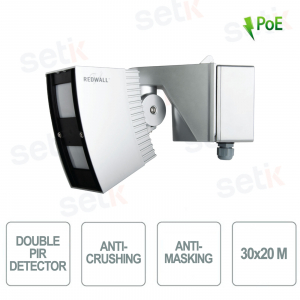

The dual PIR outdoor detector is designed to ensure maximum safety in outdoor environments thanks to its advanced technology. Equipped with a 3-axis accelerometer for tampering and rotation detection, this device uses a passive infrared detection system to effectively monitor the surrounding area. It offers a main coverage of up to 30x20 meters and variable creep coverage: 3x5 meters at a height of 2.3 meters and 6x9 meters at a height of 4 meters, with adjustable detection angles. Its 74 main detection zones and 36 dedicated to creeping ensure detailed control. It can be installed at a height of between 2.3 and 4 meters and has PoE power supply, with a version equipped with an integrated storage box. The device includes 3 alarm outputs, 2 of which are independent, for flexible management of the signals. - SIP-3020/5-IP-BOX

referencia : SIP-3020/5-IP-BOX

brand : Optex

Manufacturer Object ( [id] => 49 [name] => Optex [description] =>

Descubra todos los productos optex amplio catálogo de sensores de exterior. Encontrará optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam. Todo el mundo de la detección de intrusiones Optex

[short_description] =>

Optex

OPTEX fabricante y líder mundial en tecnología de detección de alto rendimiento. Desde hace más de 40 años en el mercado, Optex cuenta con miles de clientes en todo el mundo que les eligen cada día para sus sistemas de detección fiables.

[id_address] => [date_add] => 2023-07-10 10:37:37 [date_upd] => 2024-06-17 15:20:33 [link_rewrite] => optex [meta_title] => [meta_keywords] => optex deteccion intrusiones, optex catalogo, optex sensores exterieur, optex vxi, optex bxs, optex vxi-dam, optex bxs-am, optex vx, optex bx80n, optex vxi-rdam [meta_description] => [active] => 1 [webserviceParameters:protected] => Array ( [fields] => Array ( [active] => Array ( ) [link_rewrite] => Array ( [getter] => getLink [setter] => ) ) [associations] => Array ( [addresses] => Array ( [resource] => address [setter] => [fields] => Array ( [id] => Array ( [xlink_resource] => addresses ) ) ) ) ) [id_lang:protected] => 25 [id_shop:protected] => 1 [id_shop_list] => Array ( ) [get_shop_from_context:protected] => 1 [table:protected] => manufacturer [identifier:protected] => id_manufacturer [fieldsRequired:protected] => Array ( [0] => name ) [fieldsSize:protected] => Array ( [name] => 64 ) [fieldsValidate:protected] => Array ( [name] => isCatalogName ) [fieldsRequiredLang:protected] => Array ( ) [fieldsSizeLang:protected] => Array ( [meta_title] => 255 [meta_description] => 512 ) [fieldsValidateLang:protected] => Array ( [description] => isCleanHtml [short_description] => isCleanHtml [meta_title] => isGenericName [meta_description] => isGenericName [meta_keywords] => isGenericName ) [tables:protected] => Array ( ) [image_dir:protected] => /var/www/html/img/m/ [image_format:protected] => jpg [translator:protected] => [def:protected] => Array ( [table] => manufacturer [primary] => id_manufacturer [multilang] => 1 [fields] => Array ( [name] => Array ( [type] => 3 [validate] => isCatalogName [required] => 1 [size] => 64 ) [active] => Array ( [type] => 2 ) [date_add] => Array ( [type] => 5 ) [date_upd] => Array ( [type] => 5 ) [description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [short_description] => Array ( [type] => 6 [lang] => 1 [validate] => isCleanHtml ) [meta_title] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 255 ) [meta_description] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName [size] => 512 ) [meta_keywords] => Array ( [type] => 3 [lang] => 1 [validate] => isGenericName ) ) [classname] => Manufacturer [associations] => Array ( [l] => Array ( [type] => 2 [field] => id_manufacturer [foreign_field] => id_manufacturer ) ) ) [update_fields:protected] => [force_id] => ) 1
BUSQUE INSTALADOR

LIQUIDACION TOTAL ×

 CLEARANCE SALE!
Take advantage of our must-see outing offers.
  Discover the promo >>

OUTDOOR DUAL PIR DETECTOR WITH ANTI-CRAWLING AND ANTI-MASKING ZONE - 30x20 M - 3 ALARM OUTPUTS - POE - OPTEX

Rilevatore a doppio PIR

Product details

  • Outdoor Dual PIR Detector
  • Anti-creep
  • Anti-masking
  • To branch
  • Anti-creep coverage: 3x5 at 2.3m height, 6x9 at 4m height
  • PoE Power Supply
  • Detection coverage 30x20 m
  • Mounting for height 2.3 - 4 m
  • Dimensions 248x102x266 mm
  • Weight: 1.9 Kg

Technical data sheet

Model

 SIP-3020/5-IP-BOX
Detection method passive infrared
Coverage (main area) 30x20 m (100 x 65 ft.)
Coverage (creep zone) 3x 5m (10 x 16ft.) installed at 2.3m (7.6ft.) height, 6 x 9m (20 x 30ft.) installed at 4m (13ft.) height, detection angle adjustable horizontally
Power supply PoE * (IEEE802.3af/at compliant)
Current draw 40mA max., 75mA, 415mA max. with optional heating unit
Mounting height 2.3 to 4m (7.6 to 13ft)
Sensitivity selector Far: SH/H/M/L Near: SH/H/M/L Creep zone: SH/H/M/L
Detection logic selector And/Or
Alarm output (main area) Near area Redwall event code (UDP/TCP) Far area Redwall event Code (UDP/TCP)
Alarm output (creep zone) Redwall event code (UDP/TCP)
Alarm interval period Off/15, 30, 60 sec.
Alarm period approx. 2 sec.
Warm-up period approx. 60 sec.
Operating temperature -25 to 60°C, -40 to +60°C with optional heating unit (-13 to + 140°F, -40 to 140°F with optional heating unit)
If the heater is used, it should be external 22-26V AC (not POE)
IP rating Main unit: IP66
Frame: IP55
Dimensions 248 x 102 x 266 mm (9.8 x 4.0 x 11.4 in.)
Weight 1.9 kg
Supported protocols IPv4, ARP, UDP, TCP, ICMP, HTTP
Function setting Use web browser

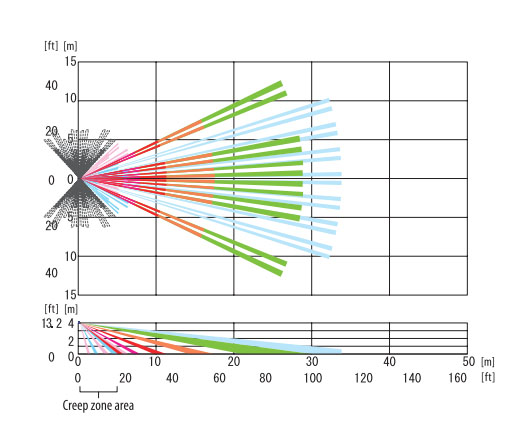

Detection area

Download

Brochure not available
All our products are in conformity with the in force CE normative (read here). To ask for a copy of the certification fill out this form
